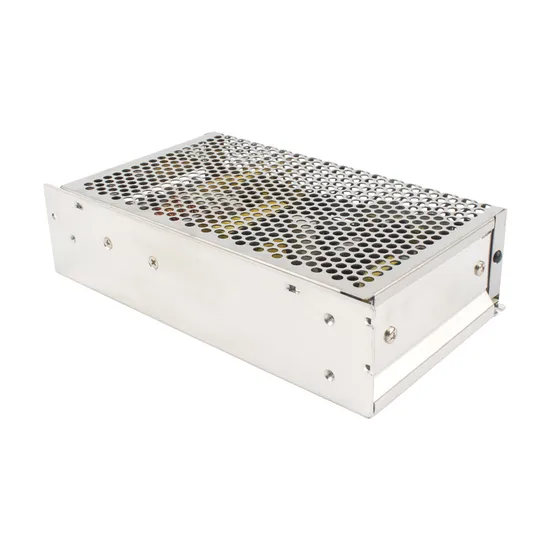

Q-120 Four Way Output DC Regulated Power Supply
Basic Info.
Model NO.
Q-120D
Output Power
101 - 200W
Input Voltage
85~264VAC47-63Hz; 120~370VDC
Connection Mode
Series Switching Power Supply
Starting Mode
Self-excited Switching Power Supply
Voltage Regulating Mode
Width Modulation Type
Power Supplying System
Terminal Power Distribution Equipment
Energy Transmission
Four Way Transmission
Modulation System
PWM
Certification
CE, RoHS, ISO, CCC
Brand
Leyu
Color
Slivery
Dimension
199*110*50mm(L*W*H)
Weight
0.86kg
Protections
Short Circuit / Overload / Over Voltage
Application
LED Lighting
Efficiency
80%
Transport Package
Paper Packing
Specification
199*110*50mm
Trademark
Leyu
Origin
China
HS Code
8504401990
Production Capacity
1000PC/Day
Packaging & Delivery
Package Size
19.90cm * 11.00cm * 5.00cm
Package Gross Weight
0.860kg
Product Description
Product Parameters| SPECIFICATIONS | ||||||||||||
| OUTPUT | ||||||||||||
| Model | Q-120B | Q-120C | Q-120D | |||||||||
| Output number | CH1 | CH2 | CH3 | CH4 | CH1 | CH2 | CH3 | CH4 | CH1 | CH2 | CH3 | CH4 |
| DC Voltage | 5V | 12V | -5V | -12V | 5V | 15V | -5V | -15V | 5V | 12V | 24V | -12V |
| Rated Current | 11A | 4A | 1A | 1A | 10A | 3.5A | 1A | 1A | 8A | 2A | 2A | 1A |
| Current Range | 2-12A | 0.5-5A | 0.2-1A | 0.2-1A | 2-12A | 0.5-5A | 0.2-1A | 0.2-1A | 2-12A | 0.2-5A | 0.2-2A | 0.2-1A |
| Rated Power | 120W | 120W | 120W | 120W | 122.5W | 122.5W | 122.5W | 122.5W | 124W | 124W | 124W | 124W |
| Ripple & Noise | 80mVp-p | 120mVp-p | 80mVp-p | 120mVp-p | 80mVp-p | 150mVp-p | 80mVp-p | 150mVp-p | 80mVp-p | 120mVp-p | 180mVp-p | 120mVp-p |
| Voltage Adj. Range | CH1:-5%, +10% | CH1:-5%, +10% | CH1:-5%, +10% | |||||||||
| Voltage Tolerance | ±2% | ±6% | ±6% | ±6% | ±2% | +10%, -5% | ±6% | +10% ,-5% | ±2% | ±6% | ±6% | ±6% |
| Setup, Rise, Hold Up Time | 200ms, 50ms, 20ms at full load | |||||||||||
| Voltage Range | 88~132VAC/176~264VAC selected by switch 47-63Hz; 240~370VDC | |||||||||||
| AC Current | 2.8A/115V 1.6A/230V | |||||||||||
| Efficiency | 77% | 76% | 80% | |||||||||
| Inrush Current | Cold start 35A | |||||||||||
| Leakage Current | <3.5mA/240VAC | |||||||||||
| Over Load | 105%~135% | |||||||||||
| Protection type: Shut down o/p voltage, re-power on to recover | ||||||||||||
| Over Voltage | CH1:115%~135% | |||||||||||
| Protection type: Shut down o/p voltage, re-power on to recover | ||||||||||||
| Working Temp., Humidity | -10ºC~+60ºC; 20%~90%RH | |||||||||||
| Storage Temp., Humidity | -20ºC~+85ºC; 10%~95%RH | |||||||||||
| Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes | |||||||||||
| Withstand Voltage | I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC | |||||||||||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | |||||||||||
| Safety Standard | Design refer to 1950,TUV EN60950 | |||||||||||
| EMC Standard | Design reefer to EN55022(CISPR22),EN61000-3-2,-3,EN55024,EN61000-4-2,3,4,5,6,8,11; ENV50204 | |||||||||||
| Dimension | 199*110*50mm(L*W*H) | |||||||||||
| Weight | 0.86Kg | |||||||||||
| Packing | 16pcs/14.7Kg/0.95CUFT | |||||||||||
| NOTE | ||||||||||||
| 1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3.Each output can within current range. But total output power can't exceed rated load. 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. | ||||||||||||
