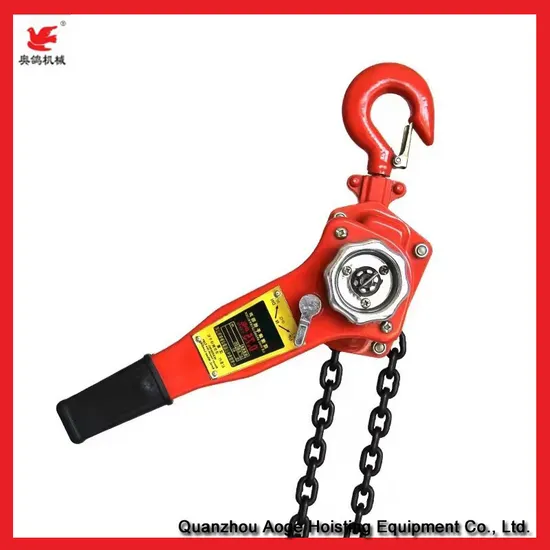

Heavy Duty Construction Hoist Lever Chain Block with Hook

Product Description

Product Description
1)lever hoist capacity range from 0.75ton to 9 ton.
2)Ergonomic handle design so that the hoist is easy to operate,product suitable for all application. 3)Suspension and load hooks are made of alloy steel 35CRMO,heat treated and fitted with heavy duty safety latches,fitting groove and inspection points. 4)Machined chain sprocket and gears provide smoother,more efficient operation. 5)Hook with safety latch securely can rotate freely 360 degrees. 6)Gears are made of 20CRMNTI,material which ensures toughness and better strength. 7)Fitted with high strength grade 80 alloy steel load chain with galvanized finish for corrosion resistance.(comply with EN 818,safety factor4) 8)Load chain marked with T8 marks as per EN 818-7. 9)Heavy duty guide rollers for avoiding slippage of load chain. 10)Nylon pull ring. 11)All hoists tested at 1.5 times of WLL Product Parameters

Model	HSH	AG0025	AG005	AG0075	AG015	AG030	AG060	AG090
Capacity	(kg)	250	500	750	1500	3000	6000	9000
Standaed lift	(m)	1.5
Load chain Number of falls		1	1	1	1	1	2	3
Effort requied to lift max load	(n)	260	260	220	240	330	360	380
Runing testload	(kg)	375	750	1125	2250	4500	9000	13500
Load chain diameter × Number of falls	(mm)	4×12	4×12	5.6×16.7	7.1×21.2	9×27	9×27	9×27
Net weight	(kg)	2.2	3.2	5.3	8.6	15.2	23	43
G.W	(kg)	2.4	3.4	5.6	8.9	15.6	23.5	44.5
PACJING SIZE	(cm)	21×12×11	23×13×12	31.5×16×12	35×18×13	48×20×13.5	48×21.5×17	53×28×25
ADD 1M WEIGHT	(kg/m)	0.346	0.346	0.7	1.1	1.8	3.6	5.4
Dimensions(mm)	a	86	95	115	137	169	238	300
	b	155	178	35	42	48	60	70
	c	170	170	239	259	374	374	374
	d	30	35	35	38	46	59	54
	e	79	87	146	162	187	187	187
	f			91	67	98	98	98
	hmin	245	285	320	360	431	500	635
