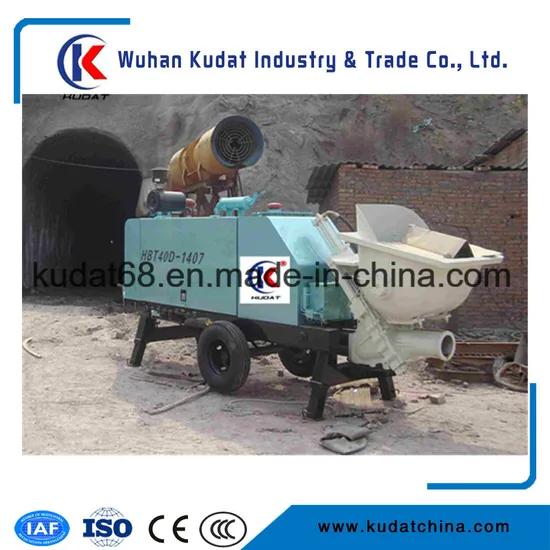

40m3/H Diesel Trailer Concrete Pump Hbt40d

Product Description

Description:
1.Intelligent power control system to regulate the engine speed automatically, for smooth and efficient
operation
2.Plunger pump with constant power, to ensure the efficiency of main engine
3.Good sealing S-valve, installed with floating wear resistant ring
4.High-quality wear resistant alloy components for long service-life
5.High delivery pressure for demand of high-rise and long distance projects
6.Air cooling system, without dependence of external water
7.PLC system to ensure best control performance
8.With re-pumping function to smooth construction of better accessibility
9.Equipped with wired remote controller, easy to operate

Applications:
1) Conveying floor heating lightweight foamed cement, mortar, fine aggregate concrete
2) Conveying refractory and insulation materials
3) Conveying greening soil in ecological environment construction
4) Conveying all kinds of engineering construction in the plain concrete, fiber concrete
5) Pressure grouting of foundation pile


Competitive Advantage:
1. Using Bosch Rexroth of Germany to supply hydraulic components. Its high reliability and longer
economic life will enhance the overall quality of the machine as a whole.
2. Adopting double pumps double returning inflow open hydraulic pressure system, so that oil out
pumping and direction switching are operating independently, rendering the system simpler and more
reliable.
3.Using returned oil filter technology to prevent alien Objects from entering the hydraulic circuit, further
Improving the reliability of the system.
4.Using the anti-wear hydraulic oil specially made by Esso of US enhacing durability of the machine
5.S Valve and gate valve pumps are all equipped with Pressure regulating device which is quicker, more
reliable and oil does not leak out.
6. The S pipe is mounted in whole with high grade manganese steel and the fractioning surface is
welded up with anti-wear materials and thus, possessing and being wear resistant. The smooth and non accumulating
design of the interior of the pipe gives a smooth concrete flow hence further improving the efficiency.
7.The high wearing part and cutting ring of the so called "eye-glass" plate of the S-valve is made of wear resistant alloy to increase its economic life.
8.The stirring and mixing system use a specially designed double enclosed structure, further improving
sealing of the system and giving a more effective protection of the motor.
9. Humanized and artificially intelligent electronic Control system makes operation simple
10. Using a central programmable control unit (PLC) with various preinstalled programs for various
auto protection modes, which ensures and strengthens the reliability of the system.
11.Fully enclosed electrical control box enables the Machine to function normally in adverse environ-Ments.
12. Key electrical components have been sourced from world famous brands such as Scheneider of
France, Mitsubishi and Panasonic of Japan, which guarantees product reliability and a low failure rate.

Specification	HBT40D-1407
Valve	slide Valve
Max . concrete pump pressure	7.4Mpa
Max. thero. Concrete delivery	36 m3/ h
Max. vertical delivery	110 M
Max. horizontal delivery	500 M
Max. aggregate diameter	50(150A)
Diameter of delivery cylinder ×stroke	195×1400mm
Slump	8-23cm
Oil cylinder ×stroke	90mm×1400mm
Hopper capacity/ material feeding height	0.25/1380 m3/mm
Engine	Diesel
Engine Model	LOVOL 1004-4 (Perkins Technology)
Cylinder Number	4
Model Information	Four-Stroke, Liquid Cooled,Vertical Inline, DirectInjection, Dry Liner
Induction System	Naturally Aspirated
Bore×Stroke (mm)	100×127
Displacement (L)	3.99
Compression Ratio	16.5:1
Firing Order	1-3-4-2
Rated power/speed(kW/rpm)	58/2200
Max.Torque/speed(Nm/rpm)	260/(1400-1600)
Noise dB(A)	96
Emission	Tier1
Total quality	2600kg
Overall dimension	5060×1200×1760mm
Trailer speed	8km/hour
