Small Single-Row Corn Harvester Handheld Gasoline/Diesel Engine Corn Harvesting Machine

Product Description

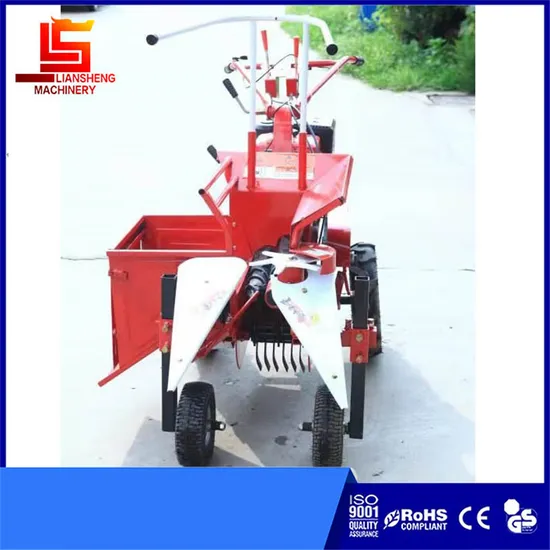

Small single-row corn harvester, hand-push diesel gasoline corn harvester
Corn harvesting straw crushing dual-purpose machine
This machine can complete one row of corn harvesting and straw crushing at a time. Equipped with bucket when it is full can be automatically unloaded.
The height of stubble can be adjusted, the tensioning clutch works safely, and the turning radius is small.
It can harvest two acres of corn per hour and crush the straw at the same time.
1: This machine is compact and adaptable, and is widely used in small corn fields that cannot be passed by large corn harvesters such as hills and mountains.
2: Complete functions, picking corn, crushing straw and returning to the field, etc., almost the same function as the large-scale corn harvester.
3: It is easy to install and disassemble.
4: Flexible operation, adjustable stubble height and small turning radius.

Model	4YZ-1(diesel)	4YZ-1(gasoline)	4YD-1A(walking tractor)
Engine model	188F diesel engine	190 gasoline engine	Walking tractor
Power	7.5kw	8.2kw	10-15hp
Cutter shaft speed	3200r/min	3200r/min	3000r/min
Line space	500-700mm	500-700mm	500-700mm
Start method	Electric start	Electric start	/
N/W	240 kg	200kg	110kg
Rows	1	1	1
Dimension	2100*970*1100mm	2100*970*1100mm	1200*850*1100mm
Efficiency	2.5mu/hour	2.5mu/hour	2.5mu/hour
Stubble height	20-80mm	20-80mm	20-80mm
Cutting length	10-80mm	10-80mm	10-80mm
Blade set number	12	12	12
