Jingwei Brand Hot Sale Auto Coner Winder Vcro Plus-I Linked with Multi-Sets of Spinning Frame

Product Description

24h Online Customer Service

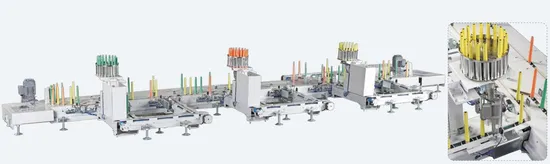

Hot Sale Jingwei Brand Auto Winder Vcro Plus-I Linked with Multi-Sets of Spinning Frame

Product Description

Product Description The domestic self-developed new generation of the multi-link auto-winder,It can be connected with many spinning frames of different varieties.
Product Features
★It can be configured with 4000 spindles and connected in various ways:arranged side-by-side or interspersed with the spinning frame to meet the requirements of count yarn from 6 to the highest. ★ This equipment is energy-saving, labor-saving, space-saving, and can greatly reduce the customer's investment costs, with a high rate of return on investment.
★ The quality of the product is excellent, and the operation is more convenient and easier. The spinning quality tracking system configured is able to quickly eliminate spinning problems and ensure quality. ★Bobbins are automatically transported in whole process from spinning bobbin yarn doffing -bobbin treatment-winding-to empty bobbin return to save process.

MAIN SPECIFICATIONS
Machine type	VCRO PLUS	VCRO PLUS-double magazine	VCRO PLUS -I Auto-winder multi-linked with spinning frame
Spindles	6-72 spindles	6-72 spindles	6-72 spindle and increament in 2 spindles
Type	Spindle, single sided arrangement, left hand or right hand machine
Application	Cotton , wool, linen,synthetic fiber or blended, or plied yarn Count of yarn processed Ne6 to the highest
Count of yarn	processed Ne6 to the highest
Working negative pressure	speed adjusted by inverter
Drum driven	driven by DC brushless motor
Anti-pattering	To achieve through full control of motor speed
Package holder	back bow style
pattern of bobbin	processing single plug, double head picking single/doublr plug,	double/triple head picking	Single/double head picking
Tube dimension length	180-230mm, diameter32-43mm
Winding speed	400-2200m/min,stepless speed regulation
Magazine	single magazine	double magazine
Jointing type	Mesdan798Q Jointair splicer, Aquasplicer
Yarn clearer type	USTER/LOEPFE Electronic yarn clearer
Yarn head finding	50 heads/min
Bobbins storage	2 bobbins
Package storage	4 packages
Bobbin delivery speed	25m/min
Channels quantity	3 for bobbin delivery and 2 for return		3 for bobbin delivery and 2 for return
Power installed	35.95KW(72spindles)	38.05kW(72spindles)	35.35kW(72spindles)
Cone conicity	3°30',	4°20',	5°57'
Overall dimension	31080x1680x2780(72spindles)	30890x2580x2780(72spindles)	26480x6154x2780(60spindles)
