Self Propelled Cutter Suction Dredger/Amphibious Type Multipurpose Dredger for Both Glasses of Water and Land Durable Dredging Excavator

Product Description

Self Propelled Cutter Suction Dredger/Amphibious Type Multipurpose Dredger for Both Glasses of Water and Land Durable Dredging Excavator

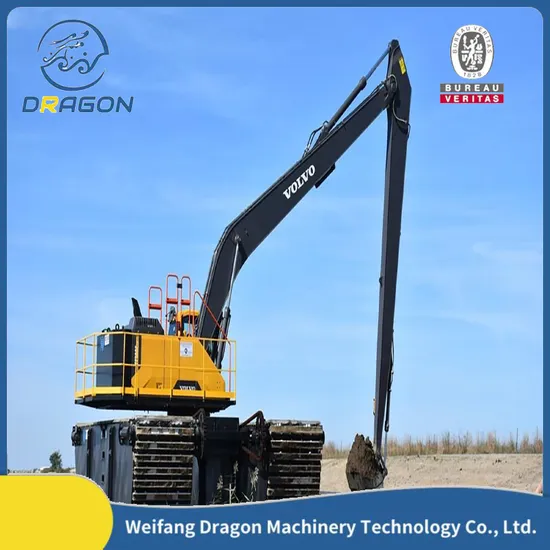

DRAGON amphibious excavator is one multifunctional excavator which is suitable for working in swamp, shallow water and land area. This kind of excavator is widely used for dredging work in rivers and lakes, resources and environment protection in wetlands and coastal areas.
The track shoe and floating pontoon are strengthened specially to enable the amphibious excavator work in hard environment.
There is one replaceable joint unit between the excavator and floating pontoon which can make it equip with different brands of excavators.
To increase the stability of the amphibious excavator, two spuds can be installed on the floating pontoons.
The amphibious excavator can work with differend attachments which enlarges the working range.
Specification

Model	DGAME15	DGAME20	DGAME26	DGAME30
Weight	15000 kg	20000 kg	26000 kg	30000 kg
Bucket Capacity	0.25 m3	0.4 m3	0.9 m3	0.9 m3
Installed Power	56.5 kw	89.3 kw	114 kw	114 kw
Walking Speed	3.8 km/h	3.1 km/h	3.2 km/h	3.1 km/h
Rotating Speed	11 rpm	11 rpm	11 rpm	11 rpm
Grade Ability	30 o	30 o	30 o	30 o
Max Digging Depth	5870 mm	7360 mm	5700 mm	7360 mm
Max Digging Radius	8990 mm	10810 mm	9920 mm	10810 mm
Pontoon Dimension	6640 x 1300 x 1420 mm	7170 x 1490 x 1700 mm	8080 x 1490 x 1700 mm	8290x 1800 x 1650 mm

During manufacturing, our quality control department keep high frequency quality check in every details.
Manufacturing Ability
Our factory is equipped with all kinds necessary manufacturing facility, including CNC cutting machine, welding robot, digital controlled lathes, machining center, milling machine, grinding machine, punching machine, and surface handling line. With all these facility, we can complete all the kinds of machining work, plate welding, finishing and painting.
After-sale Service
DRAGON customers rely on the unrivalled level of commitment that is offered to them through dedicated and comprehensive life-cycle support services. These help to maximise the equipment's availability and the return on investment, and therefore reduces the total cost of ownership. The cycle can be entered at any of its integrated stages.
DRAGON supplies high-quality and up-to-date training services for the site operation people to ensure that crews operate the dredger in a highly skilled and efficient manner to achieve optimum levels of productivity. DRAGON life-cycle support also allows operators to maintain the durability and reliability of their systems through a range of specialist services.
DRAGON team wants to be prepared for every eventuality and provide limitless logistical support to its customers.This includes attention to system availability with the immediate supply of spare parts and repair of components.With this approach, the complete DRAGON global network of qualified service technicians,sourcing officers and local service offices is available to all customers.
Other Products
Dragon products scope covers all kinds of dredger, aquqtic weed harvester, amphibious excavator, workboat, backhoe barge, jack-up platform.
FAQ
Q1: Do you have your own factory?
A1: Yes, our factory is Weifang Dragon Machinery Technology Co.,Ltd., it is specialized in manufacturing cutter suction dredgers, suction dredgers, amphibious dredgers, amphibious excavators, multi-purpose work boats, modular floating pontoons, aquatic weed harvesters and other machineries.
Q2: Can we visit your factory?
A2: Sure, we sincerely welcome you to visit and check our factory, we would like to show you around our workshop.
We will pick you up from Jinan/Qingdao airport or Qingzhou Railway Station.
Q3: Do you also supply the accessories?
A3: Yes, we have cooperated companies to supply you the accessories and other spare parts.
Q4: Do you have after sale service center overseas?
A4: Yes, we have after sale service center in Nigeria which will cover Africa area and in Bangladesh which will cover Southasia and mideast area.
Q5: Can you costomize the equipment according to client's inquiry?
A5: Yes, we have professional design team which can make customized designs regarding as clients' requests.
Q6: Will you send engineers to install and debug the machines in client's site?
A6: Yes, we will send 2 engineers to client's site for installation and commissioning of the machine.
Q7:Will you supply training to our engineers?
A7:Yes, We can supply detailed training to the staff from the clients after helping you installing the machine.
Q8:How can we follow up the production?
A8:During the manufacturing, the client can appoint one engineer to stay in our factory and even work with our engineers.Or appoint one Third Party to do staged inspections.
Q9:What payment term can you accept?
A9:Generally, T/T is prioritized, of course L/C at sight is also accepted. For reputable client, we even can supply credit for the purchasing.
Q10:How long warranty will you supply.
A10:Generally we will supply 12-months warranty starts from the date of completing commissioning at site.
