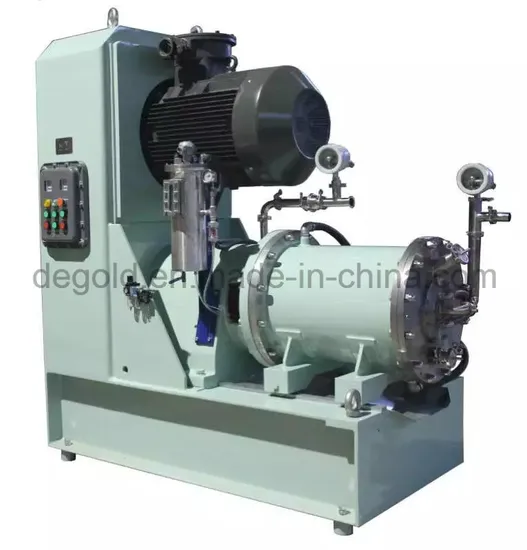

10 Liters Pin Type Horizontal Bead Mill for Wet Grinding
| US$1,000.00-100,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
ZM10SB3411-K
Object
Milling Cutter
Function
Wet Grinding for Particle Size Reduce
Bead Mill Type
Disc Type, Turbo Type, Pin Type
Ex Proof Type
Ex Proof and Non Ex Proof
Cooling Water Jacket
Yes
Suitable Grinding Medium
Zirconium/Zirconia/Zircon Beads
Warranty
12 Months
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Transport Package
Fumigation Free Wooden Box
Specification
CE, ISO9001: 2008, SGS
Trademark
DEGOLD
Origin
Chongqing, China
HS Code
847982
Production Capacity
300 Sets/Year
Product Description
DEGOLD bead mills and sand mills are suitable for continuous wet grinding of solids in liquid materials to reduce particle size. We produce following five series.
| "Series ZM" horizontal bead mills: | grinding discs type bead mills |
| "Series ZM-X" horizontal bead mills: | |
| "Series ZM-E" horizontal bead mills: | |
| "Series ZM-K" horizontal bead mills: | pin type bead mills |
| "Series ZM-T" horizontal bead mills: | turbo type bead mills |
Different materials inside the horizontal bead mills can be choosen, such as SS304, hard alloy, mold steel, polyurethane, tungsten carbide, ceramic etc.
Applications:
Technical Data:
ZM Series:
| ZM0.3 | ZM1.4 | ZM5 | ZM15 | ZM20 | ZM30 | ZM50 | ||
| Effective grinding chamber volume (L) | 0.3 | 1.4 | 5 | 15 | 20 | 30 | 50 | |
| Main motor power (kW) | 0.75 | 2.2 | 7.5 | 15 | 18.5 | 22 | 30 | |
| Grinding shaft rotary speed (r/min) | 0~1500 | 0~2800 | 1650 | 1200 | 1200 | 1120 | 900 | |
| Adjustable range of materials flow (L/min) | 0~1 | 0~2 | 0~2 | 0~10 | 0~10 | 0~60 | ||
| Max. cooling water consumption (t/h) | 0.5 | 1 | 1 | 2 | 2 | 2.5 | ||
| Estimated productivity (kg/h) | 2~20 | 12~120 | 30~300 | 40~400 | 50~600 | 100~1000 | ||
| Dimension (mm) | L | 640 | 650 | 1250 | 1560 | 1600 | 1860 | 2100 |
| W | 410 | 570 | 900 | 1050 | 1050 | 1100 | 1150 | |
| H | 485 | 885 | 1250 | 1550 | 1550 | 1550 | 1650 | |
| Net weight (kg) | 50 | 500 | 700 | 800 | 980 | 1100 | 1300 | |
| Note: Technical data are different if there are some customized constructions. | ||||||||
ZM-X Series:
| Model | ZM5-X | ZM15-X | ZM20-X | ZM30-X | ZM50-X | ZM100-X | ZM200-X | |
| Effective grinding chamber volume (L) | 5 | 15 | 20 | 30 | 50 | 100 | 200 | |
| Main motor power (kW) | 11 | 18.5 | 22 | 30 | 37/45 | 45/55 | 55/75 | |
| Grinding shaft rotary speed (r/min) | 1650 | 1200 | 1200 | 1120 | 900 | 700 | 550 | |
| Adjustable range of materials flow (L/min) | 0~2 | 0~2 | 0~10 | 0~10 | 0~60 | 0~60 | 0~150 | |
| Max. cooling water consumption (t/h) | 1 | 1 | 2 | 2 | 2.5 | 2.5 | 3~4 | |
| Estimated productivity (kg/h) | 15~150 | 40~400 | 50~500 | 60~800 | 150~1500 | 150~1500 | 200~2000 | |
| Dimension (mm) | Length | 1250 | 1560 | 1670 | 1760 | 1970 | 2175 | 2150 |
| Width | 900 | 1050 | 1050 | 1050 | 1150 | 1200 | 1200 | |
| Height | 1250 | 1550 | 1565 | 1585 | 1650 | 1880 | 2150 | |
| Net weight (kg) | 700 | 800 | 1000 | 1150 | 1350 | 2000 | 2500 | |
| Note: Technical data are different if there are some customized constructions. | ||||||||
ZM-E Series:
| Type | ZM20-E | ZM50-E | ZM100-E | ZM200-E | ZM300-E | ZM500-E | ZM1000-E |
| Grinding chamber volume (l) | 20 | 50 | 100 | 200 | 300 | 500 | 1000 |
| Batch size (l) | 100-500 | 200-1000 | 500-2500 | 1000-10000 | >2000 | | |
| Drive (kW) | 18.5/22 | 37/45 | 55/75 | 75/90 | 90/110 | 160/200 | 315 |
| Grinding shaft rotary speed (r/min) | 1200 | 800 | 650 | 500 | 460 | 350 | 340 |
| Length (mm) | 1670 | 1970 | 2750 | 2950 | 3450 | 3350 | 6650 |
| Width (mm) | 1050 | 1150 | 1200 | 1200 | 1300 | 1500 | 1450 |
| Height (mm) | 1565 | 2000 | 2200 | 2200 | 2250 | 2700 | 2850 |
| Net weight (kg) | 750 | 1500 | 3500 | 3700 | 4700 | 8000 | 12000 |
| Note: Technical data are different if there are some customized constructions. | |||||||
| Type | ZM10-K | ZM25-K | ZM60-K | ZM150-K |
| Grinding chamber volume (l) | 10 | 25 | 60 | 150 |
| Batch size (l) | 500 | 2000 | >2000 | >4000 |
| Drive (kW) | 18.5-22 | 37-45 | 75-90 | 160-250 |
| Length (mm) | 1670 | 2050 | 2500 | 3000 |
| Extended length (mm) | 2100 | 2700 | 3280 | 4100 |
| Width (mm) | 900 | 1000 | 1195 | 1220 |
| Height (mm) | 1500 | 1600 | 1900 | 2500 |
| Weight (kg) | 1250 | 2250 | 3600 | 6700 |
| Note: Technical data are different if there are some customized constructions. | ||||
ZM-T Series:
| Type | ZM8-T | ZM18-T | ZM25-T | ZM60-T |
| Grinding chamber volume (l) | 8 | 18 | 25 | 60 |
| Batch size (l) | 100-1500 | 300-2500 | 400-3000 | 500-6000 |
| Drive (kW) | 18.5-22 | 37-45 | 45-55 | 75-90 |
| Length (mm) | 1400 | 1800 | 1900 | 2300 |
| Width (mm) | 800 | 1050 | 1050 | 1250 |
| Height (mm) | 1700 | 1900 | 1900 | 2150 |
| Weight (kg) | 900 | 1800 | 2000 | 3600 |
| Note: Technical data are different if there are some customized constructions. | ||||
Production Line:
Exhibition:
