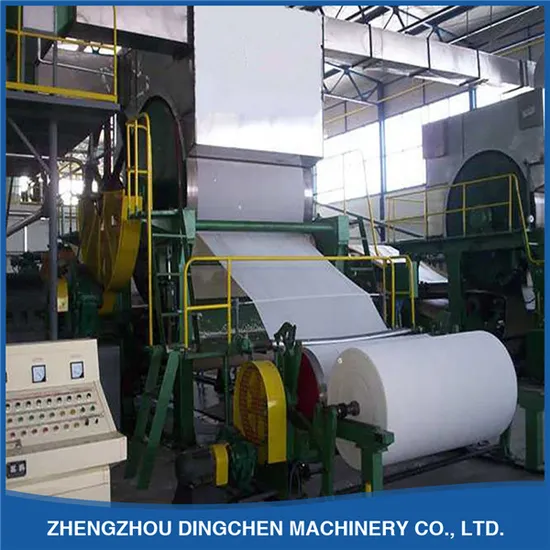

(DC-1575mm) Small Model Hand Tissue Making Machine with 3 T/D Tissue Paper Making Machine for Waste Paper Recycling

Product Description

(DC-1575mm) Small Model Hand Tissue Making Machine with 3 T/D | Tissue paper making machine for waste paper recycling
I. Technical parameters

Output paper	tissue paper
Raw material	recycled paper
Capacity	3 tons per day
Net paper width	1600mm
Paper weight	14-19g/m2
Design working speed	150m/min
Working speed	50-110m/min
Rail gauge	2400mm
Width of copper cylinder	1950mm
Drive way	A/C frequency converter speed adjusting, section drive.

II. Main structure with spec
1. Cylinder mold part
1500mm×1950mm stainless steel cylinder mold 1 pc, 400mm×1450mm couch roll 1 pc, rubber hardness 38ºC±2.

2. Dryer section part
2000mm×1950mm alloy dryer cylinder 1 pc , 400mm×1950mm touch roll 1 pc, rubber hardness 90ºC±2, double layer exhaust hood, pneumatic loading device.

3. Winding part
700mm×1950mm winding cylinder 1 pc, 250 speed reducer 1 set

4. Rewinding, cutting and finishing part
1575mm rewinding machine with embossing & perforating 1 set
Tissue paper cutting machine 1 set
Plastic bags sealing machine 1 set

No	Name	Quantity
1	1575mmToilet papermachine	1 se t
2	Dryer exhaust hood(double layer)	1 set
3	φ850 axial-flow fan	1 set
4	Cylinder pressure forming machine	1 set
5	Model 15 Roots vacuum pump	1 set
6	Suction box	2 sets
7	3m 3 High consistency hydrapulper	1 set
8	1.8m 2 High frequency vibrating screen	1 set
9	35m 3 Bleacher	2 sets
10	φ700 Impeller	4 sets
11	380 Double-disc refining mill	1
12	0.9 m 2 centrifugal screen	1
13	606 Desander 5 pcs	1 group
14	Double-phase flow pump-100	6 sets
15	1575mm Rewinding&perforting machine	1 set
16	Paper cutter	1 set
17	Air pump box	1 set
18	Frequency conversion controller	1 set
19	Whole station	1 set
20	1 T Boiler	1 set

Company Information Zhengzhou Dingchen Machinery Co., Ltd is a professional paper machine manufacturer integrated with scientific research, design, manufacturing, installation and commission. Focused on R&D and production, the company has over 30 years' experience in paper machinery and pulping equipment production. The company has a professional technical team and advanced production equipment, with over 150 employees and covering an area of 45, 000 square meters.
The company's leading products include various types of high speed and capacity test liner paper, kraft paper, carton box paper machine, cultural paper machine and tissue paper machine, pulping equipment and accessories, which are widely used in the production of packaging paper for various items, printing paper, writing paper, high grade household paper, napkin paper and facial tissue paper etc.
Based on high quality products and service, the company has been recognized by overseas customers and markets, its products has been exported to Pakistan, Uzbekistan, Turkmenistan, Bangladesh, Cambodia, Bhutan, Israel, Georgia, Armenia, Afghanistan, Egypt, Nigeria, Kenya,
Burkina Faso, Sierra Leone, Cameroon, Angola, Algeria, El Salvador, Brazil, Paraguay, Colombia, Guatemala, Fiji, Ukraine and Russia etc.
