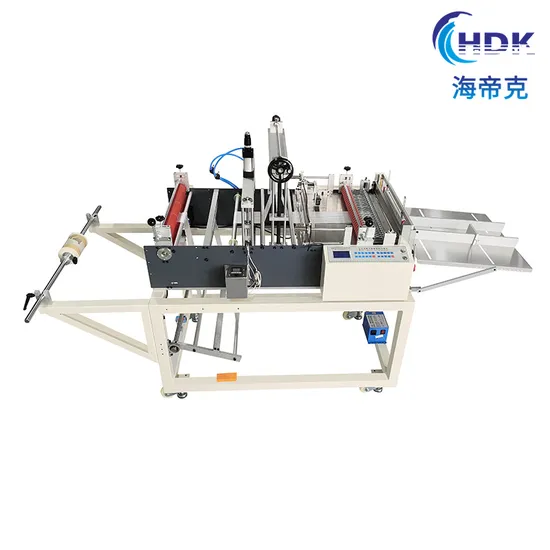

600mm Fully Automatic Roll to Sheet Plastic Bag Heat Sealing Cold Cutting Machine

Product Description

Products Description 600mm Fully Automatic Roll To Sheet Plastic Bag Heat Sealing Cold Cutting Machine

Product name	Heat Sealing Cold Cutting Bag Making Machine
Product model	HDK-600Z-ZD
Power supply	110/220V 50/60Hz
Cutting length(mm)	0.1-99999.9mm
Cutting speed	30-120pcs/min
Feeding width	1-600mm
Cutting precision	0.1mm
Weight	184kg
Size (L×W×H)	950*890*1350(mm)
Feeding motor	Stepper motor
Cutter motor	AC motor
Cutter material	High-speed steel
Heat sealing method	Pneumatic

Features: 1.Controlled by microcomputer, the length, speed and quantity can be adjusted.
2.The overall structural design is reasonable and durable.
3.The operation is simple, and one machine equals to 3 to 5 works instead of manual work.
4.The application scope is wide, and all kinds of materials and other roll materials can be cut.
5.The blade with inlaid steel has higher hardness, wear resistance and long service life.
6.The heat sealing device can be disassembled and replaced, the temperature can be adjusted, suitable for sealing various materials and thickness materials. Product principle: 1. Automatic group accumulation and total cumulative count
2. Batch pause and delay time can be set
3. There are various manual operations for debugging
4. Can automatically cut all kinds of strips, sheets, plastic tubes and other materials
5. High-speed feeding, controlled by microcomputer program with an accuracy of 0.1mm
6. High-speed stepping motor accurately controls cutting length and speed
7. Cutting time protection; total setting; sub-setting; adjustable timeout
8. The cutter speed is adjustable, all Chinese LCD display, export or foreign companies can be customized English version
9. The length and speed are arbitrarily adjustable, fully automatic cutting and automatic feeding, completely liberating labor
10.LCD large screen intuitive Chinese display, simple and convenient operation; using special mechanical structure and special
tools,With special software control, it solves the problem of uneven cutting in other manufacturers, reaching the level of the
slit and the length
11. Fast feeding speed, high cutting force, high cutting efficiency, stable performance, cutting all kinds of hard and thick
materials, high cutting precision and straight cut
12. Add unwinding motor and induction photoelectric, which can realize synchronous unwinding, solve the problem of slow feeding
speed and poor precision of heavy coils. Material Application It is suitable for cutting various roll materials such as PE film, roll film, PVC film, PET film, OPP film, PP film, heat shrinkable film, anti-static film, printing and packaging film. Product packaging Company Profile Dongguan Haidike Automation Equipment Co., Ltd. is located in Dongguan, the world's factory. It is a high-tech enterprise
