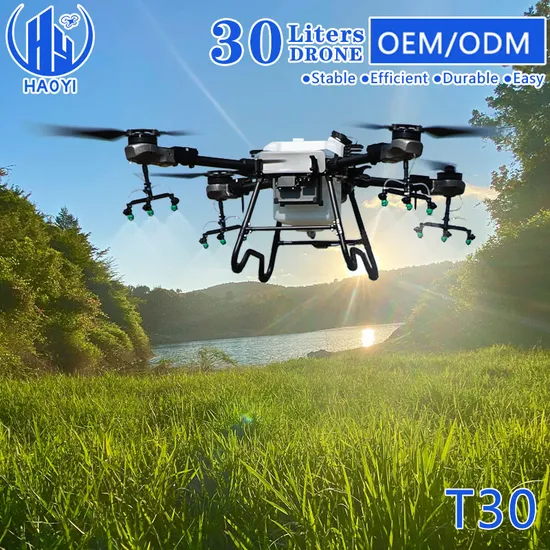

30L Crop Sprayer Drone with Spreader

Product Description

Product Parameters
HIGH COST PERFORMANCE - PLANT PROTECTION SOLUTION
·High Efficiency ·Easy to operate ·High Quality ·Stable
·All-aviation aluminum main frame, light weight, high strength, impact resistance.
·Module-level IP67 protection, no fear of water, dust. Corrosion resistance.
·It can be applied to multi-scene crop drug spraying, sowing and spreading fertilizer. ·Easy to fold, can be installed in common agricultural vehicles, easy to transfer.
·Modular design, most parts can be replaced by themselves.
HTU T30 Product Parameters

Basic Parameters			Flight Parameters
Outline dimension	2515*1650*788mm(Unfoldable)		Hovering time	>20min(No load)
	1040*1010*788mm(Foldable)			>8min(Full load)
Effective spray (depending on the crop)	6~8m		Maximum flight speed	8m/s(GPS mode)
Whole machine weight (including battery)	40.6kg		Job height	1.5~3m
Maximum effective takeoff weight (near sea level)	77.8kg		Positioning accuracy (good GNSS signal, RTK enabled)	Horizontal ± 10cm Vertical ± 10cm
Battery	30000mAh, 51.8V		Avoidance perception range	1~40m Avoidance front and rear according to the flight direction
Spraying Parameters			Sowing Parameters
Medicine box capacity	30L		Material box capacity	45L
Nozzle type	High pressure Fan nozzle Support switching centrifugal nozzle		Feeding method	Roller quantification
Nozzle model	11015VS		Bulk material method	High pressure air
Number of nozzles	12		Feeding speed	50L/min
Maximum flow rate	8.1L/min		Broadcasting	5~7m
Spray	6~8m

Product Description
Spraying

Equipped with 30L oversized medicine box ·The operating efficiency is increased to 15 hectares/hour. ·Equipped with no manual pressure relief valve, automatic exhaust, equipped with pressure nozzle, liquid medicine does not drift, can support centrifugal nozzle, powder does not block. ·The full-range continuous level gauge shows the true liquid level.

·120ha/day, 170 times more artificial ·Safer without contact ·Uniform spraying,Provincial medicine ·Disinfection in isolation area

·0.7ha/day ·Pesticide injury ·Re-spray, spray leakage ·Manual operation in isolation area is easy to be infected

Spreading

Equipped with 45L bucket, large load ·8m sowing width, the Air Spray is more uniform, does not hurt the seeds, does not hurt the machine. ·Full anti-corrosion, washable, no blockage. ·Measuring material weight, real time, anti-overweight.

Modular Design
·Full aviation aluminum main frame, reduce weight while high strength, impact resistance. ·Core components closed treatment, avoid dust entry, resistant to liquid fertilizer corrosion.
·High toughness, foldable, three-layer filter
·Provides multiple modes of operation, including fully autonomous, AB points, and manual operations.
·A variety of enclosure methods: Handheld mapping device, airplane dot, Map dot.
·High-bright screen remote control, you can see clearly under the scorching sun, 6-8 hours long battery life.
·Fully automatic generation of sweeping routes to prevent leakage.
·Equipped with searchlights and help lights, it can also operate safely at night.
·Night navigation: Front and rear 720P HIGH definition FPV, rear FPV can be flipped down to view the ground.
