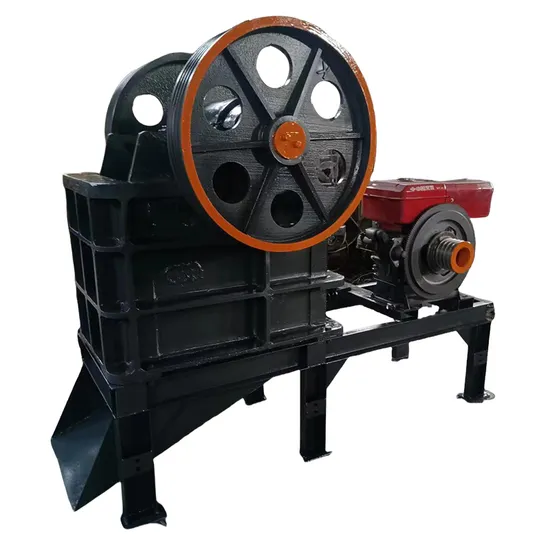

High Quality 250*400 Diesel Enginee Jaw Crusher

Product Description

Product Description Jaw Crusher The jaw crusher is driven by an electric motor with a belt and pulley, which makes the movable jaw move up and down through the eccentric shaft. When the movable jaw descends, the angle between the static jaw and the movable jaw becomes smaller, and the material is crushed to achieve the crushing purpose; when the movable jaw rises, the angle between the fixed jaw and the movable jaw becomes larger, and the movable jaw plate leaves the fixed jaw plate under the action of the pull rod and spring. At this time, the crushed material is discharged from the lower opening of the crushing chamber.
Product Specification

Model	Feed Inlet Size (mm)	Max Feed Size (mm)	Discharge Size (mm)	Capacity (t/h)	Rotating Speed (r/min)	Power (Kw)
PE150*250	150*250	125	10-40	1-3	250	5.5
PE200*300	200*300	180	15-50	2-6	260	7.5
PE200*350	200*350	180	18-70	3-10	260	11
PE250*400	250*400	210	20-60	5-20	300	15

Exhibition
Our Service 1. Starting by running the mineral beneficiation experiment. To provide our clients with the best solution accordingly;2. Besides supply the flowchart design & equipment, we also provide the infrastructure design; Electrical & pipeline system design, etc. To help our clients complete the design of the whole plant;
3. After the installation, debugging of the equipment, the official production will also be guiding by our experienced engineers on site, to guarantee the output minerals perfectly meet your demands.
FAQ Q: Are you a manufacturer or trading company?
A: We are a professional mineral Equipment manufacturer for 20 years.
Q: Why buy from us?
A: 1. High quality and most competitive price-----We are professional in mineral equipment.
2. The best delivery----Goods will be shipped out within 7-30 days based on order quantities.
3. Best service----Answering e-mail&messages and solving questions timely. deliver and update information on time. Long-time business cooperation and friendship based on trust, good quality and service etc.
Q:How is the quality if your products? A: Our product is carefully manufactured according to the international standard, we have patents and passed ISO9001:2008,CE and SGS our lab and large crusher, vibrating screen, ball mill, gold washing machine, shaking table, spiral chute, flotation cell, magnetic machine etc. Q:How to start an order? A: (1) Send inquiry, and provide your requirements, capacity, raw material, feed size, output size and so on. (2) We provide free design drawings and a precise quotation for you.
(3) Detail discussion and negotiation, you can also provide us the materials, we will test for you. (4) Confirm the final PI and discussed details.
(5) Production will be arranged if we received your deposit. (6) Shipment will be arranged after you checked the trial assemble photos and paid the balance. (7) You received goods and install it, our team provide complete installation support.
