Factory Supply Professional Pellets Parts Customized Ring Die for Rice Husk Pellet Mill

Product Description

Factory Supply Professional Pellets Parts Customized Ring Die for Rice Husk Pellet Mill

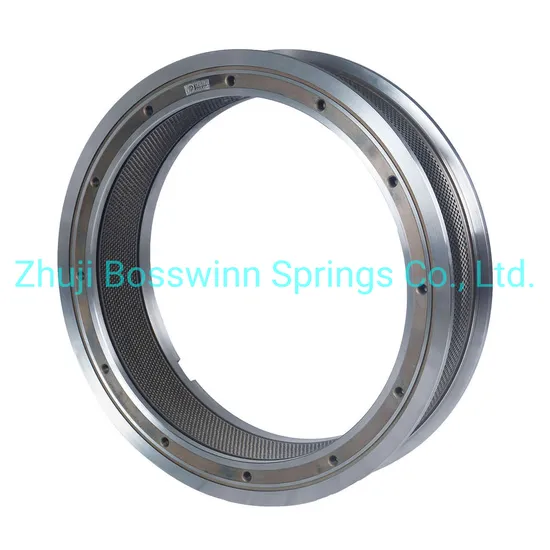

1.Introduction of Ring die
Ring die is one of the core parts of feed and biomass pellet mills. The quality of ring die is related to the safe and smooth operation of feed production, which is directly related to the appearance and intrinsic quality of feed, and relates to the efficiency of production and energy consumption, which is an important link in the production of feed enterprises.
2.Suitable type of granulator
It is suitable for poultry feed granulator, aquatic feed granulator, cattle and sheep feed granulator, etc.
It is suitable for biomass granulator: sawdust granulator, straw granulator, alfalfa granulator, etc.
It is suitable for organic fertilizer granulator, etc.
3.Specification of ring die: 1.Material:high quality X46cr13 Stainless Steel.
2.Machining aperture:0.8mm up to 18mm.
3.Outer diameter:300mm up to 1200mm.
4.Inner diameter: 200mm up to 900mm.
5.Surface hardness:HRC 52-56.
6.Ring die wall thickness: 15mm up to 100mm.
7.Compression ratio: according to user demands. 4.Main Manufacturing Process of Ring die 1)Forging and lathe: Extremely precise forging and CNC lathe processing ensure the quality of materials and ring die size accuracy, smoothing surface. 2)Die hole processing: Advanced special high-speed deep-hole drilling machine and drilling software are used for die hole processing. Mould hole position accuracy is high, die hole smoothness is high, ensuring granulation output and quality; Guarantee the quality and service life of the die. 3) Horn hole Processing High Precision CNC Machining Center Precision, high precision processing, fast and convenient, high consistency of ring mode horn mouth, good smoothness. The feed is discharged smoothly, the particle length is uniform, and the power consumption is reduced. 4)Vacuum quenching Mould deformation is small, no oxide layer, maximized the hole cleanliness, uniform hardness, high consistency, stable performance. 5.Specification parameters of feed mills ring die: 1).Material:Quality chromium Steel
2).Machining aperture:0.8mm up to 18mm
3).Outer diameter of workpiece:300mm up to 1200mm
4).Inner diameter of workpiece:200mm up to 900mm
5).Surface hardness:HRC 52-56
6).Ring die wall thickness:15mm up to 100mm
7).Compression ratio:according to user demand
6.Compression Ratio of Ring Die Generally speaking, the higher the compression ratio is, the greater the density of the finished product particles. But this does not mean that the higher the compression ratio is, the better the quality of the particles. The calculation of the compression ratio should be based on the raw materials and feed varieties and equipment technology. Buyers can customize dies with different aperture and compression ratio according to different conditions and requirements. 7.Aperture Classification Table

Feed Varieties	Hole Diameter	Compression Ratio
Poultry&livestock feed	Φ2.0-Φ4.5	1:9-1:20
Shrimp Feed	Φ0.8-Φ2.0	1:20-1:35
Fish feed	Φ1.5-Φ5.0	1:10-1:25
Crab feed	Φ1.5-Φ5.0	1:15-1:26
Biomass and Fertilizer	Φ5.0-Φ18.0	1:4-1:10
Cattle and sheep feed	Φ4.5-Φ10.0	1:6-1:12
Feline feed	Φ1.6-Φ3.5	/

8.Production Design of Ring Die(Small aperture)

Specification Type	Holes Diamter	Working Width	Designed Output
IDAH 530F	0.8	193	1.0t-1.5t/h
FAMSUM 600		170	0.8t-1.2t/h
ANDRITZ 520		178	0.8t-1.2t/h
IDAH 530F	1.0	193	2.5t-3.9t/h
FAMSUM 600		170	2.2t-3.5t/h
ANDRITZ 520		178	2.2t-3.5t/h
IDAH 530F	1.2	193	2.8t-4.6t/h
FAMSUM 600		170	2.5t-4.0t/h
ANDRITZ 520		178	2.5t-4.0t/h

9.Product Features:
1). Good finish of ring die mill hole surface, hole homogeneous distributed, high hardness.
2). Short time running-in, smooth production, non-flushing (excluding aperture 0.8-2.0), directly used on the pellet mills. 2 hours running reaches the maximum production per hour.
3). Good forming, fine finish, high uniformity, low powder content, no material dumping.
4). High production per hour, long service life. Production per hour and overall are significantly higher than peer level in the same scale.
5). Energy saving. Stable current, low power consumption.
6). Light weight and easy loading.
10.OUR QUALIFICATIONS: Happy Mould use high quality steel, CNC deep hole drilling machine,vacuum quenching furnace and other advanced equipment and unique process; effectively solve problems between the production efficiency and particle quality, hole ratio and service life; effectively solve the problem of dumping material of small aperture fish feeds ring die, uneven length of particle, high percentage of powered pellets, long time cost in run-in; greatly improve production efficiency, improve particle quality, improve yield, reduce production cost. ★ 10 years of experience commited into making feed machine accessories ring die
★ Customized product based on any of our customer's need
★ Produced by using high quality X46cr13 Stainless Steel
★ Exquisite craft,high smoothness, nice appearance, high capacity.
★ Strickly inspection of quality control
FAQ:
1.Is Bosswinn a manufacturer ? A: We are a manufacturer, the business owner has 2 factories producing springs, machining part, stamping parts 2. When is the delivery time? A: 10 and 15 days , one month in the peak seasons 3. What is the MOQ? A: For the initial order , any quantity ok. For the mass production order, 10000 pcs better. 4. What's your payment method? A: T/T, L/C, Western Unions, 5. How can we confirm the samples? A: Free samples are offered,
