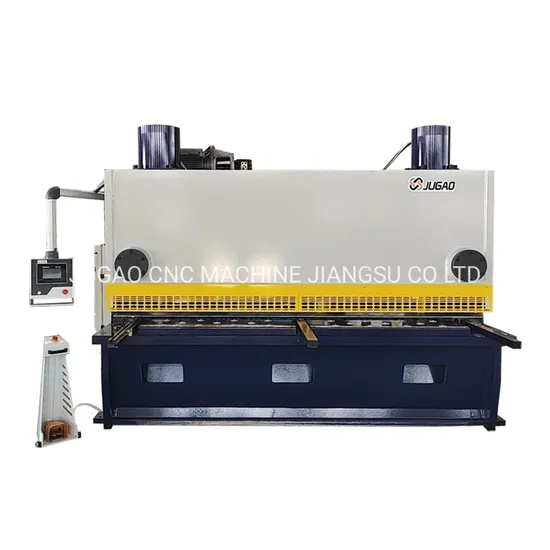

Sheet Metal Hydraulic Cutting Machine Dat360 CNC Control Hydraulic Shearing Machine

Sheet Metal Hydraulic Cutting Machine Dat360 CNC Control Hydraulic Shearing Machine

US$5,500.00-25,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
QC11Y/K
Warranty
1 Year
Name
QC11K CNC Swing Type Shearing Machine
Color
Optional Hydraulic Shearing Machine
Hydraulic System
Bosch Rexroth Germany
Sealing Rings
Volqua Japan
Electric Parts
Siemens & Schneider
Hydraulic Oil
46#
Shearing Plate Material Available
20-600mm
Controller
Dat360
Stroke Number
Mild Steel, Stainless Steel, Aluminum Steel
Origin
China
Production Capacity
30set/Month

Product Description

Sheet Metal Hydraulic Cutting Machine DAT360 CNC Control Hydraulic Shearing Machine 1.Cutting angle can be adjusted. It is used for cutting metal sheets of different materials. So as to ensure cutting quality.
2. Four edges of blade can be used. So service life of blade is double that of ordinary machines.
3. Electric blade edge clearance adjustment. Simpler operation.
4. Upward movement of the blade is controller by accumulator . No need to add nitrogen gas in future use.
5. Cutting steel plate with thickness greater than 12mm. The cutting quality is better.
Technical parameter
model Shear plate thickness Shearable plate width Number of trips Back gauge range Shear angle main motor power
mm mm min -1 mm ° kw
6×2500 6 2500 20-25 600 0.5-1.5 7.5
6×3200 6 3200 16-25 600 0.5-1.5 7.5
6×4000 6 4000 14-25 600 0.5-1.5 7.5
6×5000 6 5000 10-15 800 0.5-1.5 7.5
6×6000 6 6000 10-15 800 0.5-1.5 11
8×2500 8 2500 18-25 600 0.5-1.5 11
8×3200 8 3200 16-25 600 0.5-1.5 11
8×4000 8 4000 12-25 600 0.5-1.5 11
12×2500 12 2500 12-20 600 0.5-2 15
12×3200 12 3200 12-20 600 0.5-2 15
12×4000 12 4000 12-20 600 0.5-2 15
16×2500 16 2500 10-15 800 0.5-2.5 18.5
16×3200 16 3200 10-15 800 0.5-2.5 18.5
16×4000 16 4000 8-15 800 0.5-2.5 18.5
20×2500 20 2500 8-12 800 0.5-2.5 30
20×4000 20 4000 8-12 800 0.5-2.5 30
25×2500 25 2500 6-10 800 0.5-3.5 37
25×3200 25 3200 6-10 800 0.5-3.5 37
25×4000 25 4000 6-10 1000 0.5-3.5 37
32×2500 32 2500 6-8 1000 0.5-3.5 45
32×3200 32 3200 6-8 1000 0.5-3.5 45
