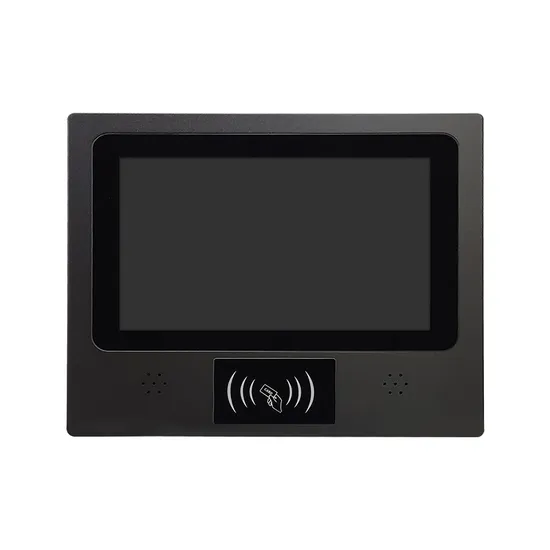

10.1 Inch Embedded Touchscreen LCD Monitor Display Kiosk Panel PC with RFID and Speaker
| US$270.00-420.00 | 1 Piece (MOQ) |
Basic Info.
Memory
4G
Storage
128g
Touchscreen Type
Project Capacitive Touch
RFID
Dual Frequency 13.56 MHz MIFARE and 125 kHz Em
Temperature Range
-20 to 70 Celsius
Warranty
1 Years Warranty
Certificate
CE, FCC, RoHS
Type
IPC
Touch Screen
Touch Screen
Installation
Wall-Mounted
CPU Card Size
Full-size Card
Hard Disk Rack Type
Board Type
System Expansion Slot
14 Slot
Accessories
Industrial Power Supply
CPU Type
Intel Celeron J4125
Power Supply Type
Adapter
Rack Unit
All in One
Transport Package
Carton
Specification
42x16x42cm
Trademark
Sihovision
Origin
China
HS Code
8471414000
Production Capacity
5000piece/Month
Product Description
10.1 inch Embedded Touchscreen LCD Monitor Display Kiosk Panel PC with RFID and SpeakerMain Products
Feedback
Product Description Features:
1. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof and dustproof.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
4. High performance motherboard, 7x24 continuous operation.
5. Support wall mounting, desk stand, embedded mounting.
6. Build in dual Frequency RFID 13.56 Mhz Mifare and Speaker
| PC | |
| CPU | Intel® Celeron J4125, Quad cores, Quad threads, Base 2.4 Ghz, Turbo 2.7 Ghz, Fanless |
| Chipset | Intel® Gemini Lake |
| Memory | 4G DDR4 (8G optional) |
| Hard Drive Capacity | 128G SSD |
| Hard Drive Optional | SSD: 64G, 256GB, 512GB |
| HDD: 500GB, 1TB | |
| Graphics | Intel® UHD Graphics 600 |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 1*Realtek RTL8106E Gigabit network card |
| Wireless Network | WIFI, Bluetooth, GPS, LTE Optional |
| RFID | Build in dual Frequency RFID 13.56 Mhz Mifare and 125 Khz EM |
| Front Speaker | Build in 2x 4Ω3w Speaker |
| Operation System | Support Windows 10/11, Linux, Ubuntu, Debian, etc. |
| I/O | |
| USB | 2× USB2.0, 2x USB3.0 |
| COM | 2x RS232, 2x RS485 |
| LAN | 1x RJ45 |
| Video Outputs | 1x VGA, 1×HDMI |
| Audio | 1x 3.5mm Line-out, 1 × 3.5mm Line-in |
| Power input | 1× 12V DC jack |
| Other | 1×Power on/off button |
| LCD panel | |
| Panel size | 10.1" |
| Display active area | 216.96(W)×135.6(H) mm / 8.542 in × 5.339 in |
| Resolution | 1280*800 |
| Aspect ratio | 16:10 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 400 (cd/m²) |
| Brightness control | PWM software adjustment |
| Contrast ratio | 800:1 |
| View angle | 85°/85°/85°/85° (R/L/U/D) |
| Backlight | WLED, 30K hours |
| Touch panel | |
| Touchscreen Type | Projected Capacitive Touch (up to 10 points ) |
| Surface hardness | 7H |
| Surface treatment | N/A |
| Luminousness | 85% |
| Touch controller IC | ILITEK2510 |
| Available touch drivers | Windows, Linux, Android, Mac |
| Touch bonding | Air bonding |
| Touch options | (5 wire resistive touch, non touch, IR touch optional) |
| Power Supply | |
| Working voltage | DC 12V |
| Power consumption | 15W |
| Power adapter | AC 100 ~ 240V input and DC +12V@5A MAX output, 60W |
| Enclosure | |
| Material | Aluminium alloy bezel+ Zinc Plating cold rolled steel rear housing |
| IP rating | Front panel IP65 |
| Cooling system | Passive - Fanless |
| Other | |
| Temperature Range | Operating: -20 °C ~ 70°C (-4°F ~158°F), Storage: -30 °C~80°C (-22°F ~176°F) |
| Accessories | Power adapter, power cord, embedded mounting screws |
| Warranty | 1 year |
| Certificate | CE, FCC, RoHS |
Certifications
Company Profile
FAQ
Sihovision is based in China to support global marketing and we are looking for local distributors as our long term partners,Welcome to contact us!
