Turret Milling Machine Vertical Milling Machine with High Quality and Low Price Made in China

Product Description

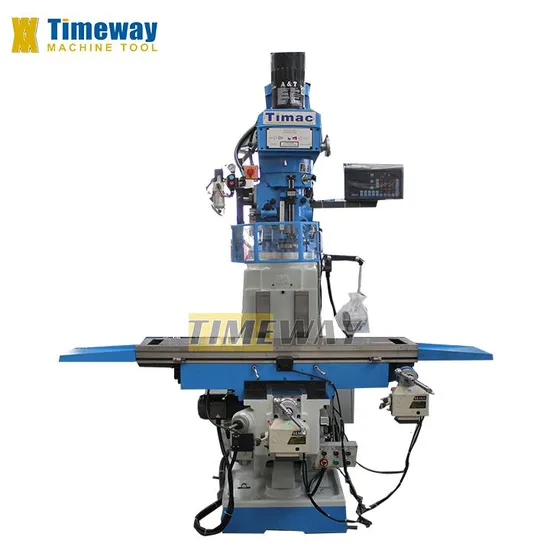

VERTICAL TURRET MILLING MACHINE
The large number of mill head adjustments makes these robust and stable universal milling machines ideal for drilling and milling simple to difficult workpieces in single part production, repair work, training etc.
Features:
1. Work table features large clamping area, surface hardened and polished.
2. Universal mill head can be turned, tilted and swiveled.
3. Hardened and polished guideways in all axis.
4. 3 automatic spindle feeds come standard.
5. Spindle is chromium plated and features micrometer depth stop.
6. Powerful coolant device included in machine base.
Technical Parameter:

Specifications		Unit	M300	M300A	M330	M330A
Table size		mm	305x1370/305x1500	305x1370/305x1500	330x1370/330x1500	330x1370/330x1500
Longitudinal travel (X)		mm	870/1000	870/1000	820/1000	820/1000
Cross travel (Y)		mm	360	360	380	380
Vertical travel (Z)		mm	380	380	460	460
T-slot No. and size		mm	3 x 16	3 x 16	3 x 16	3 x 16
Ram travel		mm	500	500	500	500
Distance from spindle to table		mm	0-350	0-350	0-450	0-450
Spindle taper		-	ISO40	ISO40	ISO40	ISO40
Spindle quill travel		mm	127	127	127	127
Spindle speed		rpm	16steps, 50HZ: 65-4500/60HZ: 80-5440 (Optional: Variable 65-3750)		16steps, 50HZ: 65-4500/60HZ: 80-5440 (Optional: Variable 65-3600)
Spindle quill automatic feed		mm/r	0.04/ 0.08 /0.15	0.04/ 0.08 /0.15	0.04/ 0.08 /0.15	0.04/ 0.08 /0.15
Main motor power		kw	3.7	3.7	3.7	3.7
Mill head swivel angle		°	±90°	±90°	±90°	±90°
Mill head tilting angle		°	±45°	Fix	±45°	Fix
Dimension of package	One	mm	1566x1650x2080	1566x1650x2080	1800x2020x2200	1800x2020x2200
	Two	mm	1720x1800x2175	1720x1800x2175	1800x2200x2180	1800x2200x2180
Gross weight		kg	1630	1650	2200	2250

Note:
1. S models equip with Taiwan Made Step Pulley Milling Head.
2. V models equip with Taiwan Made Variable Speed Milling Head.
3. "" means Double 55° Dovetail Guide-way; " " means Rectangular Guide-way
4. X,Y axis adopt Auto. feed gear box as Standard (3SU/3VU).
5. Z-axis adopts high speed lifting motor as Standard (5S/5V, 5SF/5VF, 6S/6V, 6SF/6VF).

Standard Accessories:
Draw bar, Electric cabinet, LED machine light, Hand oil pump, Coolant device, Tool & tool box , Operation manual (English)
Available Options:
Inverter milling head, Air draw bar, 2-axis digital readout (DRO), 3-axis digital readout (DRO), Spindle feed ruler, Spindle protect guard, Worktable protect guard, Plastic splash guard, Electronic central lubrication, Coolant tray, Electro power feed for X axis, Electro power feed for Y axis, Electro power feed for Z axis, Gear box power feed, Table lifting motor, Rotary table, Dividing head, Slotting head, Machine vise with swivel base, Milling chuck collets kit 8pcs, Milling chuck collets kit 15pcs, Deluxe clamping kit set 58pcs
Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Packaging & Shipping
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Customer visited
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
The following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine

FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
