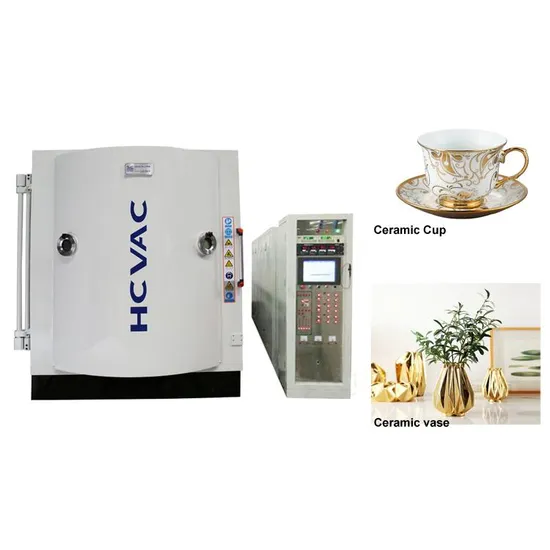

Hcvac Ceramic Tiles Tableware Titanium Nitride Gold PVD Vacuum Coating Machine

Product Description

Ceramic Tiles/tableware Titanium Nitride Gold Coating Machine,ceramic titanium gold coating machine
Product Description
Ceramic Tiles/tableware Gold PVD Coating Machine can coat ceramic tiles, ceramic tableware, porcelain tiles, floor tiles, glass mosaic. Glass tiles. Beside ceramic, you can also coat metal, glass products. Until now we have make the biggest machine for coating tiles, it's production ability is can coat 1500 square meter per day.
Ceramic Tiles/tableware Gold PVD Coating Machine is used to deposit TiN(gold color), Ti (silver color) and other coating on ceramic tiles. Thus it can replace the traditional paint gold, enhence the adhension, saves cost and improve production efficiency.
Features
Ceramic Tiles/tableware Gold PVD Coating Machine is a ion coating machine of efficiency, harmless and pollution-free. It has the features of fast deposition rate, great ionization rate, big ion energy, easy operation, low cost, large productive capacity, etc.
Characteristic: The principle of the electric arc is integrating cold cathode arc discharge self-sustained light unite pulse technique and magnetron sputtering technology, thinning the particles to improve the properties of the film. It can coat on the surface of the metal as well as nonmetal.
Applied industry: It can be used to coat metal film, titanium nitride, titanium carbide, and zirconium nitride, chromium nitride and titanium, nickel, chromium, copper, and other compounds film, multi-layer super-hard film, nitrogen-doped titanium film and the alloy film, and in a very short time to complete all the machining process, it is a highly efficient multi-functional coating equipment.
Technical parameters:

Mode Dimension	LH-800	LH-1250	LH-1416	LH-1618
	800*1000mm	1200*1500mm	1400*1600mm	1600*1800mm
Coating mode and main confirguration	Eight multi-arc targets	Twelve multi-arc targets	Fourteen multi-arc targets	Twenty multi-arc targets
Power source	Electric-arc power, Filament power, Pulsed bias power supply
Process gas control	Mass flowmeter + Electromagnetic ceramic valve
Vacuum chamber structure	Vertical side opening door, pump system postposition, double water cooling
Vacuum system	Molecule pump +Roots pump +Mechanical pump(5.0*10 -5 Pa) Diffusion pump +Roots pump +Mechanical pump(5.0*10 -4 Pa)
Workpiece baking temperature	Normal temperature to 350 centi-degree PID control, radiation heating.
Workpiece motion mode	Public rotation Frequency control: 0-20 rotation per minute
Measure mode	Number display composite vacuum gauge: from atmosphere to 1.0*10 -5 Pa
Control mode	Manual/Automatic/PC/PLC + HMI/PC four choice of control mode
Remark	We can design the dimension of the equipment according to customer's special technique requirement.

Application
This Ceramic Tiles/tableware Gold PVD Coating Machine is extensively used in the fields of ultra-hard coating about the tools and mould, decorative coating about car wheels, ceramics, golf, watches making, hotel product, sanitary ware, luminaires, optical frame, hardware, etc.
Company Profile
Factory workshop:
Certifications
Packaging & Shipping
Clients
Our Advantages
Why Choose HCVAC system? Over 3000 plants installed worldwide Quick cycle times High production capability with low energy consumption More up time due to ease of loading/unloading and low maintenance High productivity with only a single operator Steel process chambers, built to last Eco-friendly Space saving design PVD option available on all plants 1 year component warranty and 25 years minimum guaranteed working life Complete global network of consulting, engineering and renowned after sales service
We developed a complete after-sales system and effective service measures. Company now owns a professional after-sales service team with more than ten experienced engineers.
HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.
We will make the full set special coating solution for each customer; combine the full set production technics to meet your requirements, to ensure high efficiency of production.
ISO 9001 standard to ensure the quality can meet the customer's requirements.
Easy to implement: To many people unfamiliar with the process, PVD coating technology seems complicated. However, with the right investments and a good support, it is easier than expected. HCVAC has developed a turnkey coating process that makes a PVD coating centre easy to implement. A complete coating process consists of several steps: Stripping (depending on the part's history); Pre-treatment; Quality control; Cleaning & drying; Fixturing & visual inspection; PVD coating; Quality control & thickness measurement and post-treatment (depending on the application). These steps are all available from one partner: HCVAC Technology, including mature technics and coatings.
