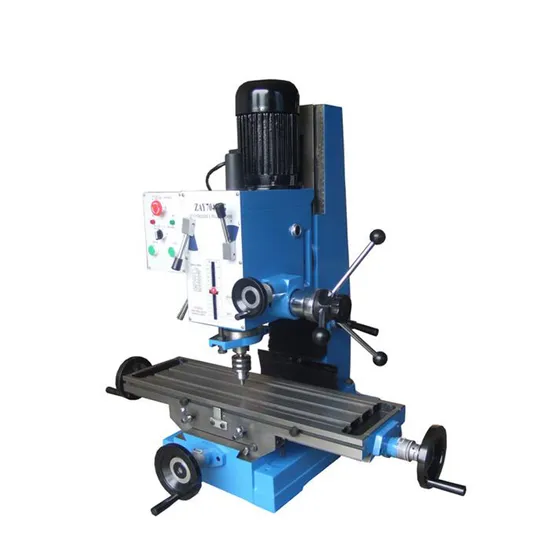

Zay7032fg High Quality Mini Metal Vertical Square Column Drilling and Milling Machine for Sale
| US$700.00-2,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZAY7032FG
Type
Worktable Milling Machine
Object
Tool
Structure
Desktop
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
Program Control
Automatic Grade
Automatic
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Layout
Vertical
Number of Shaft
3
Hole Diameter
<50mm
Drill Capacity
25mm
Taper
Mt3
Motor
0.37kw
End Milling Capacity
20mm
Ace Milling Capacity
63mm
Transport Package
Plywood Case
Specification
125kgs
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84595900
Production Capacity
10 PCS/Month
Product Description
DRILLING MILLING MACHINE FEATURES:
Gear-driven type and square column
Milling, drilling, tapping, boring and reaming
Head swivels 90 verticaly
Micro feed precision
Adjustable gibs on table precision.
Strong rigidity, powerful cutting and precisely positioning.
SPECIFICATIONS:
| ITEM | ZAY7025FG | ZAY7032FG | ZAY7040FG | ZAY7045FG |
| Max Face mill capacity | 25mm | 32mm | 40mm | 45mm |
| Max End mill capacity | 63mm | 63mm | 80mm | 80mm |
| End milling capacity | 20mm | 20mm | 32mm | 32mm |
| Max.distance from spindle nose to table | 445mm | 450mm | 450mm | 450mm |
| Min.distance from spindle axis to column | 203mm | 260mm | 260mm | 260mm |
| Spindle travel | 85mm | 130mm | 130mm | 130mm |
| Spindle taper | M.T.3 or R8 | M.T.3 or R8 | M.T.4 or R8 | M.T.4 or R8 |
| Step of spindle speed | 6 | 6 | 6 | 6 |
| Range of spindle speed 50Hz | 95-1420 r.p.m | 80-1250 r.p.m | 80-1250 r.p.m | 80-1250 r.p.m |
| 60Hz | 115-1700 r.p.m | 95-1500 r.p.m | 95-1500 r.p.m | 95-1500 r.p.m |
| Swivel angle of headstock(perpendicularly) | 90° | 90° | 90° | 90° |
| Table size | 520×160mm | 800×240mm | 800×240mm | 800×240mm |
| Forward and backward travel of table | 140mm | 175mm | 175mm | 175mm |
| Left and right travel of table | 290mm | 500mm | 500mm | 500mm |
| Motor Power | 0.37KW | 0.75KW(1HP) | 1.1KW(1.5HP) | 1.5KW(2HP) |
| Net weight/gross weight | 180kg/240kg | 320kg/370kg | 323kg/373kg | 325kg/375kg |
| Packing size | 680×750×1000mm | 770×880×1160mm | 770×880×1160mm | 770×880×1160mm |
