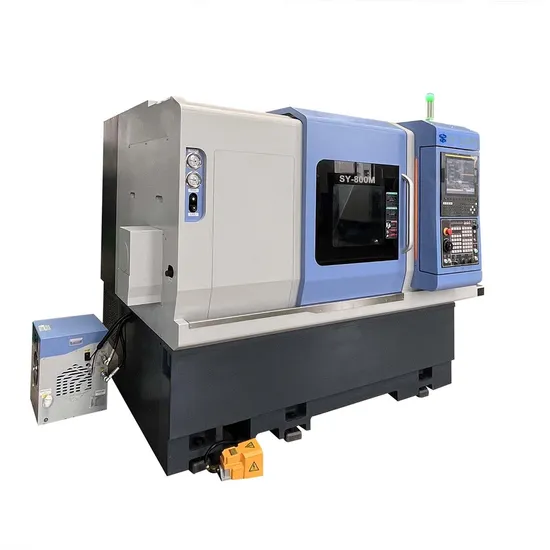

High Precision CNC Lathe Turning Center with Y Axis

Product Description

Product Description
Experience the future of precision engineering with our two-axis High Precision CNC Lathe Turning Center. This state-of-the-art machine revolutionizes efficiency by processing both ends of a workpiece simultaneously in a single clamping. This dramatically simplifies manual operations, boosts output, and streamlines processes. The innovative second spindle allows for comprehensive turning and seamless workpiece transfer during machining, significantly reducing cycle times. Our lathe boasts a meticulously optimized 30-degree inclined structure design, ensuring high precision, exceptional rigidity, and unparalleled cutting stability. Constructed from a one-piece high-strength HT300 cast iron bed, it incorporates finite element analysis for outstanding mechanical rigidity and stability. This design ensures long-term reliable accuracy, enhanced processing stability, and extended tool life. Stress relief treatment further enhances accuracy stability. The high-strength roller linear rail design, coupled with a screw pre-tension transmission system, augments rigidity performance. Its sleek and sophisticated appearance aligns with contemporary trends, making it a perfect addition to any modern workshop.
Main features of this machine tool:
1. Embrace precision with our direct drive synchronous electric spindle device, featuring a magnetic ring incremental encoder (sine and cosine) with a positioning accuracy of 20 arc seconds and C-axis indexing accuracy of 40 arc seconds. This innovation effectively eliminates spindle vibration, maintaining nose deflection accuracy within 0.002MM. Enhance workpiece surface finish with a rear-mounted rotor that simplifies installation and maintenance. The spindle motor's cooling system mitigates thermal displacement, ensuring a consistent operating temperature. Undergoing rigorous dynamic balance testing, our spindle system offers excellent accuracy retention, high rigidity, and efficiency. This versatile machine excels in both fine finishing and heavy-duty rough machining, particularly suited for mass production of complex and high-smoothness products.
2. The high rigidity integrated design servo power turret elevates tool changing performance with rapid and accurate operations. Combined with the power milling capabilities of a high-speed power axis, it delivers exceptional turning and milling processing. The tool holder utilizes a high-rigidity BMT installation interface, driven by a servo spindle motor for superior power transmission.
3. This machine tool is equipped with roller linear guides and heat-treated, precision-ground ball screws to ensure optimal accuracy and durability. Each axis features a direct transfer structure and double-anchor pre-relay method, minimizing thermal displacement and vastly improving processing accuracy. The high-rigidity, large-sized, heavy-duty linear slide rails maintain precision under impact, offering smooth, low-noise displacement and extended service life.
4. Our machine provides a comprehensive hydraulic and lubrication system, integrating high-quality hydraulic pumps, valves, and components, significantly reducing the failure rate. These systems are designed for simplicity and reliability, ensuring seamless operation.
5. Equipped with a Taiwan rotary chuck cylinder and an optional automatic chip removal device, our machine minimizes operator labor intensity, promoting safe and efficient production. All functional components can be programmed and controlled, with customizable functions designed to meet the specific requirements of users.special fixture.
Product Parameters

Item	Unit	SY800M
Max. swing diameter over bed	mm	Φ680
Max. processing diameter	mm	Φ400
Max. processing diameter over tool holder	mm	Φ350
Max. processing length	mm	600
Spindle type	/	A2-6
Max. spindle speed	rpm	4300
Hydraulic Cylinder/ Chuck	/	8"
Spindle bore diameter	mm	Ф65
Max. bar diameter	mm	Ф52
Direct drive spindle motor power	kw	18/ 22
Direct drive spindle motor torque	Nm	105-227
X/Z axis travel	mm	320/740
X/Z axis rail specifications	spes	Roller45
X/Z axis motor power	kw	2.9/2.9
Positioning accuracy	mm	±0.005
Repeatability	mm	±0.003
X/Z axis rapid speed	m/min	24/24
Power turret type	pcs	BMT55-12T
Power turret motor	Kw	5.0
Max. power tool holder speed	rpm	5000
External diameter tool holder specification	mm	25X25
Internal diameter tool holder specification	mm	Φ40
Adjacent tool change time	sec	0.15
Programmable hydraulic tailstock	/	Hydraulic tailstock
Max. Tailstock travel	mm	600
Tailstock sleeve tapered hole	type	Mohs5#
Sleeve diameter	mm	Ф80
Sleeve travel	mm	Fixed
Machine size	mm	3500*2110*2100
Machine weight	kg	6500
Cutting fluid tank volume	L	250
Cutting coolant water pump	KW	5
Hydraulic unit box volume	L	40
Hydraulic pump motor power	kw	1.5
Lubricat tank volume	L	2
Automatic lubrication pump motor power	W	50
Coolant water pump power	KW	1.5

Products Configurations
Company Profile

Quality Control
Our Advantages
FAQ
Q1: How can I choose the most suitable machines?
Please provide your specifications, and we will select the best model for you. Alternatively, you can choose the exact model yourself. You may also send us the product drawings, and we will recommend the most suitable machines for your needs.
Q2: What are the main products of your company?
We specialize in a wide array of machines, including CNC Lathe Machines, CNC Milling Machines, CNC Turning Machines, Vertical Machining Centers, Horizontal Machining Centers, Lathe Machines, and Composite Processing Machines for turning and milling.
Q3: Where is your factory located? How can I visit there?
Our factories are located in Guangzhou, Quzhou, Ningbo, and Guangdong. You are warmly welcomed to visit us.
Q4: How do you handle transportation?
We provide various transportation solutions including DDP, CIF, FOB, and FCA.
Q5: What are the payment terms?
We accept T/T payments: 30% initial payment upon order, and 70% balance payment before shipment.
Q6: What is the MOQ?
A: 1 set. (Some low-cost machines may require a minimum order quantity of more than 1 set.)
We would like to know:
1. We strongly suggest providing the size and material of your workpiece for our evaluation. If possible, please send us the workpiece drawing so that we can recommend the most suitable model!
2. If you need a CIF price, please kindly provide the port of destination.
