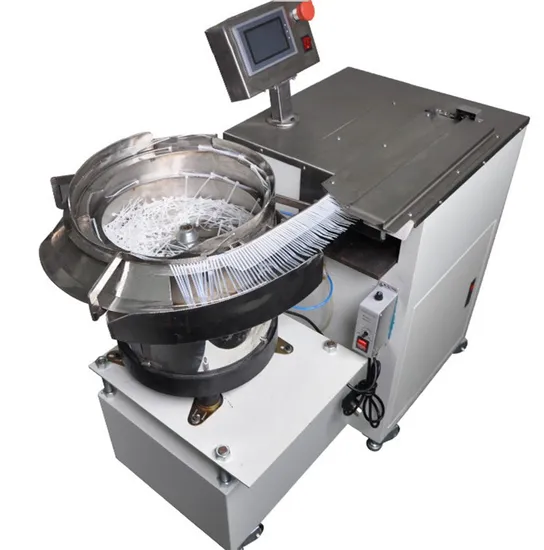

Wl-800L Bench-Top Semi Automatic Plastic Nylon Cable Straps Zip Lock Machine Nylon Cable Tie Tying Machine

Product Description

WL-800L Bench-Top Semi Automatic Plastic Nylon Cable straps Zip lock machine Nylon Cable Tie Tying Machine
Product description:

Model	WL-800L
Applicable cable tie length	60mm,80mm,100mm,120mm (160mm can be customized)
Applicable cable tie width	3-5mm
Max strapping force	15N
Max. conduit diameter	11mm
Productivity	1200-1800pcs/hour
Power	0.75kw
Air pressure	0.6 Mpa
Noise level	<70dBA
Electrical connection	AC 220/110V/50/60HZ 750W
Starting System	Pedal
Weight	125kg
Dimensions	1200*550*780mm

Features:
This nylon cable tying machine adopts vibration plate to feed the nylon cable ties to work position continuously. The operator only need to put the wire harness to correct position and then press down the foot switch, then the machine will finish all tying steps automatically. This nylon cable tying machine adopts vibration plate to feed the nylon cable ties to work position continuously. The operator only need to put the wire harness to correct position and then press down the foot switch, then the machine will finish all tying steps automatically.
The automatic cable tie tying machine is widely used in automotive wire harness, appliance wire harness and other industries.

PLC touch screen control, clear and intuitive, easy to operate.
High degree of automation, good consistency, fast speed.
The tightness and tying length can be set through program, and the operator only needs to put the wire harness around the binding mouth, and the machine automatically senses and ties wires.

Product show:
Machine processing samples:
Related products:
Company information:
Certificate:
Contact:
Pls contact Suzhou Crown Kitty for price inquiry or any other questions/doubt.
