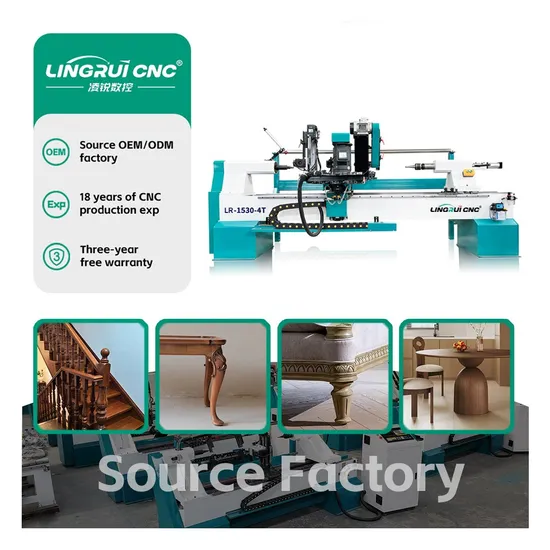

High Quality 1530-4t Automatic CNC Wood Work Lathe Woodworking Machinery Wood 4 Axis Auto Feeding CNC Wood Lathe for Sale

Product Description

Product Description
Advantages of the new CNC Wood Lathe machine: 1. The machine body is processed by an integrated casting gantry milling machine to avoid vibration of the machine body during operation and affect the cutting effect.
2. The machine starts automatically with one button, and can automatically load and unload materials. One person can operate multiple machines.
3. You can change the pneumatic sandwiches according to the diameter of the material. The material and round materials can be selected at will. You can adjust the material warehouse. 4. Each function is driven by an independent cylinder and can be switched at will, making tool setting more convenient.
5. Double -knife drives operation and processing. It can be arbitrarily processed. When processing, use a knife for rough work. A knife is finely processed, and the processing efficiency is higher.
Detailed Photos
Product Parameters

Processing Size	1500mm length*300mm diameter
Bed Frame	Heavy-duty integral fully cast lathe, independent control cabinet
Motor	4KW servo rotating motor
Drive Mode	DORNA servo driver
Frequency Converter/ Inverter	BEST inverter/servo inverter
Spindle Speed Speed of Spindle	0-6000r/m
Transfer method Transmission way	The XY axis is driven by 25TBI ball screw, and the Z axis uses a high-precision helical rack or 32 screw
Milling Spindle	3.5kw high-speed air-cooled spindle(Support four-axis four linkage)
Milling Spindle Speed	0-18000r/min
Planer Knife	Length 240mm, diameter 90mm, 30 big blade
Grinding Wheel	independent motor control,230 mm diameter
Guide X,Y,Z Guide Rail	Taiwan Hiwin High Precision 25 Straight Line Square Rail
Device cable	pure copper cable
Control System	CATEK CNC special control system panel, CK1000TC
Lubrication system	Oil filling and maintenance system
Operating Voltage	AC380V/220V 50/60Hz
Compatible software	Artcam, type3, CAD drawing, CDR, solidworks UG powermill, etc.
Engraving instructions	Standard G code, u00, mmg, plt
Loading and unloading device	Multi-linkage cylinder loading rack (simple and easy to use)
Security system	All photoelectric limits of XYZ three-axis
Repeatability X,Y,Z Traveling Positioning Accuracy	±0.02mm
Toolbox	Turning tools, wrenches, collets, handwheels, thimbles, chucks, oil bottles, oil-water separators, relays, photoelectric limits,etc.

Multi-energy integration
Multi functional integration of turning, milling, planing, carving, drilling and polishing.(supporting 4-axis linkage). It can be adjusted and used at will according to the processing product, which is simple and convenient.
Automatic loading and unloading
Use multi -cylinder linkage to fully automatically upper and lower feeding structures. The length and diameter can be adjusted arbitrarily. The material can be placed at one time to save the manual center positioning time. After the setting is completed , Save labor.

High speed air-cooled spindle
The main motor uses a 4KW high -speed rotating servo motor, which can switch the speed mode/position mode arbitrarily. The maximum speed is 6000r/m. You can switch the A axis to arbitrarily rotate the angle.
Control System
Using an intelligent CNC system with a 7-inch large screen and high visualization degree, controllable accuracy of 0.01MM, simple
operation and single person can operate multiple machines, improving efficiency and saving labor.
Servo Motor
The machine uses a full servo motor to drive. The XYZ three -axis driver uses a high -precision TBI roller screw connection. It is driven by a closed -loop drive. With the silver guide rail/slider, it can achieve mute operation.
Spindle servo motor
The main motor uses a 4KW high -speed rotating servo motor, which can switch the speed mode/position mode arbitrarily. The maximum speed is 6000r/m. You can switch the A axis to arbitrarily rotate the angle.
Screw & Guide Rail
Imported SHANG YIN HIWIN high-precision slider, guide rail, TBI ball screw.
One-piece casting bed
The whole machine tool, the main axis box, and the rear tail seat are cast by black -ranging iron high temperature. The five -sided dragon door milling processing can be used for more than 50 years without deformation.
Company Profile

We offer a three-year warranty maintenance policy for the entire machine. During the warranty period, if any parts are damaged due to the machine's own reasons, we will provide you with free parts for replacement.
Machine lifetime free maintenance and free software updates.
If you need it, our engineers can provide technical support on-site in your country.
Before the machine is shipped, we will provide you with comprehensive instructional videos.
7 * 24-hour service, whether on weekdays or weekends, upon receiving a fault report, respond within 10 minutes through online chat, phone, fax, or email, and find the cause of the fault within 60 minutes.
We provide lifelong free technical support, machine installation, drawing and programming, machine operation, machine maintenance, and lifelong after-sales solutions for our customers.
Certifications
FAQ
1.Are you a factory or a trading company?
We are a factory with an export license.
2.Can you do OEM?
Yes, We have been cooperating with many trading companies and OEM manufacturing for few years.
3. What is after-sales service?
We have 17 years of after-sales service experience. No matter what problems your machine has we will respond within 10 minutes and solve them within 2 hours. The entire machine comes with a 3-year warranty and technical support is provided through phone, email, WhatsApp, and Skype
4.How to choose the appropriate machine?
You can tell us about the material, size, and machine function requirements of the workpiece. We can recommend the most suitable machine based on our experience.
5.Do you have installation and equipment debugging services?
Yes,we do. The machine has been installed and debugged before leaving the factory. After receiving the machine, you can use it directly. We provide a complete and free operation manual and instructional video and as well as we can also have our technical personnel go to your country to install and debug the machine.
6.Can the machine be customized according to my requirements?
Yes,customization is possible. We have a professional team with professional experience. Our goal is to satisfy our customers.
7.Can I process a sample video to confirm the machine's functionality?
Yes you only need to provide drawings or photos, and we can provide you with free processing samples and recording videos.
8. What are the payment methods?
There are two payment methods.
(1)T/T refers to international bank transfers. 50% deposit, then we start to produce machines for you. 50% before shipment convenient and fast.
