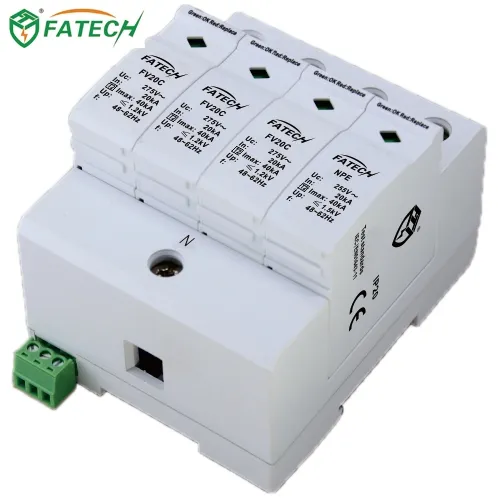

TUV certified 3 phase AC Surge Protector

Product Description

1. AC surge protector for low-voltage power system Characteristic

-Class II / Type 2 3 phase 3P+N surge protector.
-Consisting of a base part and3 MOV + 1GDT plug-in protection modules.
-For using in the lightning protection zones concept at boundary 2-3.
-The core parts are metal oxide vristor components with high discharge capacity.
-Low residual voltage and quick response
-Reliable control thanks to Thermo Dynamic Control disconnector.
-With remote signaling contact for control device.
-Fault indication via red mark in the inspection window.
-Protection mode: L1, L2, L3-N, N-PE.

2. AC surge protector for low-voltage power system Electrical parameters

Model. No.		FV20C/3+NPE-275S
SPD protection conforms to IEC 61643-11 / EN 61643-11		Type 2
SPD installation type conforms to IEC 61643-11 / EN 61643-11		Class II
Protection level conforms to DIN VDE0675-6		C
Type of Network		TT
Protection mode		L1,L2,L3-N , N-PE
Nominal Voltage UN		220/380 Vac/50(60)Hz
Maximum continuous operating voltage UC		275 Vac/50(60)Hz
Continuous operating current IC		<20 µA
Residual current IPE		≤20 µA dc ≤500 µA ac
Standby power consumption PC		≤25 mVA
Maximum discharge current (8/20μs) Imax		40 kA
Nominal discharge current (8/20μs) In		20 kA
Voltage protection level Up	L-N	≤1.2 kV
	N-PE	≤1.5 kV
Isolation resistance Risol		>1000 MΩ
Response time tA	L-N	≤25 ns
	N-PE	≤1000 ns
Remote control contact		YES
Disconnection indicator		Mechanical indicator (Green: OK, Red: Replace)
I/O Connections		By screw terminal:10-35mm2 By connection bus
Installation location		Inside
Mounting type		Symmetrical rail (EN50022/DIN46277-3)
Color		Gray
Degree of protection		IP20
Housing material		UL94V-0
Ambient temperature		-40°C ~+80°C
Altitude		≤2000 m (amsl (above mean sea level))
Permissible humidity		30%~90%

3. Circut

Workshop
Certifications
FATECH Electronic (FOSHAN) CO., LTD. supplies five-years warranty on surge protective devices, and supply maintenance services in lifetime.Products are certified with TUV, CE; UL pending, 90% material are UL approved.

FAQ:

1. Q: Could l know which advantages do you have please?

A: Independent test center, TUV, Patent certifications; 15 years export experience in the overseas market; good technical service and support.

2. Q: Are you a lightning surge protectors factory or trading company?
A: We area manufacturer which is ISO 9001-2008 quality system on R&D, production and sales of surge arrester.

3. Q: Warranty and return?

A: We supply five-years warranty on surge protective devices and own the best after-sale service team, if any
problem happens, our team will do our best to solve it for you.

4. Q: What's the delievery time?

A: It is usually about 15 days after receiving the payment and confirmed the order, but specific time should
be based on the order quantity.
