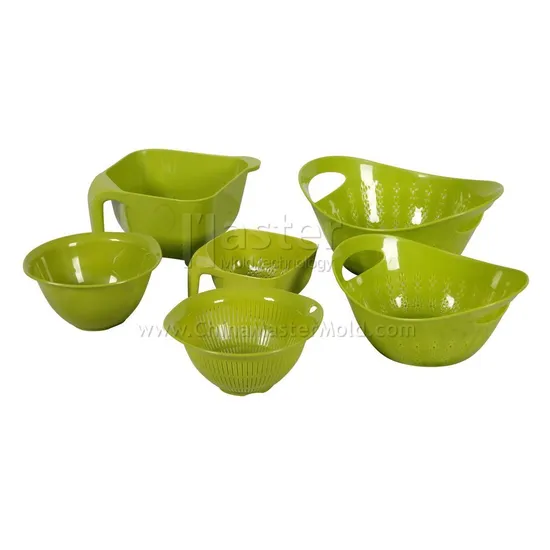

Low Noise Design Low Energy Consumption PLA PPS Houseware Plastic Parts Mould

Product Description

Product Description
Master Mold Advantage
High efficiency + Short delivery time + Competitive price.
You may send your requirements or 2D 3D design to us We can make any plastic mold exactly as your needs.
1. Mold can produce all kinds of plastic products.
2. can rapid prototyping.
3. Safe and fast delivery.
4. Quantity, good quality, and reasonable price.
5. Support OEM.
6. The high-quality service.
7. Customer requirements identified and welcome customer's design.
8. We have rich experience in mold production design and strict management systems.
9. Provide the best after-sales service.
We offer full service ranging from the original conception to product completion, totaling the whole solution from the paper sketch to the functional part in your hand.
Product Parameters

HOUSEWARE MOLD SPECIFICATIOPNS
Product Name	Houseware Mold
Keywords	Plastic Houseware Mould
Plastic Material	PP,PE,ABS,POM,PET,PBT,Nylon + GF. Etc. PC,PMMA Acrylic For The Transparent Product.
Steel Of Cavity And Core	Up To The Customer's Budget And Productivity Required, We Suggest The Following Steel Grade: Pre- Harden Steel : P20 (1.2311),P20+Ni, Etc Harfen Steel : H13 (1.2344) / NAK80, Etc. Stainless Steel: ASSAB Stavax, Etc
Steel Of Mold Base	Up To The Customer's Budget And Requirement, We Suggest Different Mold Base Steel To Clients. Normal Used Material S50C,Or P20
No. Of Cavity	Customized
Hardness Of Cavity And Core	Pre-Hardened Steel: HRC 30-32+-1* Heat Treatment Steel: HRC 50-52+-1*
Core Pulling Or Ejection System	Depends On The Products. Commonly Used: Motor,Oil Cylinder,Stripping Plate,Angel Pin,Ejector Pin, Etc
Mold Accessories	Compatible To DME/ HASCO Standard.
Cooling System	In Core: Baffle Or Pass Cooling In Cavity Plate: Chain Drilling Type Cooling
Surface Finish	Up To The Product's Requirement, Normal Use : Texture,EDM Machine ,Polishing
Mold Life	Up To Mild Steel Grade,Under Ideal Operating Conditions, 1. Pre-Harden Steel,Min. 20 - 300000 Shots 2. Harden / Heat Treatment Steel: 60 - 800000 Shots. 3. Stainless Steel: 1 Million Shots.
Runner / Gate System	1. Cold Runner 2. Hot Runner 3. Cold Runner + Hot Runner
We offer full service ranging from the original conception to product completion, totaling the whole solution from the paper sketch to the functional part in your hand.

Detailed Photos
CNC MACHINING
After receiving UP from the programmer, the CNC operator performs the following operations:
- Select suitable UP steel , ad well ad copper or graphite (electrode) billets for molding parts in the warehouse.
- Set the workplace on the NC table, display"0" and input the original data.
- Load the required program into the machine and check all future datails: Mould number, part number or copper electrode number ( per part )
ELECTRIC PULSE MACHINING
The electrodes are sent from the inspection site to the polishing section, and then to the electric pulsh processing section.
The operator mounts the workpiece and set up proceduress as needed
Reqquirements: Avoid carbon deposition during electric pulse machining
Fluid flow must be controlled. If necessary, during the process to check parts. dimensions by using measuring tools or probes.
EDM
Machining various types of bases, inserts, gaps, holes, and forming tools in the EDM area. All these operations are carried out by the technical requirements of the drawings and continuous quality control.
MOULD FINISHING AND ASSEMBLY
In the finishing assembly site, the mold manufacturing process is completed.
The mold worker carries on the fine processing and assembling of the mold-forming parts and prepares the mold for the test. The qualifications of mold workers determine the quality of mold manufacturing and are mainly responsible for the reputation of the company. After all the processing. Plastic Mold making is a high-tech processing.
OEM / ODM Optional.
Taizhou Huangyan Master Mold Co., Ltd
We focus on injection molding and blow molding molds for various purposes (hereinafter referred to as molds). We provide the best technology, price, and quality. We provide our customers with:
-Plastic Product Design (3D)
-Prototyping, PET preforming
-Preparation of design documents (2D, 3D)
-Mould manufacturing and deliver
We specialize in the production of molds for plastic parts in a variety of applications: Auto Mold /Baby Toy Mold /Bucket Crate& Pallet mold /Houseware Mold / Pipe fitting Mold / Table and chair Mold, etc.
FAQ
Q1: Is available for customized design drawings?
A: Yes, DWG, DXF, DXW, IGES, STEP, PDF, etc.Or you can send us samples for scanning.
Q2: Will my drawing be safe after you get it?
A: Yes, we can sign the NDA before you send the drawing. Or you can send us samples for scanning.
Q3: Can we know the production process without visiting the factory?
A: We will offer a detailed production schedule and send weekly reports with digital pictures and videos that show the production progress.
Q4: What craftsmanship do you have for processing accessories?
A: According to different products, different processes are used, such as machining, extrusion, injection molding, etc.
Q5: What is your processing equipment?
A: CNC machining center, CNC lathe, milling machine, engraving machine, injection molding machine, extruder, molding machine.
Q6: Can injection products be surface treated? What are the surface treatments?
A: It's okay. Surface treatment: spray paint, silk screen, electroplating, etc.
