Factory Supply Small Load 500kg Electric Glass Vacuum Lifter Glass Vacuum Lifters Glass Suction Lifter

Product Description

Professional manufacturer for glass machinery, such as grinding machine, vacuum lifter, storage shelf, laminated furnace, and accessories(grinding wheels, sucker, EVA, etc)
Introduction:

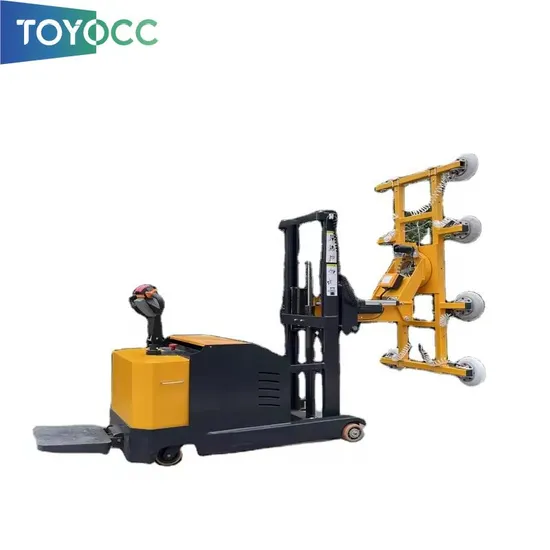

The production and design of the RYN series glazing robot combine the advantages of forklifts and vacuum lifter, which can realize the functions of ascending, descending, forward-tilting, backward tilting, side shifting, rotating, and side turning and can realize the switch of glass from horizontal to vertical or vertical to horizontal, generally used for handling, loading and unloading glass, iron plate, stainless steel plate and other plates. Among them, RYN-S requires manpower to push and pull to walk, RYN-F can walk electrically, and RYN-N is a counterweight type without support legs, which is more convenient to operate. We accept customization.
Features:
1. Battery powered, no need for external air source or power source, electric inhale and deflate, easy to use
2. It can be equipped with electric rotation, side rotation, side shift, and other functions
3. High-power motor, strong power, stable operation
4. Panasonic(Japan) digital display pressure sensor, with automatic start-stop function, clearly monitor the safe operation of the equipment
5. It comes with a vacuum pressure compensation system to ensure that the entire vacuum system is maintained at a relatively constant safety value during the glass handling process. Even if the power is off unexpectedly, the pressure holding function can extend the emergency processing time and make it safer to use.
6. The position of the vacuum lifter can be adjusted, and each vacuum lifter is equipped with a separate control valve, which can suck different shapes and sizes of glass.
Specification:

Model		TRYN-S
Max. Lifting Weight (horizontal)	Kg	800
Safe Loading Weight (vertical)		400
Operation		Manual
Lifting Height	mm	1600
Max Lifting Plate Size	mm	3660*2440
Suction Cup Diameter	mm	300
Suction Cup Qty		4/6/8
Lifting Speed	mm/s	90/120
Falling Speed	mm/s	125/80
Lifting Motor	kw	2.2
Front Wheel Size	mm	80*70
Back Wheel Size	mm	150*50
Braking Method		Foot brake
Battery	V/Ah	24/120

Model		TRYN-F
Max. Lifting Weight (horizontal)	Kg	1000
Safe Loading Weight (vertical)		500
Operation		Electrical
Lifting Height	mm	1600
Max Lifting Plate Size	mm	3660*2440
Suction Cup Diameter	mm	300
Suction Cup Qty		4/6/8
Lifting Speed	mm/s	90/120
Falling Speed	mm/s	125/80
Lifting Motor	kw	2.2
Walking Motor	kw	1.2
Driving Wheel Size	mm	Φ300*80
Front Wheel Size	mm	80*70
Balance Wheel Size	mm	150*80
Braking Method		Electromagnetic brake
Power		AC
Battery	V/Ah	24/120

Model		TRYN-N
Max. Lifting Weight (horizontal)	Kg	1000
Safe Loading Weight (vertical)		500
Operation		Electrical
Lifting Height	mm	1600
Max Lifting Plate Size	mm	3660*2440
Suction Cup Diameter	mm	300
Suction Cup Qty		4/6/8
Lifting Speed	mm/s	90/120
Falling Speed	mm/s	125/80
Lifting Motor	kw	2.2
Walking Motor	kw	1.5
Driving Wheel Size	mm	Φ300*80
Front Wheel Size	mm	150*80
Balance Wheel Size	mm	150*80
Braking Method		Electromagnetic brake
Power		AC
Battery	V/Ah	24/120(24/210 optional)

Other items:
Company Introduction:
Founded by two metal equipment industry-leading companies in 2017, Qingdao Industry Co., Ltd is specialized in developing the glass machine supplying business.
Both our parent companies have more than 20 years of experience in the glass machine manufacturing industry, with excellent production capacity and outstanding quality control. Our factories cover a total area of 128, 608 square meters, with 500 technical staff, as well as 60 research and development engineers.
Our mission is to provide"more reasonable price with the same quality, and same price with higher quality".
FAQ:
1.Do you offer customized offer?
Yes, we can accept custom.
2.What's the delivery time?
About 20 days.
3.How can I get the after-sales services?
We offer videos, pictures, and technical guidance immediately.
4.How can customers buy parts once it break down?
The lift adopts most of the common parts of hardware. You can buy the parts in your local hardware market or forklift parts shop.
5.How can customers repair if any problem?
One of the great advantages of the equipment is with very very low failure rate. Even it breaks down, we can guide to repair it by video and repair instruction.
6.What's your QA&QC policy?
3times 100% inspection before shipping.
