Basic Info.
Raw Materials
Synthetic Rubber, Pad
Medium
Pure Gum Rubber Sheet and Fabric
Performance
Oil-Resistant Rubber Slab
Product Name
6mm Thickness Anti-Slip Rubber Sheet/ Rubber Mat R
Warranty of Core Components
12 Months
Structure
Rubber/ Rubber+Fabric
Dimension(L*W*H)
Variable
Tensile Strength
Min 2MPa
Specification
2m width max
Production Capacity
5000meters/Month
Product Description

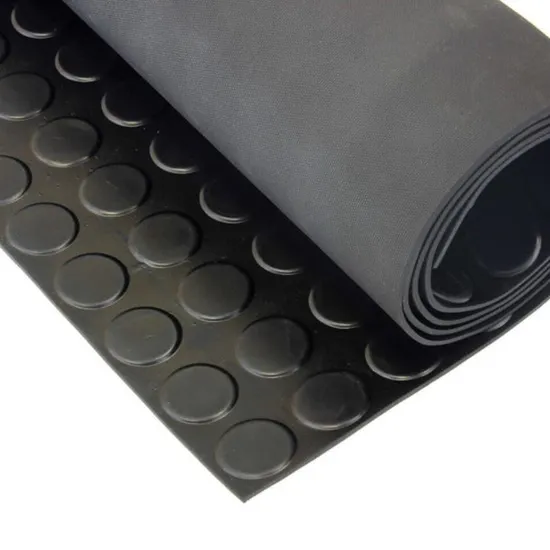

6mm thickness anti-slip rubber sheet/ rubber mat rolls
Product Description This rubber sheet is an extremely resilient rubber, it displays excellent resistance to heat, weathering, ozone and a wide range of chemicals. It is impervious to UV lighting, is non toxic, chemically inert and will retain its flexibility & properties within -40~150 °C.
Our rubber sheeting is suitable for a huge range of applications including:
Gaskets, seals, washers, chute linings, skirts, sand blasting screens, bridge bearings, snow plough blades, wear strips, door seals & hatch seals.
We supply a wide range of rubber sheeting materials, from general purpose to specialist grades.
We have rubber sheet to comply with an array of British Standards: BS 2751, BS 2752, BS 1154
Rubber Sheeting compounds include: Natural, EPDM, Neoprene, Nitrile, Silicone, Insertions, Butyl, Hypalon, Food Quality FDA Approved and Polyurethane.
If you are not sure what polymer is the most suitable we can offer expert advice on material selection.
• Stock thickness range from 0.3mm up to 50mm
• Shore A hardness range between 30° to 90° shore
Product Parameters
Material | NR (Natural) | CR (Neoprene) | HR (Butyl) | SBR | NBR | EPDM | FKM (Fluororubber) | Silicone |
Hardness (Shore A) | 40-85 | 50-80 | 50-80 | 40-85 | 40-90 | 40-85 | 70-80 | 40-75 |
Strength Tensile (Mpa) | 3-20 | 3-20 | 3-8 | 2-10 | 3-20 | 3-15 | 6-8 | 6-10 |
Density (g/cm3) | 1.1-1.6 | 1.3-1.7 | 1.3-1.9 | 1.3-1.9 | 1.1-1.6 | 1.4-1.6 | 1.3-1.9 | 1.0-1.4 |
Elongation (%) | 200-650 | 200-500 | 200-500 | 150-400 | 200-500 | 200-500 | 200-400 | 200-700 |
Thickness | 1-100mm |
Length | 1-50m |
Width | 2m max |
Color | Black,Red,White,Orange,Grey,etc. |
Surface Finish | Both sides smooth; Both sides cloth marked; One side smooth,one side cloth. |
Fabric Insertion | 1 ply or multi plies as per client's request. |
Certifications
Packaging & Shipping Packaging Details
rubber sheets
1. put them in woven bag with wood pallet
2. wrapped by plastic film with wood pallet
Port Tianjin xingang
Company Profile Hebei TRX Rubber Products Co., Ltd is a leading professional manufacturer of conveyor belts & conveyor accessories in China. The main workshops cover 20,000 square meters in the total 60,000 square meters of the plant. The applied technology and equipment in the advanced production lines are state of the art in the industry. The sales headquarters is located in the capital of China, Beijing with branches in domestic and abroad.
It specializes in following three series: 1) Heavy-duty Conveyor Belt, including universal EP/NN and CC Belt, Chevron Belt, Oil Resistant Belt, Abrasion Resistant Belt, Heat Resistant Belt, Fire Resistant Belt, Chemical Resistant Belt, Sidewall Belt, Flat Transmission Belts, 2) Rubber Sheets, including SBR, NBR, NR, CR, EDPM, Rubber With Insertion 3) Conveyor accessories. These three series of products conform to RMA, DIN, ASTM and ISO specifications.
Its products, honored with "The most Advanced level of Products" by the Committee of Science and Technology, have been widely used in mining and quarrying, power stations, steel plants, bulk cargo terminals, cement industry, and other material handling fields. With great success in domestic market, it has been focusing on global market with several hundreds of foreign valued customers in Asia, South America, North America, Africa and Europe.
The company mission:
1.Supply one-stop outstanding service to global customers.
2. Engage in complete solutions with conveyor belting and power transmission belting.
3. Persist in technology improvement and quality control in the whole process of production and service.
Application These are suitable for:
Concrete plants | Recycling and mineral processing plants |
Waste sorting & Compost machines | Metal processing industry |
Scrap recycling | Timber industry |
Sawmills | Excreta & sewage sludge conveying |
Corn, rape and soilages conveying | Solvent extraction plants |
Paper industry |
