Automatic Feeding CCD Mark DOT CNC Knife Cutting Machine with V Slot Knife/Drag Knife/Creashing Knife/Kiss Cut Knife

Product Description

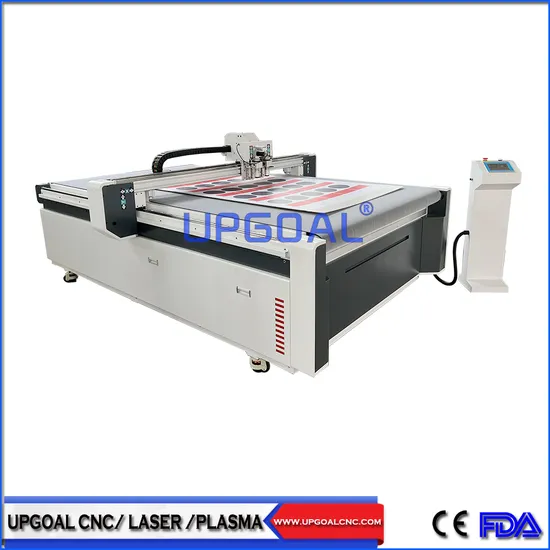

Automatic Feeding CCD Mark Dot CNC Knife Cutting Machine with V Slot Knife/Drag Knife/Creashing Knife/Kiss Cut Knife
Application
UPGOAL cnc vibration knife cutting machine is widely used in cutting paper materials, automotive interior processing industry, used in the cutting processing of car seat covers, seat cushions, steering wheel grips, leather processing industry, leather cutting and punching, household fabrics, cutting of new technology materials and other industries.

Cutting materials
Cardboard, corrugated paper, honeycomb paper, leather, glass fiber, carbon fiber, fabric, self-adhesive, film, foam board, acrylic board, rubber, gasket material, clothing cloth, footwear material, luggage material, non-woven fabric, carpet, Sponge, KT board, PU, EVA, XPE, PVC, PP, PE, PTFE, ETFE and composite materials.

Features
1. Automatic feeding system, with rubber roller pressing, can realize continuous feeding and recognition cutting, and can realize internal and external cutting of contours. The software can realize human-computer interaction and confirm the cutting path in real time. When cutting multiple graphics, the graphics size can be specified for cutting, increase working efficiency.
2. CCD mark dot positioning cutting system, vision aided camera is used for accurate positioning of print materials.
3. Adopted famous RuiDa RDD6584V touch screen CCD cutting control system supports both USB and Ethernet connection, has a knife cutting controller with tool direction following control function. It integrates the processing of tools such as vibrating cutters, round cutters, milling cutters, and pressing wheels. It also integrates feeding, circular punching, and V-shaped special punching. Hole, pen processing, red light positioning and a series of functions.
4. Main knife: The ultra-high frequency 100W oscillating knife(CLT brand), eliminates the irregularities of manual cutting, the limitation of the accuracy of the punching machine, and the scorching odor of the laser cutting machine. High efficiency and fast speed make leather and PU cutting become artistic enjoyment.
5. Equipped with various cutting tools: creasing wheels/V slot cutting knife/drag knife/kiss cut knife, flexibly replace different tools according to different materials/different processes, and quickly complete various processes such as full cutting, half cutting, milling, drilling, creases, markings, V-grooves, and contour recognition cutting. The cutting and indentation are formed in one go, which is simple and efficient!
6. China HCFA 750W servo motor driver for XYZ-axis and Panasonic Japan servo motor driver for DCBA axis, ensuring the processing speed & precision.
7. Whole cast aluminum vacuum table with adsorption felt, ensuring the machine stablity. And, equipped with 2 sets 7.5KW+3.0KW high pressure air cooling turbofan, high adsorption ability.
8.Imported PMI, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity, high precision, smooth and steady running. Adopt WMH brand, Herion Helical gears pinion and rack transmission for X and Y axis, higher running speed and efficiency, and more durable.
9.With high-sensitivity anti-collision device, built-in automatic sensing, safe operation.
10.Supports multiple formats such as DXF, PLT, HPGl, etc., without cutting tools, saving manpower and material resources, and simplifying the work process.
11.Improve the cutting speed and efficiency, and provide strong support for high-speed cutting of the electric vibrating knife with a frequency of up to 25,000 times/min, up to 1000mm/s.
12. Smooth operation, fine and smooth incision, powerful function, can effectively solve various problems such as proofing.
13. Semi-auto lubrication system more convenient for maintenance.
Technical Parameters

Model	UG-1625V
Effective cutting area	1600*2500mm
Working table	Fixed aluminum adsorption vacuum working table with adsorption felt
Material fixed method	Vacuum suction system
Cutting head	Main knife: oscillating knife( CLT,100W) Others: creasing knifes/V slot knife/kiss cut knife/drag knife
Control system	RuiDa RDD6584V(EC) CCD touch screen control system
Cutting software	RuiDa VcutWorks & RuiDa V2
Cutting speed	0-1,500mm/s(according to different cutting materials)
Cutting thickness	≤40mm
Cutting accuracy	≤0.1mm
Drive system	China HCFA 750W servo motor driver for XYZ-axis and Panasonic Japan servo motor driver for DCBA axis
Guide rail	PMI, Taiwan, linear square guide rail
Transmission system	Helical rack and pinion transmission (WMH brand, Herion )
Vacuum pump	Air cooling, 2 sets, 7.5KW+3.0KW, with silencer
Safety device	Anti-collision system
Graphic format supported	PLT, DXF, AI, etc.
Compatible	CORELDRAW, PHOTOSHOP, AUTOCAD, TAJIMA, etc.
Voltage	AC220V ±10%,50/60Hz, single phase or AC380V ±10%,50/60Hz, three phases
Machine size	3275*2510*1350mm
Net weight	850kgs
Gross weight	1000kgs
