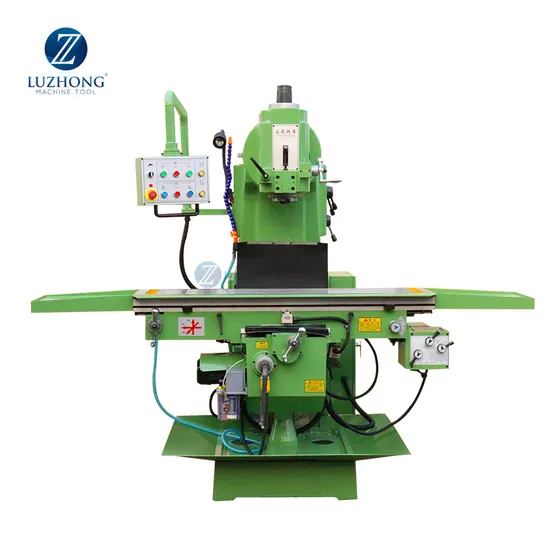

Vertical X5036K Universal milling machine with high quality precision

Product Description

Vertical X5036K Universal milling machine with high qulity precision
Product Description
The main performance characteristics:
1. The use of the moment type of rail steel is good, strong stability
2. High frequency quenching of working table and guide surface
3. Working table Y, X are both gear drive automatic feed, Z for electric lift
4. X5036B - type slider (1200mm) to make the work of the working table longer, better stability
5. B type milling head with automatic feed device can be customized according to user requirements of the X direction of the work table 1300mm
Product Parameters
Product main technical specifications:

Specifications	Units	X5036K
Table size	mm	1500×360
Table travel	mm	1000/320/450
T slot(number-width-pitch)	mm	3-18-80
Spindle taper		ISO50 7:24
Spindle speed range	rpm	60-1800(12steps)
Distance between spindle nose and table surface	mm	60-540
Distance between spindle axis to column surface	mm	360
Main motor power	kw	5.5
Weight	kg	3300
Overall dimension	mm	2700×2300×2400

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
