Customized Stone machine for Big Stone Block Granite Multi Cutter and Marble Multi Cutter

Product Description

Product Description

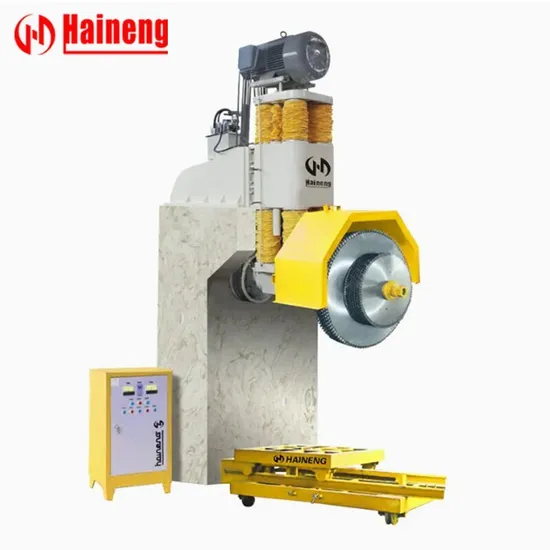

Multi-blade Hydraulic Stone Cutting Machine uses large span of four guide column structure,host rigidity, high cutting efficiency , greatly improved blade life and lower power consumption,meanwhile guide column using oil lubrication, with better lubrication, more convenient maintenance;especially according to the stone worse environment to design the multi-layer modular sealing device,with waterproof , dust-proof and anti-spill , improve the using life of the machine;quarry table using bilateral gear drive, effectively avoiding the skip deviation of the phenomenon,better slicing precision; the machine with compact structure ,easy operation,adopts high-quality materials , especially suitable for cutting domestic granite blocks.
Product Parameters

Multi-blade Hydraulic Stone Cutting Machine
Type	unit	D8	D12	D14	D18	D22
Blade diameter	mm	Φ1650(Φ2200)
Number of blades	pcs	8(Φ1650×4+Φ980×4)	12	14	18	22
Lifting stroke	mm	1100
Max.cutting size	mm	3500×1550×900
Power of main motor	kw	65
Water consumption	m³/h	26
Total weight	kg	9000

The lifting guide column adopts 4 round steels whose surface is treated with precision hard chrome, which has the advantages of small gap, good overall rigidity, small shaking during cutting, and long service life.	The new composite material "nano nylon" fabric is used, which has the characteristics of waterproof, dustproof, tensile strength and anti-wear, etc. The use of a detachable zipper structure is conducive to easy replacement.
The contact surface between the lifting guide column and the middle seat adopts a guide bush made of DuPont "polytetrafluoroethylene" polymer material in the United States; the surface of the guide bush is rolled into a circular oil storage pit, which can work normally under the condition of less oil or intermittent oil break. It has the advantages of low friction coefficient, good wear resistance and long service life.	Oil tank assembly - oil pump: solenoid valve, etc. are imported from Taiwan.
The lifting cylinder adopts the combined oil seal imported from Germany (Bose Xia board), which consists of a five-piece piston seal composed of an elastic sealing ring, two retaining rings and two guiding rings. The service life is several times longer than that of common seals.	The left and right travel of the trolley adopts an inductive magnet structure, which has the advantages of low maintenance rate, and the main components are imported components, such as Siemens relays.

Processing
Packaging & Shipping
Company Profile

CertificationsExhibitionMarketing SystemCompany information
After Sales Service
1.Parts & Accessories Quick supply for needs
2.Troubleshooting by phone, e-mail, or WhatsApp/Wechat
3.Provide paper or electronic version of the product manual
FAQ
Q:what is the MOQ?A:1 set.Q:How's your machine's quality?A:We are a professional stone machine manufacturer more than 20 years, we've sold lots of machine at home and abroad. We will continuously provide new and old customers more and better services to help your business booming.
90% of our factory's machine are exported, including for the United States, Brazil, Russia,Algeria,Iran, Egypt, Morocco, Georgia, and other more than 10 major purchasers and for more than 20 Chinese trading companies OEM, and we also directly export too, the machines are exported to over 85 countries and regions.Q:What's the warranty time?A:The whole machine is guaranteed for one year, including electrical components and mechanical partsQ:Whether the machine can be customized according to our requirements?A:Customization available,Experienced techs for all your questions.
The factory owner is a mechanical engineer with more than 25 years of design and manufacturing experience. A variety of products have been customized for different customers in more than 20 countries.
