Zlj5360thbkf 52X-6rz Zoomlion 30 38 40 43 47 52m Sitrak Truck Mounted Cement Concrete Pump Truck for Sale

Product Description

Product Description

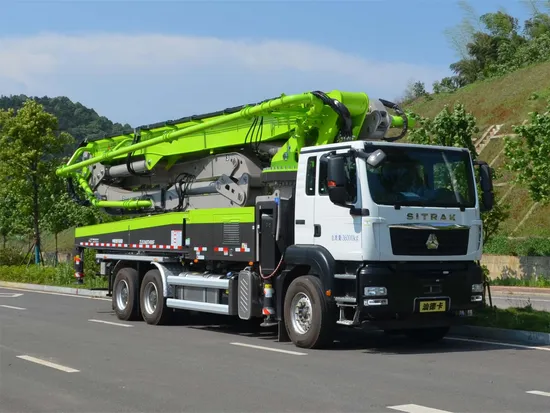

ZLJ5360THBKF 52X-6RZ Zoomlion 30 38 40 43 47 52m Sitrak Truck Mounted Cement Concrete Pump Truck for Sale
Comply with regulations, wide range of fabrics, and good site adaptability
The axle load of the whole machine complies with the regulations, and there is no need to worry about license plate . registration, highway driving and annual inspection. The maximum fabric depth is more than 2 meters larger than that of its peers, and the fabric range is wide The outriggers occupy the smallest area per meter and are more suitable for construction in narrow sites. The opening height of the big arm is 4.5 meters smaller than that of its counterparts, making it easy to open the arm.

Low operating costs
Valve block-less pumping hydraulic system, the system consumes less energy and is more fuel-efficient Dual fuel tanks with independent functions double the life of hydraulic oil

Reliable chassis and strong battery life
Jiefang/Shantou Ka chassis, domestic first-line brand, reliable performance, Weichai/MAN engine, strong power, high market recognition, aluminum alloy 600L large fuel tank, strong endurance

Detailed Photos

Product Parameters

Model	Unit		52X-6RZ
Pump Unit	Max. Theor. output	m3/h	180
	Max. Theor. concrete output Pressure	MPa	9
	Rated working pressure	MPa	35
	Pumping frequency	min-1	27
	Hopper capacity	L	600
	Filling height	mm	1540
	Hydraulic system type		closed loop
	Distribution valve		S valve
	Oil cylinder dia.×stroke	mm	φ130×2100
	Concrete cylinder dia.×stroke	mm	φ230×2100
	Hydraulic oil cooling		Wind cooling
	Recommended concrete slump	cm	12~23
	Max. aggregate dimension	mm	40
Boom Section	Structure type		52X-6RZ
	Placing depth	m	52
	Max. horizontal distance	m	48
	Max. placing depth	m	37.6
	Slewing angle		±270°
	Boom number		6
	The length of boom section	mm	10410/9120/8690/9680/6600/3500
	Sections folding angle		90°/180°/180°/240°/195°/210°
	Pipe diameter	mm	125
	End hose length	mm	3000
	Min. height of opening placing boom	mm	10900
	Outriggers span (front×rear×side)	mm	9300×11975×10422
