Fiber Laser Cutting Machine 1000W for Mental 3000mm*1500mm

Product Description

Product Description

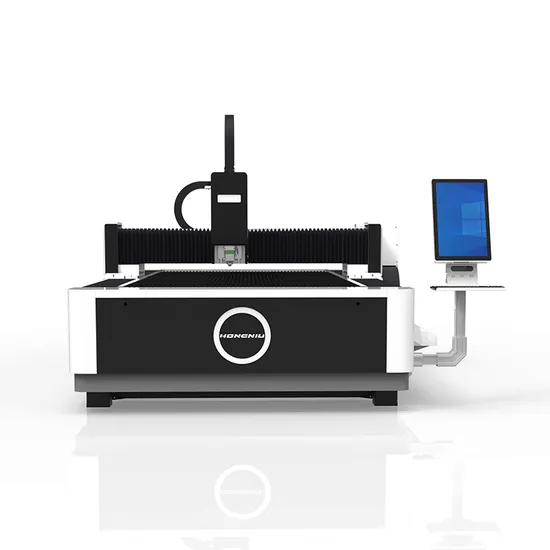

Hongniu E type laser cutting machine
Welecome to Shandong Hongniu Laser Equipment Co.,Ltd

1000w-6000w fiber laser metal cutting machine

Advantages
1. Low cost
2. High-performance. Imported the original packaged fiber laser, with stable performance and the lifespan is over 100,000 hours;
3. High speed and efficiency
4. The cutting edge looks and the appearance is smooth and beautiful;
5. Imported the transmission mechanism and servo motor, and high cutting accuracy;
6. Dedicated software enables graphic or text to be instantly designed or processed. Flexible and easy operation.
Machine Parameter

Machine Model		HN-3015E
Working area:		3000mm*1500mm
Machine bed		Tube welding
Gantry structure		Aviation aluminum
Laser power		Raycus
Laser cutting head		RayTools
Servo motor and driver		Delta Z400/X850W/Y1300W
Control system		RayTools
Reducer		Japan Shimpo
Guide rail		PEK
Racks		LEITESEN
Electrical Control Components		Omron
Special chiller for fiber laser	Hanli
Air-conditioning	Hongniu
Dust removal system	Double duct
Rated parameters of power supply	3 Phase AC 380V 50Hz
Acceleration speed	1.2G
Maximum speed ( not cutting)	132m/min
X, Y, Z travel	3100*1520*100
Packing weight	3000KG
packing size	4600*2280*2200

Machine Details

Laser Source	Auto-Focus Laser Cutting Head
Brand: Raycus 1:Direct control of all the fiber laser functions; 2:Synchronized control of the laser source; 3:Overall power control; 4:High speed perforation; 5:Edge machining function; 6:Cutting data library; 7:High speed fiber laser cutting.	Brand: Swiss RayTools 1 Multiple protective lenses: protective lenses, efficient protection of collimating and focusing lenses 2 Auto focus: Automatic focusing, reducing human intervention, focusing speed 170mm/s, adjustment accuracy 0.05mm 3 Highly dustproof: IP65 level dustproof, dustproof and no dead angle 4 High speed cutting
Servo Motor	Cooling System
Brand: Taiwan Delta The servo motor is controlled by three methods of position, speed and torque to realize high-precision positioning of the transmission system. Powerful motion control functions, long service life, and stable operation help mechanical equipment to be efficient and convenient. Synchronization can also optimize the production efficiency of equipment to meet the upgrading needs of industrial machinery and equipment	Brand: Hanli Performance characteristics of Hanli HL series fiber laser chiller: 1. Specially developed for fiber laser equipment, perfectly compatible with all brands of lasers. 2. A full range of environmentally friendly refrigerants 3. Stable and reliable performance, low failure rate, energy saving and power saving.

Samples Show

Carbon Steel	Stainless Steel
Aluminum	Brass

Packaging & Shipping
High power 20000W 30000W metal fiber laser cutting machine for thick metal sheet
1.Timely delivery. Each machine is arranged with precise assembly steps without any delay.
2.After-sales services and Guarantee. We offer 2 years warranty, during the period, any problem happen, we are responsible to solve. And if any part of the machine was broken, which happens rarely,
3.Packaging.Whole film packaging machine; anti-collision package edge; fumigation-free plywood wooden box and pallets with iron binding belt.
Quality Control System
Company Profile
Shandong Hongniu laser Equipment Co.,Ltd is specialized in RD, manufacturing and marketing of large scale CNC cutting machines and welding equipment. Our main products include fiber laser cutting machine,CNC plasma cutting machine, gantry plasma cutting machine, CNC punching machine, laser cutting machine, 3D laser cutting machine, 3D welding machine and so on. As a domestic specialized CNC researching company. we dedicated to providing excellent after-sale service, technology-leading and reliable products as well as integrated technology solutions for our business parther.Customers satisfaction is always the exclusive purpose of our service.

FAQ:
Q1: I know nothing about this machine, what kind of machine should I choose?
Just tell us what you want to do by using laser machine, then let us give you professional solutions and suggestions.
Q2: Does the machine can be customized according to my requirements ?
Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
Q3: What about after-sales service?
We offer 24 hours online video call to solve your problems, we also can provide oversea service all over the world.
Q4: When I got this machine, but I don't know how to use it. What should I do?
We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or Skype and e-mail.
Q5: If some problems happen to this machine during warranty period, what should I do?
We will supply parts during machine warranty period if machine have some problems. While we also supply life long after-sales service. So any doubts, just let us know, we will give you solutions.
