Granite Block Machine Single Blade Horizontal Stone Cutting Machinery Df-2000s Factory Price Bridge Cutting Machine

Product Description

Product Description Block Cutting Machine With Horizontal For Marble Granite DF-1600S/1800S/2000S uses a PLC system and Human-machine interface, combined with an Ultra-high precision rotary encoder to slice, uses an inverter to control left-right feeding and adjusts the speed according to the stone material. It uses a hydraulic lifting system, and the forward-backward slicing uses high-precision screw nut driving. The key part adopts imported good-quality spare parts. Combined with horizontal blade designing, cutting the sheet roots of plates directly, eliminates the trouble of unloading plates manually, improving efficiency. Horizontal Blades use a hydraulic system, and up-down rising uses a guide system, which is more reasonable and stable. Thus the whole machine is featured with high cutting efficiency, high slicing precision, the flatness of plate after cutting, high stability, and easy-operating to suit granite and marble block with high value.
Note:360° rotating worktable is optional.
Features: The bridge-cutting machine is mainly for granite and marble, it adopts multidisc and PLC programmable control and man-machine interface, combined with a super-precision rotary encoder for slicing, uses a frequency converter to control left-right feeding, and adjusts the speed according to the stone material. It adopts a hydraulic lifting system and forward-backward slicing adopts high-precision screw nut driving, automatic slicing, and main spare parts adopt imported good-quality materials. The block can be placed on the ground directly, saving the cost of trolley and maintenance. It is especially suitable for cutting high-value granite and marble block because of its high-efficiency cutting rate, high precision slicing, flatness, stability, and easy operation.
Technical Parameters:

Appellation	unit	DF/PC-1600S/1800S/2000S
Max.blade diameter	mm	Φ1600/Φ1800/Φ2000
Max. vertical length	mm	4000/3800/3600
Max.worktable width	mm	2200
Max. vertical stroke	mm	1350
Saw blade diameter of horizontal cutting	mm	Φ400
Max. vertical stroke of the main column of horizontal cutting	mm	750/850/950
Main generator power of horizontal cutting	kw	15
Water consumption	m³/h	10
Power of main motor(optional)	kw	75/90
Total power	kw	100/115
Dimension(L×W×H)	mm	8000×4400×3700(from base to the highest point)
Total weight	kg	13000

We provide customization products please contact our sales with detailed requirements, and we will manufacture machines accordingly:
Special customization size:
Crossbeam length: 6500-10500mm
Side beam length:4500-8000mm

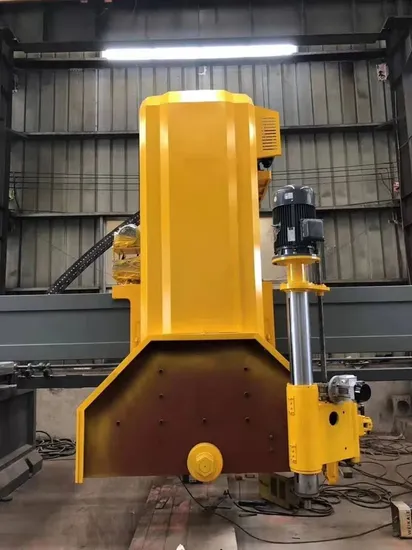

Details Images
Blade Combination Details:

Blade: two ways of blade combination
1. Big-medium-small combination
2. Big-small combination
Can be customized according to the actual needs of customers

Production Process:
1. Customer needs to prepare two sides foundation first with the drawing provided by us
2. Install machine and blades
3. Machine cut
4. Take down the slab from blocks one by one, we can make a mold to support the slab, the machine can cut directly to the end and the slab will not fall apart
5. Trolley is optional according to customers' requirement
Factory Exhibitions
After Sales Service:
We provide skilled and rich experience technicians for installation and after-sale service.

Pre-Sales Service * Inquiry and consulting support. * Configure the best machine line according to customer condition * View our Factory.

After-Sales Service * Training on how to install the machine, training how to use the machine. * Engineers available to service machinery overseas. * Lifetime technology maintenance in free and spare parts supply. Related Products

Packaging & Shipping
The machine will be consolidated tightly and safely within the container and delivered by sea or railway, we offer fast delivery and prompt reaction.

FAQ:
Q: How do I install and operate the machine, after receiving it?
A: For simple machines, we will provide sufficient installation, operation, and maintenance instructions, and videos, which will make the whole thing as simple as possible for users. For high-tech machines, our engineers can fly abroad to help you install & debug the machine, and teach you how to operate and maintain the machine properly in the future.

Q: Manufacturer Profiles
A: We are the Top 10 stone-cutting machine manufacturers with ISO & CE certificates since 1985.

Q: We own 70% of China's market share in the special shape stone cutting machine series.
A: We are a company which is especially for producing stone machines for exporting.

Q: Quality Control
A: We have our own experienced QC. Our machine will be strictly inspected. We will provide a Testing Video for each machine before shipping out if required by the customer.

Q: Delivery time
A: Based on order quantity, normally three weeks against payment.
