Stainless Sheet Feed Silo PARA Granos with 100-300 Ton Grain Silos

Product Description

-company profile

Our company has a large number of skilled technicians, professional teams and experienced after-sales service teams, which can provide users with solutions and equipment from a single equipment to a complete set of grain cleaning, drying, storage, and selected systems. And professional customized service technical support, reliable spare parts supply and high-quality after-sales service.
Our company has more than 30 installation teams throughout the provinces and regions of the country, complete qualification documents, installation experience, reliable construction volume, 15 days to complete the installation task of a single tons of warehouse, the fastest so that the grain can be effectively managed and protected. The construction management of the project is strict. From arrival to acceptance, the company will always pay attention to the installation quality and progress, install monitoring equipment on the site, and keep track of the project situation at any time. After the installation of the equipment, the company has standard acceptance specifications for acceptance. Our company can provide application form, construction log, equipment operation record, raw materials and equipment certificate, material list and other materials. After the completion of the project, our company sent a special person to guide the use until the church. Each project of the company will do a satisfaction survey, for the survey analysis and research, improve the company's system and management, so that Fengtu's next project to a higher level.
-critifications
-specifications and models

[1]flat bottom silo
The surface of the warehouse body is made of 440 hot-dip galvanized high-strength plate to ensure that the galvanized amount per square meter is not less than 275g, which has a strong anti-corrosion effect. It is difficult to dissolve in water, and plays a good protective role for the steel fastener base. Steel plate warehouse plate is connected by high bolt, so that it is anti-corrosion and anti-oxidation and high strength, no deformation, easy to disassemble, repair, maintenance and replacement. The service life of the warehouse body is more than 30 years. According to customer needs, special areas, coastal, southern hot and humid areas, warehouse roof galvanized layer can be 350g/m2, warehouse body can be 450g/m2- 600g/m2
10.9 class high-strength bolts can bear the load is much larger than the ordinary bolts of the same specification, the screw, nut and washer of the bolt are made of high-strength steel, high-strength bolt connection is through a large tightening pre-tension in the bolt rod to clamp the plate of the connection plate, enough to produce a lot of friction, thereby improving the integrity and stiffness of the connection.
More than 3.500 tons of warehouse ring beams, we use 8-12mm high-strength manganese steel welded, high strength, strong force. (Galvanized ring beams can be customized.) W type external column: made of high-strength manganese plate processing, large expansion area, high strength, no hanging grain, easy maintenance, anti-corrosion method using hot-dip galvanizing treatment, no rust.

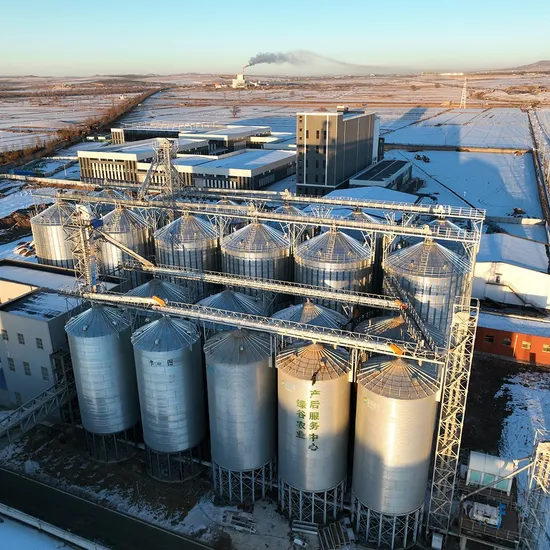

[2]hopper bottom silo
Our company uses 3D engineering design software for product design, so as to achieve standardization, data and modularization
5. Our company has more than 30 installation teams throughout the provinces and regions of the country, complete qualification documents, installation experience, reliable construction volume, 15 days to complete the installation task of a single tons of warehouse, the fastest so that the grain can be effectively managed and protected. The construction management of the project is strict. From arrival to acceptance, the company will always pay attention to the installation quality and progress, install monitoring equipment on the site, and keep track of the project situation at any time. After the installation of the equipment, the company has standard acceptance specifications for acceptance. Our company can provide application form, construction log, equipment operation record, raw materials and equipment certificate, material list and other materials. After the completion of the project, our company sent a special person to guide the use until the church. Each project of the company will do a satisfaction survey, for the survey analysis and research, improve the company's system and management, so that Fengtu's next project to a higher level. 1. The surface of the warehouse body is made of 440 hot-dip galvanized high-strength plate to ensure that the galvanized amount per square meter is not less than 275g, which has a strong anti-corrosion effect. It is difficult to dissolve in water, and plays a good protective role for the steel fastener base. Steel plate warehouse plate is connected by high bolt, so that it is anti-corrosion and anti-oxidation and high strength, no deformation, easy to disassemble, repair, maintenance and replacement. The service life of the warehouse body is more than 30 years. According to customer needs, special areas, coastal, southern hot and humid areas, warehouse roof galvanized layer can be 350g/m2, warehouse body can be 450g/m2 - 600g/m2.
2.10.9 class high-strength bolts can bear the load is much larger than the ordinary bolts of the same specification, the screw, nut and washer of the bolt are made of high-strength steel, high-strength bolt connection is through a large tightening pre-tension in the bolt rod to clamp the plate of the connection plate, enough to produce a lot of friction, thereby improving the integrity and stiffness of the connection.
More than 3.500 tons of warehouse ring beams, we use 8-12mm high-strength manganese steel welded, high strength, strong force. (Galvanized ring beams can be customized.) W type external column: made of high-strength manganese plate processing, large expansion area, high strength, no hanging grain, easy maintenance, anti-corrosion method using hot-dip galvanizing treatment, no rust.
4. Our company uses 3D engineering design software for product design, so as to achieve standardization, data and modularization
[3]water tank
These tanks are structurally strong and watertight for years of dependability. FTsilo steel water storage tanks utilize the latest technology with a bolted steel outer shell and a heavy duty liner. Available in capacities from 6-7217m3, as well as custom capacities, there is a size to meet your needs. Several complete package options and accessories are available to customize your tank for your application and project specifications. The modular design of our water tank enables it to be packaged flat for easy transportation, even to remote areas. The tanks are assembled at the project site by trained installation professionals.
Common parameters of water tank product

Diameter (meter)	1 ring(cubic metre)	2 ring	3 ring	4 ring	5 ring	6 ring	7 ring	8 ring	9 ring
2.7	6	13	19	26	32	38	45	51	289
5.5	27	53	80	106	133	160	186	213	239
6.417	36	72	109	145	181	217	253	290	326
10.084	89	179	268	358	447	536	626	715	805
11	106	213	319	426	532	638	745	851	957
14.668	189	378	567	757	946	1135	1324	1513	1702
15.584	214	427	641	854	1068	1281	1495	1708	1922
17.418	267	533	800	1067	1334	1600	1867	2134	2401
20.168	358	715	1073	1430	1788	2146	2503	2861	3219
21.084	391	782	1173	1563	1954	2345	2736	3127	3518
23.835	499	999	1498	1998	2497	2997	3496	3996	4495
24.751	539	1077	1616	2154	2693	3232	3770	4309	4847
26.585	621	1243	1864	2486	3107	3728	4350	4971	5592
27.501	665	1330	1995	2660	3325	3990	4655	5320	5984
29.335	757	1513	2270	3026	3783	4540	5296	6053	6809

-corollary equipment
-Exhibitions and customers

-our advantages
--1,How do we assure the silo solidity?
1- Roof Top:
The roof is designed to stand up even the harshest environment of extreme snow disaster with the echo of top and down part strong structure and connecting radial ribs which is Z interconnected again itself. Roof panels incorporate with ribs with over and under lap profiles ensuring a precise fit.
2- Body Steel Plate:
A commercial 275g/m2 double galvanized steel coating increases life and durability.450g/m2 and 600g/m2 coating available for customized orders. Each sidewall sheet is manufactured from high-tensile steel that has the ability to overcome extreme power, pressure.
3- Stiffeners:
FTSILO's high tension stiffener(can be located inside or outside silo) profiles make bins stronger allowing silos to stand well even under an extreme hurricane. Base stiffener boots
are coated so they won't rust over time.
4- Wind Ring: For tall silos or that need to resist heavy wind.
Wind ring and brackets reduce bolt holes in stiffeners; swaged technology ensure silo power load capacity
5- High strength bolts and screws:
FTSILO's high strength bolts paired with sealing washers, coated hardware provides added protection from rust to ensure your grain bin stands the test of time.
6- Manhole: double layer security locking manhole system.
7- Wide Flange H Beam Support Structure:
Wide flange H-Beam support structure has the strength and durability to support the heavy hopper silo loads long time, and with consideration of wind and seismic requirements.
--2FTSILO Is Expert for the Whole System Used for Various Industries.
Starting from the initial project analysis, to develop your custom grain silo system plan and to the final turnkey completion of the project, FTSILO's engineers will stand together with you to get the best matching profitable solution.
Our grain silo size starts from 200tons to 15000ton, with compatible auxiliary systems of grain receipt, cleaning, drying, lifting, conveyor, grain condition monitoring system, unloading, etc.
FTSILO has rich experience in building silos, the farm used to silo, seaport silo group, river transportation silo, flour mill silo, edible oil production factory, pellet line, paddy rice processing factory, starch line, seeds storage, etc.
The matching auxiliary systems determine the smooth running, efficiency, energy-saving, and stability of the whole silo system. The scientific configuration and quality updating of auxiliary systems has always been our forever research, modification, and improving area from our continuous projects practice.
The principles are meeting capacity as required, high efficiency, no waste, energy-saving, and for sure stability and reliability.
