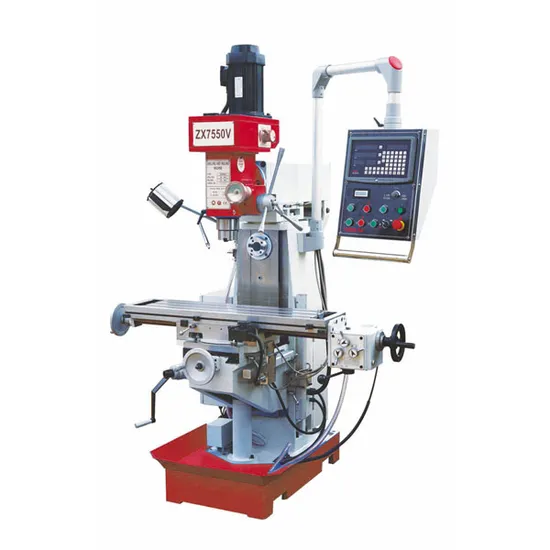

Good Quality Belt Drive Drilling and Milling Machine Zx7550V
| US$2,900.00-3,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
ZX7550V
Controlling Mode
Artificial
Automatic Grade
Automatic
Precision
High Precision
Certification
CE
Condition
New
Max.Drilling Diameter
50mm
Max.End Milling Width
100mm
Max.End Milling Diameter
25mm
Max.Boring Diameter
120mm
Max.Tapping Diameter
M16mm
Spindle Taper
ISO40
Overall Size
1280×1285×2080mm
Motor Power
2.2kw (H)/2.2kw (V)
Machine Weight
850/1000kgs
Spindle Travel
120mm
Transport Package
Wooden Case
Specification
ZX7550V
Trademark
KY
Origin
China
Production Capacity
150-200 Sets /Month
Product Description
| Main technical parameters | ZX7550V |
| Max.drilling diameter | 50mm |
| Max.end milling width | 100mm |
| Max.end milling diameter | 25mm |
| Max.boring diameter | 120mm |
| Max.tapping diameter | M16 |
| Distance from spindle end face to table surface | 50-350mm |
| Spindle speed range | (V) Low speed 140-1050 r.p.m High speed 280-2100 r.p.m (H) 70-1600 r.p.m |
| Spindle taper | ISO40 |
| Spindle travel | 120mm |
| Table size | 800×240mm |
| Table stroke | 400×230x340mm |
| X axis of the table diameter | 25mm( pitch 4mm) |
| Y axis of the table diameter | 28mm (pitch 4mm) |
| Z axis of the table diameter | 30mm (pitch 6mm) |
| Torpedo stroke | 430mm |
| Vertical column with square bus of guide width | 196mm |
| Overall size | 1280×1285×2080mm |
| Motor power | 2.2KW (H)/2.2KW (V) |
| Machine weight(kg) | 850/1000kgs |
ZX7550V, Variable Frequency Drilling and Milling
Features:
1. Use as milling machines and drill press
2. Easily shiftable gear drive high low two steps spindle speed.
3. Variable spindle speed control.
4. Head swivels into the horizontal level on both sided 90 degree.
5. Manual fine-feed for the spindle quill
6. With horizontal milling spindle.
7. Wotktable can be swivel ±45 degree.
OEM FEATURES:
Conventional milling machine without clp or cnc control, with transmission by gears lubricated in oil, vertical head with 8 variable speeds changed by positioning levers rotations between 140 to 2100rpm, horizontal spindle with transmission by [pulleys with 9 variable speeds changed by positioning the belts with rotations between 70 to 1600rpm, both with ISO-40 cone, table with dimensions 240mm x 800mm and NR12 protection fairing with interlock key, X axis stroke 400mm, Y 240mm, Z 340mm, X table spindle diameter 25mm pitch 4mm, Y spindle of the table diameter 28mm pitch 4mm, Z spindle of the table diameter 30mm pitch 6mm, torpedo with 430mm stroke, vertical motor power 2.2kw, horizontal motor power 2.2kw, vertical column with square bus of guide width 196mm. Electrical controls installed on a panel fixed to the machine head.
