Low Price, High-Quality Welding Fixture Table, Chinese Welding Table

Product Description

Product Parameters

No	Product name	Size(mm)	Item number
1	3D Steel /Cast iron Welding table	1000x1000x200	TJ2810001
2		1200x1200x200	TJ2810002
3		1500x1000x200	TJ2810003
4		1500x1500x200	TJ2810004
5		2000x1000x200	TJ2810005
6		2400x1200x200	TJ2810006
7		3000x1500x200	TJ2810007
8		4000x2000x200	TJ2810008
9	2D Steel / Cast iron Welding Table	1000×1000x150	TJ2810009
10		1200×1200x150	TJ28100010
11		1500×1500x150	TJ28100011

For more solutions,please contact us.
Product Description Welding Table:
1.The welding table is divided into two series according to the hole system: Φ28 and Φ16.2.It is divided into two-dimensional flexible combination tooling and three-dimensional flexible combination tooling according to the structure.3.The tooling platform is divided into steel piece platform and cast iron platform according to materials.4.The grid is engraved with corresponding grid lines.5.According to customer requirements, the measuring scales can be drawn on the four sides of the platform6.The Nitride finish protects the welding table against rust and weld spatter to make sure that the welding tables surface is kept extremely clean and accurate for fixturing.

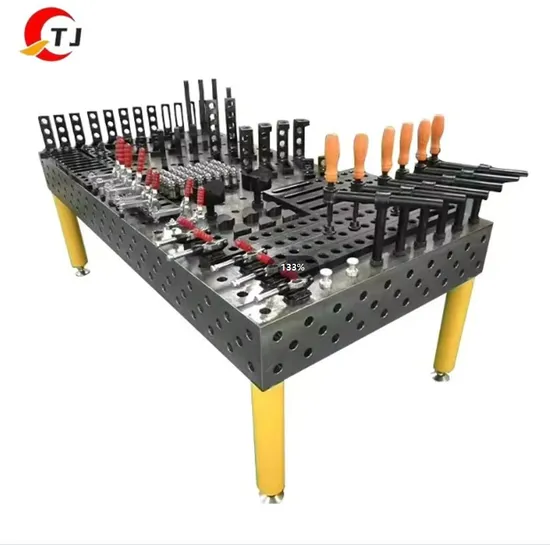

5-Sided 3D welding table	1- Sided 2D welding table
This welding workbench has five work surfaces, namely its front and four sides. The positioning piece can be installed on any of its five working surfaces. Additionally, the welding table can be expanded via any of its five work surfaces.	2D Welding Table is a typically flat and stationary welding table which used for the purpose of welding various metal components together in workshops, factories and other industrial environments

Plasma nitriding three-dimensional flexible welding platform (material steel Q355/cast iron HT300)

Plasma nitriding three-dimensional flexible welding platform (material steel Q355/cast iron HT300)

-D28 system:
Hole diameter: 28mm (Drilled and milled hole)Table thickness: 24-27mmgrid spacing: 100±0.05mm2 ton weight loading capacity. -D16 system:
Hole diameter: 16mm (Drilled and milled hole)Table thickness: 14-17mmgrid spacing: 50±0.05mm2 ton weight loading capacity.Optional components:1. Tools for supporting: U-Shaped cube case, L-shaped cube case, Angle supporting, and Angle gauge.2. Spare parts for Locating: positioning square, positioning ruler, flat square, V-shaped positioning piece.3. Tools for clamping: fixed quick clamping piece (screw clamping), retractable clamping piece (screw clamping), 45 degree clamping piece (screw clamping), etc.4. Tools for fixing: quick locking pin, countersunk locking pin, countersunk quick locking pin.
5. Accessories and auxiliary parts: height adjuster, lifting ring, tool cart, grounding device, adjusting gasket, hexagon wrench, nylon brush, oil stone, oil can.
Our Advantages1.Flexible
The three-dimensional welding platform is strong and can withstand high loads. All five sides are processed with regular holes and engraved with network cables.
2.Repeatable
The accessories are assembled quickly and easily, and the work surface can be combined according to the shape and size of the workpiece and can be reused.
3.Precise
The accuracy meets most welding and assembly work, and the center tolerance of the positioning hole on the work platform is small.
4.Economical
Products with multiple parts can be quickly assembled and then welded, thereby improving the welding accuracy and efficiency of the workpiece.
