200-300kg/H PP Lump, PVC Sheet, UHMWPE Block Single Shredder Recycling Machine

Product Description

Product Description
PTSS Series Single Shaft Shredders are small - medium size reduction machines suitable for processing a wide range of materials to a uniform particle size. The output products created can often be sold as is, or be sent for further processing through additional equipment (granulators briquetters etc). Throughputs typically range between 300kg/hr - 5,000kg/hr+ depending on the machine model, material type, screen size and application. Detailed Photos

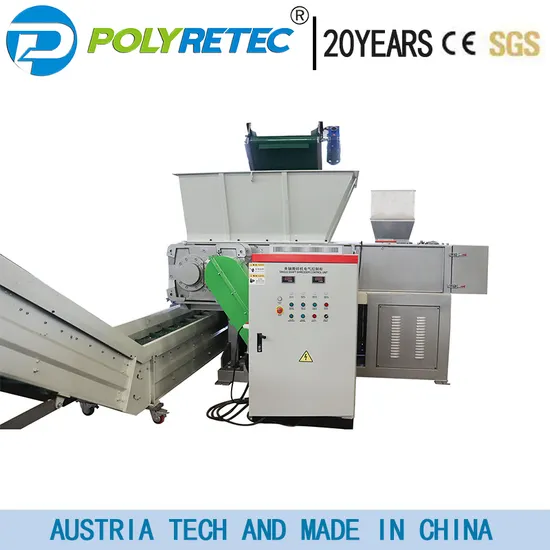

Machine photo:Parts:
Rotated blades:
Fixed blades:Application material:
Product Parameters
Parameter:

Model	PTSS	400	500	600	800	1000	1200	1500
Motor power(kw)		7.5	15	18.5	37	45	55	75
Rotation diameter(mm)		Φ170	Φ220	Φ220	Φ400	Φ400	Φ400	Φ400
Shredding width(mm)		400	500	600	800	1000	1200	1500
Rotation speed(Rpm)		80	80	80	80	80	80	80
Rotated blades number		15	23	27	39	49	59	84
Fixed blades number	Upper fixed blades	2	2	2	2	2	3	3
	Lower fixed blades	2	2	2	2	2	3	3
Hydraulic power(kw)		1.5	2.25	2.25	3.75	3.75	5.5	5.5
Ram(mm)		350	500	500	815	815	815	815
Rotor blades size(mm)		30*30	40*40	40*40	40*40	40*40	40*40	40*40
Screen amount		1	1	1	1	2	2	2
Dimension	L	1400	1820	1820	2800	2800	2800	2800
	W	990	1190	1310	1800	1980	2500	2750
	H	1600	1730	1730	2090	2090	2140	2140
	A	1010	1210	1210	1420	1420	1420	1420
	B	840	990	1090	1500	1700	1900	2100
	C	380	490	490	570	570	570	570
	D	260	270	270	530	530	530	530
	E	400	500	600	800	1000	1200	1500
Weight		750	1500	1750	4150	4300	4900	7280

Our Advantages
Our strengths and improvements
1. Use Siemens/WEG motor to improve power utilization efficiency
2. The bearings adopt the internationally renowned brand NSK
3. The bearing adopts a sealed design to prevent dust from entering and greatly extend the bearing life.
4. The machine uses integral cutting steel plates to reduce welds and greatly enhance the strength and life of the machine.
5. The machine has an overload protection system to protect the motor
6. Use double-sided blades for suitable materials, and the life of the fixed blades and rotated blades will be at least doubled.
7. For hot areas, the hydraulic station adopts water-cooling to ensure the continuous and stable operation of the machine and prevent the hydraulic station from shutting down due to excessive temperature.
8.For blades material,use authenticated D2 material,High hardness and durability Packaging & Shipping
Certifications
After Sales Service

Company Profile
ABOUT US

Suzhou Polytec Machine Co LTD focuses on the R&D and manufacturing of complete set of waste plastic recycling and processing systems and has provided services to customers in more than 30 countries through high-quality customized solutions, professional real-time technology and after-sales service. POLYTEC is currently working on four directions: 1. Waste plastic cleaning and classification: waste plastic films, bags, barrels, bottles, etc. are broken and cleaned, and plastics of different materials are separated, which are directly used in downstream industries such as recycled plastic granulation; 2. Recycled granulation of waste plastics: recycled granulation after cleaning of factory materials and post-consumer plastics; 3. Development of key machinery for recycling and recycling: R&D and manufacturing of key models for different materials in different industries, and provide key equipment for various process routes; 4. Waste electronic waste treatment: Provide system-wide process design and development and reuse for the growing consumer electronic products. 5. Design and implementation of project engineering: Our company provides guidance on plant design layout in the early stage of the project, and the overall installation of on-site water and electricity

Technology:

With Austrian Technology & Made in China Complete machine range: waste plastic washing line and pelletizing line Use our own factories to manufacture waste plastic recycling machines With many patents

Team:

Our CEO with over 20 years' rich experience in international trade business Our staff have over 15 years' rich experience in machine R & D, manufacturing and testing field, assembling workers with over 5 years' rich experience in our industry

Certificates:

With CE certificate Can meet UL/ISO/ standards With more than 15 national patents.

Profession:

English, French are available Customized machines are welcomed Instructions and other files are equipped The machine supports the third-party inspection for quality assurance

Services:

Perfect pre-sales service and after-sales service Support machine testing by using customer's raw material After--sales machine testing service is available.

Sample projects:

We already provided machines for customers over 30 countries, such as America, Mexico and so on. Some projects can be visited for reference.
