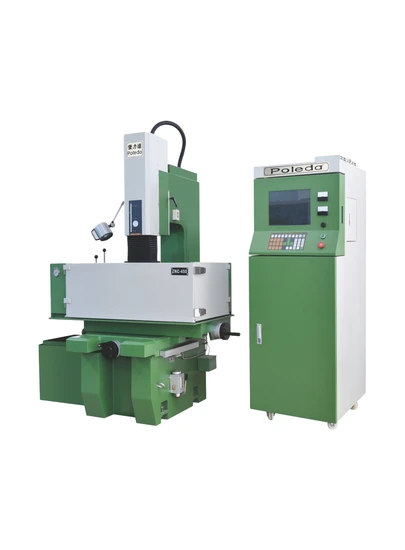

High-Precision EDM Forming Machine Znc-540 for Industrial Use

Product Description

The Electrical Discharge Machining (EDM) machine epitomizes the zenith of mechanical processing technology. This remarkable equipment is primarily utilized for executing complex electrical discharge machining operations, rendering it essential in the formation of precision metal molds and sophisticated mechanical devices. EDM is distinguished as a singular processing method, wherein the electrical erosion induced by pulsed discharges between electrodes, immersed in a working fluid, meticulously wears away conductive materials. This flawless procedure, also known as discharge machining or electrical corrosion machining, is commonly identified by its English acronym, EDM.
Product Description
Product Parameters
Principle of Spark Machine:
In the realm of Electrical Discharge Machining (EDM), the tool electrode and the workpiece are strategically connected to opposite poles of the pulse power supply. Immersed in working fluid or filled into the discharge gap, when the gap between these two electrodes reaches a specific distance, the applied pulse voltage overcomes the working fluid's resistance, thereby initiating a spark discharge.
In the fleeting moment of discharge, an extraordinary amount of heat energy is concentrated within the micro-channel, reaching temperatures exceeding a staggering 10,000 degrees Celsius, accompanied by rapid pressure changes. This intense energy causes localized melting, vaporization, and expulsion of the metal material into the working fluid. The expelled material rapidly condenses into solid metal particles, which are then carried away by the working liquid, leaving a minuscule pitting mark on the workpiece surface. The process temporarily pauses as the working fluid restores its insulating state between the electrodes.
Subsequently, the next pulse voltage initiates a discharge at another proximate point between the electrodes, repetitively generating spark discharges. Each pulse discharge erodes an infinitesimal amount of metal, but given the high frequency of thousands of pulses per second, significant cumulative metal removal is achieved, ensuring a certain level of productivity.
Maintaining a consistent discharge gap between the tool electrode and workpiece, the erosion of workpiece metal proceeds as the tool electrode advances toward it. Ultimately, the machined shape mirrors that of the tool electrode. By altering the tool electrode's shape and its relative motion to the workpiece, complex profiles are precisely crafted. Materials with high electrical conductivity, melting points, and ease of processing, such as copper, graphite, copper-tungsten alloy, and molybdenum, are typically used for tool electrodes. While the tool electrode experiences minimal wear compared to the workpiece metal corrosion, the loss is often negligible.
Serving as the discharge medium, the working liquid is essential for cooling and chip removal during the machining process. Preferred working liquids include low-viscosity, high flash point, and stable performance mediums such as kerosene, deionized water, and emulsion. EDM machines operate on self-excited discharge principles: the spark discharge between the electrodes begins with a high voltage, breaking down the medium as the electrodes near each other, initiating a spark. The discharge results in a sharp drop in resistance and voltage. The spark channel must extinguish promptly (within 10-7 to 10-3 seconds) to preserve the 'cold pole' characteristic, ensuring that the channel energy affects only a minuscule area, thereby causing localized erosion of the electrode. This erosion-based material removal technique is termed EDM.

Product Name	Electric discharge machine
Product model		ZNC-450	ZNC-540	ZNC-750
	Table size	700*400MM	800*400MM	10500*600MM
Product technical parameters	Left and right stroke(X)	450MM	500MM	700MM
	Anteroposterior stroke(Y)	350MM	400MM	550MM
	Spindle travel(z-axis)	200MM	200MM	250MM
	Head travel	230MM	380MM	400MM
	Distance from electrode head to table surface	450MM	580MM	850MM
	Maximum electrode load	120KGS	150KGS	200KGS
	Maximum working load	1200KGS	1500KGS	2000KGS
	Machine weight (approx.)	2200KGS	2200KGS	2950KGS
	Volume of filter box	400L	460L	980L
	Net weight of filter box	150KGS	180KGS	300KGS
	Appearance dimensions (L * W * H)	1470*1150*1980MM	1640*1460*2140MM	2000*17100*2360MM
The configuration is as follows:	Accessories name and specification	quantity	quantity	quantity
	Hand oil pump	1	1	1
	Quartz working lamp	1	1	1
Standard parts for machine tools	15 "CRT display and PC industrial computer	1	1	1
	Patented electrode head	1	1	1
	Electric box remote control	1	1	1
	Operating instruction	1	1	1
	hree axis electronicruler(1u)	1	1	1
	Detail disk	1	1	1
	Control box	1	1	1
	servomotor	1	1	1
	Machine level adjustment pad	1	1	1
	Tools and toolboxes	1	1	1
