Power Frequency High Voltage Withstand Test AC DC Generator Hipot Tester

Product Description

Description

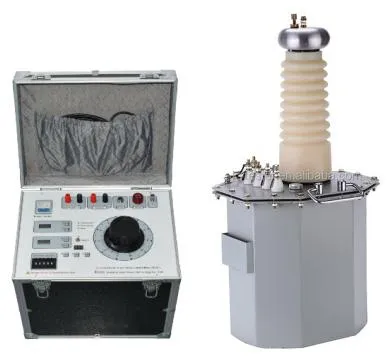

Automatic High Voltage Testing Equipment Oil Immersed Testing Transformer/Dry Type Transformer 100kv /AC DC Hipot Tester
The test also called transformer booster, it is the basic equipment for power station, power supply system and scientific research units. Used for the dielectric strength test of various electrical appliances, electrical equipment, insulation materials in the prescribed voltage , test products insulation level, it is found that the insulation defects sample measure to bear voltage capability.
Features here are four kinds of high voltage testing transformer according to the medium points:

1. ZC-501A series oil immersed transformer: Oil-immersed high voltage transformer test: large capacity, cheap, convenient maintenance, mainstream products.

2. ZC-501B series SF6 Inflatable high voltage test transformer : interrupter resistance, and light weight.

3.ZC-501C Dry type high voltage testing transformer: light weight, light volume, can run backward, price expensive.

Oil immersed transformer
1. ZC-501A series oil immersed transformer AC test using single frame core type iron core structure.
2. The primary winding is wound on the iron core, and the high voltage winding is outside, and the coaxial arrangement reduces the leakage flux and increases the coupling between the windings.
3. The outer shell of the product is made of the best shape of the octagonal structure with the core; the overall appearance is beautiful and generous.
4. Voltage level:10kV~200kV
5. Capacity range:3kVA~100Kva

SF6 Testing Transformer
1. ZC-501B series transformer design concept, material selection and process are the latest, so not only small size, light weight, beautiful appearance.
2. The high quality cold rolled DQ 151 oriented silicon steel sheet is folded into a multi-stage cylindrical iron core, and a QZ type wire is directly wound and wound on a special high strength insulating tube. The shell is cylindrical and is filled with SF6 gas.
3. The high voltage rectifying silicon stack is skillfully arranged in the high pressure sleeve through the insertion and extraction of the short circuit rod and the YDQ is a power frequency high voltage AC output or a high voltage direct current output.

Dry Testing Transformer
1. ZC-501C series dry test transformer light weight, compact structure, no oil leakage, maintenance free;
2. ZC-501C series dry test transformer connection is simple and intuitive, easy to use;
3. Good insulation reliability, beautiful appearance;
4. The series of dry test transformer has over-voltage function;
5. Dry testing transformer is the use of the coil vacuum epoxy resin casting molding and CD type iron core, new technology, new material and dry testing transformer can output AC and DC high voltage and high voltage test, dry testing transformer compared with the same capacity experiment of oil immersed transformer has the is light weight, convenient operation, no oil leakage, etc. ,especially for power system and the power users in field testing a variety of electrical equipment insulation and withstand voltage test of insulated tools.
Product Parameters

ZC-500A series box	capacity :1KVA - 5KVA input voltage:0.22KV
ZC-500B series box:	capacity: 300KVA - 10KVA input voltage:0.22KV,0.38K
The type digital micro ammeter	MSA – I
Resistance capacitance AC DC voltage divide	RCF – 50,100,150,200KV
High voltage DC discharge rod	FZ – 70,140,210KV
High-voltage silicon stack	2DL – 150,300,450KV
Insulating support	50,100,200,300KV
High voltage filter capacitor	0.01uF – 0.1uF,40 – 100KV
Pressure ball
Protective sphere	Q – 50,100,150,200,250,500
Medium oil cup
Folding trolley	150,300
Water resistance
High-voltage electroscope	10KV 35KV
High pressure phase detector	10,35,110KV 220KV
