Refrigerator Fridge Copper Refrigeration Part Stainer Filter Drier
| US$0.50 | 1,000 Pieces (MOQ) |
Basic Info.
Parts
Filter Drier
Item
Filter Drier
Cap Color
Red, Green, Blue, Yellow or Other Colors
Molecular Sieve
5-50gr
External Diameter
16-29mm
Screen Depth
24-30mm
Copper Wall Thickness
0.3-1.2mm
Transport Package
Cartons or Drums
Specification
International Standard
Trademark
RETEKOOL
Origin
China
HS Code
84189999
Production Capacity
50000000 Pieces / Year
Product Description

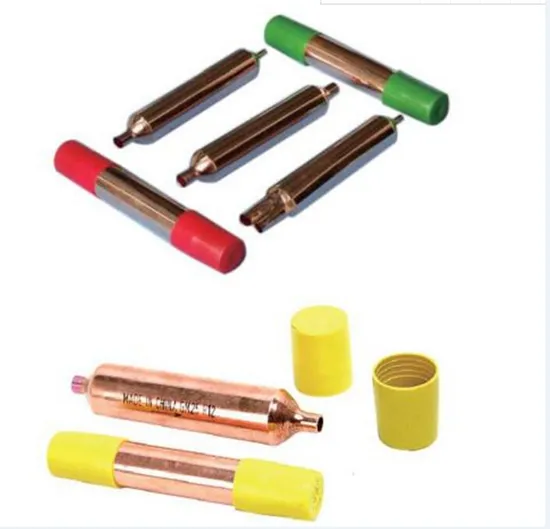

Refrigerator fridge Copper Refrigeration Part stainer filter Drierrefrigeration parts, freezer filter drier.
1. Copper filter drier(copper strainer) for refrigerator, freezer, water dispenser, air
conditioner, condensing units.
2. Both ends with plastic caps, big one or little one (white, yellow, red, blue, green, different
colors available)
3.5GR, 7GR, 12GR, 15GR, 20GR, 25GR, 30GR, 40GR, 50GR...
4. Your words can be printed on the body of driers
5. Labels are also available for your choice.
We could manufacture according to customer's drawings or samples.
| Body shell | Cu-DHP |
| Molecular sieves | 100% XH-9 |
| Screen | 200 mesh |
| Availability | Compatible with all refrigerants |
| Wall thickness | 5~20g: 0.40mm; >20g: 0.50mm |
| Connection | Welded extension copper capillary 2 inlet (with access valve) + 1 outlet |
| Extended capillary length | 40, 45, 50, 55mm |
| Inlet/Outlet | On request |
| MODEL | MOLEC | EXTERNAL DIAMETER | LENGTH |
| TOLERANCES | ±5% | ±0.10mm | ±3.0mm |
| CF5 | 5.00 | Ø16.00 | 80.00 |
| CF7 | 7.00 | Ø16.00 | 90.00 |
| CF8 | 8.00 | Ø16.00 | 101.00 |
| CF10 | 10.00 | Ø16.00 | 115.00 |
| CF50 | 50.00 | Ø29.00 | 160.00 |
