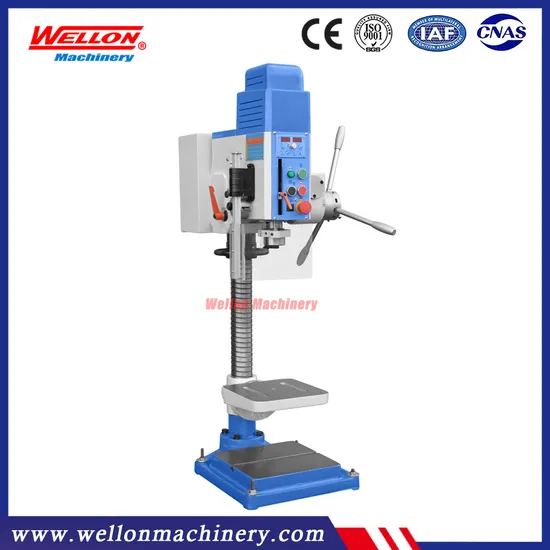

Auto Feeding Drilling Machine ZWD4116 Drilling Machine Price

Product Description

Product Description
Detailed Photos
Product Parameters

Performence Features:
Spindle quill auto feeding.
Threading function.
360 degree rotary table.
Rotating head 360 degree.
Drilling depth indicator.
Electronic spindle and feed rate indicator.
High spindle rigidity.
Threading by automatic switching of the left turns.
Left turn switch.
Headstock, column, table and column base made of the highest quality components.
Spindle and transmission shafts of hardened and heat treated steel.
Top-class electric motor.
Readable control panel.
Technical parameter:

Model	ZWB4116
Max.Drilling capacity	16
Max.Tapping capacity	M10
Diameter of column	70mm
Spindle travel	135mm
Spindle feed rate	20-204mm/min
Distance spindle axis to column	193mm
Max.Distance spindle nose to table	590mm
Max.Distance spindle nose to base	805mm
Spindle Taper	MT2
No. of Speeds	Variable
Spindle speeds range	300~3000r/min
Dimension of workable surface	250x250mm
Dimension of base	300x300mm
Overall height	1130mm
Main motor	1 kw
Feed motor	90w
Weight	145kg
Packing size	730x500x1180mm

Standard accessories:
Drill chuck
Tapper sleeve
Wrench
Optional accessories:
Safety guard
Vice
Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining
Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.
