F-150L Computer Controlled Thermostatic Oil Bath Single-Wall Chemical Glass Reactor

Product Description

F-150L Computer controlled thermostatic oil bath Single-Wall Chemical Glass Reactor Product Description
F-150L Single Wall Chemical Glass Reacto
Brief Introduction:
Single glass reactor inner placed reaction solvent which can be stirred, single layer glass reaction kettle is heated by computer control oil bath or electric heating. At the same time, it can be worked at atmospheric pressure or vacuum state, to control the reaction solution reflux and distillation, it is the ideal equipment for modern synthesis chemical, biological pharmaceuticals and making new materials, used for preparation experiment and production equipment.
Features:
1.Frequency control, AC induction motor, speed digital display constant, brushless, no spark, safe and stable, it can work continuously;
2. Supporting glass using GG3.3 high boron silicon material production, has a good chemical, physical properties; big bottle design, hand out cleaning;
3. PTFE (Ceramic) mechanical component sealing, proprietary technology, it can get the best vacuum degree in the market among the similar products;
4. Overall stainless steel frame structure (foot connecting parts like Tee and four-way valve are all stainless steel), compact and solid, stable and reliable without shaking when mixing;
5. Casters with brake fixed, it is convenient and reliable for mobile use;
6. The PTFE discharge valve without dead corner, solid material/liquid material can be easily released from the bottom;
7. Computer controlled thermostatic oil bath, the intelligent PID control, temperature control is accurate and convenient;

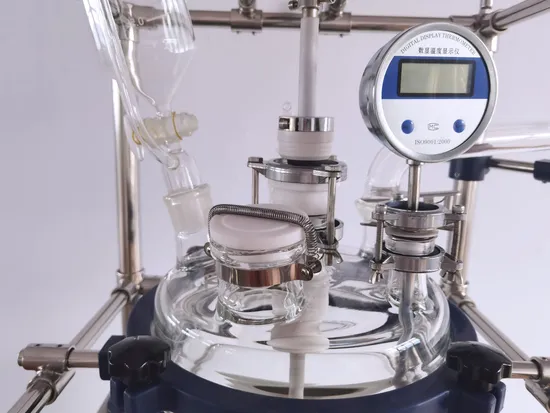

8. Integral structure is scientific design and beautiful appearance, convenient for operation; Detailed Photos
Product Parameters
Specifications

Basic specification	Name	F-150L
	Glass material	GG-17
	pot shell material	Spraying antiseptic shell
	Inner port material	stainless steel 700*700mm
	Moving mode	Brake type universal corner wheel
	Volume	Cylindrical type 150L
	Port No. of reactor cover	7
	Distance between discharge to floor	450mm
	Temperature range	.-80 to 250degree
	Vacuum	0.098Mpa
	Stirring speed	0-280rpm
	Stir rod diameter	15mm
	Stir power and voltage	700W1/5 220V/50Hz
	Heating power and voltage	12KW 380V/50Hz
	Overall size (mm*mm*mm)	1200*1000*2600
	Gross weight(KG)	150
Configuration list	Speed display mode	Electronic stepless speed regulation
	Motor	Low speed booster motor, speed ratio 3: 1
	Speed display mode	digital display
	Temperature display	digital display
	Seal	PTFE seal, ¢60 flange stir port
	Condenser	Vertical high efficiency double reflux condenser 120*640mm, standard 60 flange port
	Reflux (distillation) device	Return bend with feeding switch, 50# ball mill port
	Drop adding device	2L Constant pressure funnel, #40 standard
	Pressure release device	standard 34# pressure release valve
	Temperature tube	standard 24#
	Solid adding (cleaning) port	¢120 flange port with PTFE cover
	Discharge	glass discharge valve, ¢80 flange port
	Vacuum display mode	Vacuum gauge
	Mixing connection	universal joint link
	Stir rod	Anchor and Spiral type, Stainless steel rod with PTFE
