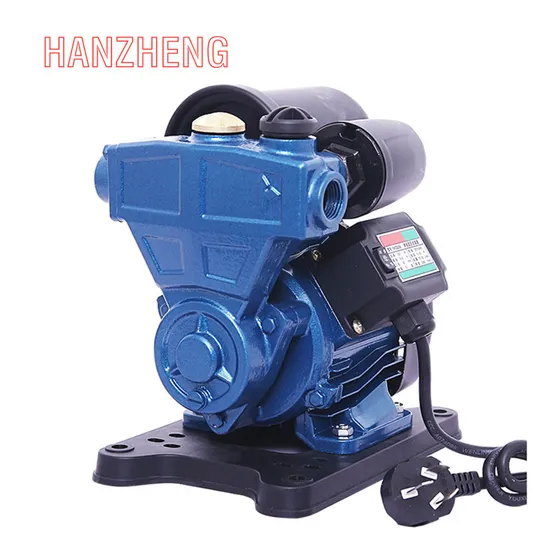

Automatic Self-Priming Domestic Home Hot Water Pressure Booster Pump

Product Description

Automatic Self-priming Domestic Home Hot Water Pressure Booster Pump Product Description The new Automatic Self-Priming Water Pump, with the high tech intelligence Automatic Control System, PCB dry operation protection, water lacking protection, electronic pump starting delay protection, and more protection system of timer, jumper, current, etc.
With the new features, it is improving & simplifies your style of using water pump.

APPLICATIONS Design for Domestic Household , Watering Garden which connecting to water tank. Design for domestic pressure boosting which increase pressure so that the required pressure is available at showers, taps etc for domestic water. That can use for hot and cold water Automatically boost water flow rate for hot or cold water systems. It can run by off grid Solar Power with connecting to inverter
FEATURES Ideal use with any water tanks, as the pump is Fully Automatic, it will turn on when the tap open and turm off when the tap close. Also it have Run Dry Protection, it will power off if your tank run out of water. High efficient energy saving Household Pump Provide constant and high pressure water flows to improve the performance of your showers, faucets, washing machines and garden watering systems; (NO more low water pressure, NO more annoying cycling effect ). Pressure tank installed for smooth pump operation and to reduce frequent start/stop, it makes your pump last longer High graded Brass Impeller; (Compare others as some poor quality pumps just install cheap plastic impeller, easy to get crack in about 1 yr time) High graded Stainless Steel Motor Shaft; (duration and corrosion resistance) Run dry Protection - Don't let your next pump burn out, this device automatically stops the pump When there have no water flow to the pump. Pressure Controller - it monitors system pressure and flow and turns pump on and off automatically. When taps are either opened or closed, it will adjusts the flow rate and pressure, keeping these constant Ceramic and graphite Mechanical Seal; Compact size - easy to install, operation and maintenance; Safety and reliability (Continues rated); Double protection, current and terminal protector; Technologically advanced - Quite in operation; Single phase Closed, externally ventilated Heavy Duty Motor housing (Lot better Ventilation than Plastic Housing) Won't get overheat even continuous running Protection class: IP44 Duty: Continuously rated Current protector & terminal protection

POWER	SUCTION(m)	HEAD(m)	FLOW(m3/h)	DIAMETER(mm)	VOLTAGE(V)
250W	8	25	2.0	25	220
370W	8	30	2.0	25	220
450W	8	35	2.5	25	220
550W	8	38	2.5	25	220
650W	8	40	3.0	25	220
750W	8	42	3.0	25	220
850W	8	45	3.8	25	220
1100W	8	50	3.8	40	220
1500W	8	60	3.8	40	220
