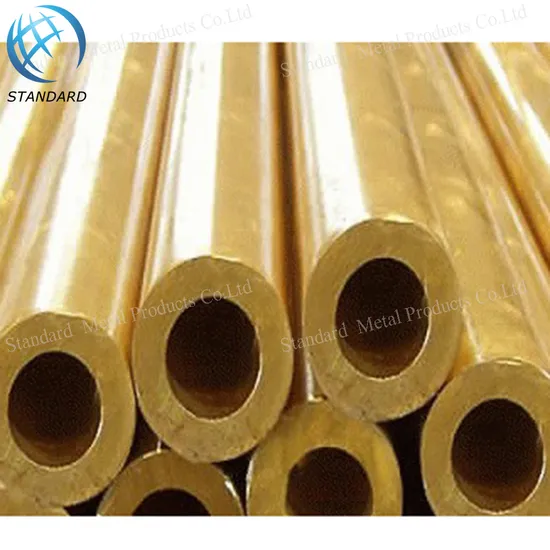

Seamless AC Tube C36000 Hpb62-3 Brass Tube CZ124 C3601 C35600 C3560 Brass Tubing

Product Description

Yellow Brass Tube C27200 C2720 Cuzn37 H63 Brass Tubing / C2680 C26800 Capillary Copper Tube Product Description
This capillary has good conductivity, thermal conductivity, corrosion resistance, and processing performance. Commonly used in equipment that conducts electricity, conducts heat, and corrodes, it has low conductivity, thermal impurities, and high oxygen content. It is only made of general copper, such as electrical switches, pads, nails, pipes, and other pipeline welding. It has good cold bending performance and can be used to restore the environment. It is mainly used for supplying pipelines, and occasionally also for supplying pipes, plates, belts, and wires. It is mostly used in the manufacturing of various conveying pipes, condenser pipes, evaporators, heat exchangers, etc. High purity, good conductivity, and good thermal conductivity, commonly used in electric vacuum equipment, instruments, and equipment with good wear resistance, electrical contact, and corrosion resistance.
1. We has more than 20 years of professional production experience in copper pipe, advanced continuous casting and rolling production line, complete testing equipment and management system.
2. Implement the positive brand strategy, set up more than 100 special distributors of refrigeration copper pipes all over the country, and successively established long-term cooperative relations
3. Complete accessories, all kinds of red copper pipe fittings and multi model air conditioning branch pipes to create a one-stop supply. 4. Flaw detection shall be carried out for each meter of red copper pipe to eliminate the defects of copper pipe
5. Fill nitrogen and maintain pressure to create a clean and bright inner wall of copper pipe.
6. The warranty is ten years.
7. The inner liner + wooden pallet supported, and covered also sealed outside, with layers of protection to ensure transportation safety.
8. Provide anti-counterfeiting technical support for "one certificate and one code" products.
Product Variety
Other types of lead products
Product Parameters
Product specifications
1. Alloy: C28000 , C28200 ,C28300 , C28310 , C28320 , C28330 , C28500 , C23000 , C23030 , C23400 , C24000 , C24080 , C25000 , C25600 ,C26000 , C26100 ,C26130 ,C26200 , C26380 , C27000 , C27200 , C27400 ,C27450 , C27451 ,C27453 ,C2300 ,Cuzn15 ;
Copper-Zinc Leaded Alloys ( Leaded Brasses ) C30000-C39999 ;
C31000 , C31200 ,C31400 ,C31600 ,C32000 , C32500 , C32510 , C33000 , C33100 , C33200 , C33500 , C33530 , C34000 , C34200 , C34400 , C34500 , C34700 , C34800 , C34900 , C35000 , C35300 , C35330 , C35340 , C35350 , C35600 , C36000 , C36010 , C36200 , C36300 , C36500 , C36600 , C36700 , C36800 , C37000 , C37100 , C37700 , C37710 , C37800 , C38000 , C38010 , C38500 , C38510 , C38590 , C38600 ;
2. Size range:
Outside diameter from 10.3 mm to 114mm
Wall thickness from 1.57mm to 6.35mm
Length from 0.2m to 50m
3. Temper: Hard temper, half hard temper, soft annealed temper
4. Type: Copper pipe in pancake coil, copper pipe in level wound coil, copper pipe in straight tube
5. Packing:
Carton and pallet packing for copper pancake coil
Bundle and wooden case packing for straight copper pipe
Reel and pallet packing for level wound copper coil
6. Our standard:
ASTM B280, EN 12735-1, AS 1571, JIS H3300 standard-copper tube for air conditioning and refrigeration
ASTM B88, EN 1057, AS 1432 standard-copper tube for water and gas
ASTM B837 standard-copper tube for natural gas and LP gas
ASTM B819, EN 13348 standard-copper tube for medical gas
7. Delivery time: 2-3 weeks
8. Payment: T/T or L/C sight
Brass is a term that refers to a wide range of copper-zinc alloys with different properties
that include machinability, strength, hardness, wear-resistance, ductility, corrosion-resistance, antimicrobial, electrical and thermal conductivity and color.
Brasses are available in a wide range of colors such as yellow, red, silver and gold etc. These colored brasses, which can be easily shaped, are used by designers and architects in order to improve the inside and outside appearances of buildings.
UNS C23000 brass alloys are red in color and stronger than C22000 alloys. The following datasheet provides an overview of UNS C23000 red brass alloys.
Chemical Composition
The chemical composition of UNS C23000 red brass alloys is outlined in the following table.

Element	Content (%)
Cu	85
Zn	15

Mechanical Properties
The mechanical properties of UNS C23000 red brass alloys are displayed in the following table.

Properties	Metric	Imperial
Tensile strength	269-724 MPa	39-105 ksi
Yield strength	69-434 MPa	10-70 ksi
Elongation	55%	55%
Poisson's ratio	0.34	0.34
Elastic modulus	117 GPa	16969 ksi

Equivalent materials to UNS 23000 red brass alloys are given in the table below:

ASME B16.22	ASTM B134	ASTM B687	ASTM B111
ASME B16.29	ASTM B135	ASTM B698	ASME SB543
ASME SB111	ASTM B359	MIL T-20168	ASTM B587
ASME SB359	ASTM B36	QQ W321	ASTM B543
ASME SB395	ASTM B395	SAE J461
ASME SB43	ASTM B43	SAE J463

Specifications(mm)	Unit weight (g)	O. D (mm)	I. D (mm)	Bottom Wall Thickness TW(mm)	Fin Groove Depth HF (mm)	TotalWallThickness (mm)	Apex Angle	Helix Angle	Number of Tooth
Φ 5.00× 0.20+0.15-18°	33	5.00	4.30	0.2	0.15	0.35	40	18	40
Φ 7.00× 0.25+0.10-15°	52	7.00	6.30	0.25	0.10	0.35	40	15	65
Φ 7.00× 0.25+0.18-18°	57	7.00	6.14	0.25	0.18	0.43	40	18	50
Φ 7.00× 0.25+0.22-16°	58	7.00	6.06	0.25	0.22	0.47	22	16	54
Φ 7.00× 0.27+0.15-18°	60	7.00	6.16	0.27	0.15	0.42	53	18	60
Φ 7.94× 0.25+0.18-18°	65	7.94	7.08	0.25	0.18	0.43	40	18	50
Φ 7.94× 0.25+0.20-18°	66	7.94	7.04	0.25	0.20	0.45	40	18	50
Φ 7.94× 0.26+0.17-18°	66	7.94	7.08	0.26	0.17	0.43	40	18	50
Φ 7.94× 0.28+0.20-18°	72	7.94	6.98	0.28	0.20	0.48	40	18	50
Φ 7.94× 0.30+0.20-18°	76	7.94	6.94	0.3	0.20	0.50	40	18	50
Φ 9.52× 0.27+0.16-18°	82	9.52	8.66	0.27	0.16	0.43	30	18	70
Φ 9.52× 0.28+0.12-15°	80	9.52	8.72	0.28	0.12	0.40	53	15	65
Φ 9.52× 0.28+0.15-18°	83	9.52	8.66	0.28	0.15	0.43	53	18	60
Φ 9.52× 0.28+0.15-25°	88	9.52	8.66	0.28	0.15	0.43	90	25	65
Φ 9.52× 0.28+0.20-18°	85	9.52	8.56	0.28	0.20	0.48	25	18	55
Φ 9.52× 0.28+0.20-18°	88	9.52	8.56	0.28	0.20	0.48	40	18	60
Φ 9.52× 0.30+0.20-18°	90	9.52	8.52	0.3	0.20	0.50	30	18	60
Φ 9.52× 0.30+0.20-18°	94	9.52	8.52	0.3	0.20	0.50	53	18	60
Φ 9.52× 0.34+0.15-25°	104	9.52	8.54	0.34	0.15	0.49	90	25	65
Φ 9.52× 0.40+0.25-18°	123	9.52	8.22	0.4	0.25	0.65	40	18	60
Φ 12.00× 0.36+0.25-18°	140	12.00	10.78	0.36	0.25	0.61	40	18	70
Φ 12.70× 0.35+0.25-18°	155	12.70	11.50	0.35	0.25	0.60	53	18	70
Φ 12.70× 0.40+0.25-18°	170	12.70	11.40	0.4	0.25	0.65	53	18	70
Φ 12.70× 0.50+0.25-18°	201	12.70	11.20	0.5	0.25	0.75	53	18	75
Φ 12.75× 0.36+0.21/0.25-20°	150	12.75	11.53	0.36	0.25	0.61	48	20	70

Item	Copper tube ,Brass tube,Bronze tube
Type	Straight copper pipe,Pancake coil copper pipe,Capillary copper pipe
Standard	GB/T1527-2006,JIS H3300-2006,ASTM B75M,ASTMB42,ASTMB111,ASTMB395,
	ASTM B359,ASTM B188,ASTM B698,ASTM B640,etc
Material	T1,T2,C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920,
	TP1,TP2,C10930,C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300,
	TU1,TU2,C12500,C14200,C14420,C14500,C14510,C14520,C14530,C17200,C19200,
	C21000,C23000,C26000,C27000,C27400,C28000,C33000,C33200,C37000,C44300,
	C44400,C44500,C60800,C63020,C65500,C68700,C70400,C70600,C70620,C71000,
	C71500,C71520,C71640,C72200,etc
Shape	Round,Square,Rectangular,Oval,half-round
Round	OD:2-914mm (1/16"-36") WT:0.2-120mm(SCH5S-SCH160S)
Square	Size:2*2-1016*1016mm(1/16"-40") WT:0.2-120mm
Rectangular	Size:2*4-1016*1219mm(1/16"-48") WT:0.2-120mm
Length	1m,2m,3m,6m,or as required
Hardness	1/16 hard,1/8 hard,3/8 hard,1/4 hard,1/2hard,full hard,soft,etc
Surface	mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required
Application	1. Pancake Coil for ACR, General Engineering Applications
	2. LWC Coil for ACR, General Engineering Applications
	3. Straight Copper Tubes for ACR and Refrigeration
	4. Inner-grooved copper tube for ACR and Refrigeration
	5. Copper Pipe for Transportation System of water, gas and oil
	6.PE-coated copper tube for water/gas/oil transportation system
	7.Semi-finished Copper tube for industrial applications

Packaging & Shipping
Packaging:
Standard Sea-worthy package , fixed by belt then loaded into fumigated wooden box .

20Gp - 2.352(width) *2.385 ( Height ) * 5.90 ( Inside length ) Meter

40Gp - 2.352(width) *2.385 ( Height ) * 11.8 ( Inside length ) Meter

40HQ - 2.352(width) *2.69 ( Width ) * 5.90 ( Inside length ) Meter

Product production workshop
Shipping:
7-10 day against the payment
Our Services
Customized service :
1.We are exporters and manufacturers of high-quality metal products in China.
2. We can provide a complete set of metal products for different markets.
3. We have the ability to serve customers with the most reliable quality and reasonable prices.
4. We can OEM and produce products based on the given design, and mass produce the designed goods.
5. We regularly export to buyers around the world. These products are widely popular in the market.
6. We hope to win more customers with high-quality products and reasonable prices.

20Gp - 2.352(width) *2.385 ( Height ) * 5.90 ( Inside length ) Meter

40Gp - 2.352(width) *2.385 ( Height ) * 11.8 ( Inside length ) Meter

40HQ - 2.352(width) *2.69 ( Width ) * 5.90 ( Inside length ) Meter

How to make the order ?
Δ First step , Please contact with our sales team , talked about the cargo details , if need sample , we can supply the sample for free ;
Δ If the sample can reach to requirement , the client can sign the contract with our company;
Δ Before shipment , client can inspect the cargo loading and seal the container , we also can accept inspection of the third party ( Such as SGS ,BV etc ) ;
Δ After 5 days of shipment , we will send the documents of customs clearance to you ;
Δ After get the cargo , please give feedback to us ;
Customer feedback
Company Profile
Shandong Standard Metal Products Co., Ltd. is a comprehensive company specializing in the production of alloy metal materials, X-ray protection equipment, and laser devices. At present, 70% of our products are exported to various parts of the world, and our key products have entered key fields and new industries such as nuclear power plants, petroleum, chemicals, shipbuilding, containers, railways, automobiles, urban light rail transportation, and large power plants. Our business ideas are focus on high quality material , meantime supply good before -sale and after-sale service , give most benefit to our clients .Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction We have built strategic partnership with domestic huge manufacturer, Baosteel , TISCO, ZPSS, TPCO, . If you are interested in learning more details about our products, contact us freely. We wish to extend our warm welcome to our customers, old and new, both at home and abroad, to negotiate business with us on the basis of equality and mutual benefit.
Customer visits
A Factory Tour
FAQ
Q1. Where is your factory ?
A1: Our company's processing center is located in Shandong , China. Which is well equipped with kinds of machines, such as laser cutting machine, mirror polishing machine and so on.We can provide a wide range of personalized services according to the customers' needs.
Q2. How do you control quality ?
A2: First step , Please contact with our sales team , talked about the cargo details , if need sample , we can supply the sample for free ; If the sample can reach to requirement , the client can sign the contract with our company;Before shipment , client can inspect the cargo loading and seal the container , we also can accept inspection of the third party ( Such as SGS ,BV etc ) ;
Q3. What are the advantages of your company ?
A3: We have many professionals, technical personnel, more competitive prices and best after-dales service than other seamless lead product companies.
Q4. Can you arrange the shipment ?
A4: Sure we can help you with the shipment. We have forwarders who have cooperated with us for many years
Q5. How about the delivery time ?
A5: It is based on the order, After 5 days of shipment , we will send the documents of customs clearance to you ;After get the cargo , please give feedback to us ;
