Stainless Steel Electric Heating Reactor Heating Mixing Tank

Product Description

Product Description
Liquid mixing tank, also known as water phase tank, widely used in coatings, pharmaceuticals, building materials, chemicals, pigments, resins, food, scientific research and other industries. The equipment can be made of carbon steel, stainless steel and other materials according to the process requirements of users, and set up heating and cooling devices to meet the different process and production needs. The heating forms are electrical heating in jacket and coil heating, the equipment is reasonable in structure design, advanced in technology, durable, and has the characteristics of simple operation, easy use, etc. , it is an ideal chemical equipment with low investment, fast production and high profit.
Product Overview
1. Volume: 50L, 100L, 200L, 300L, 500L, 600L, 1000L ~ 5000L.
2. Tank body: internal surface polishing treatment.
3, top cover: for two open-type movable cover, easy to clean, external surface polishing treatment
4, tank bottom structure: after spinning processing into R angle, with the inner tank body welding, polishing no dead angle, put clean materials without retention.
5, housing surface treatment: mirror polishing or 2b primary color matte or 2b matte matte treatment

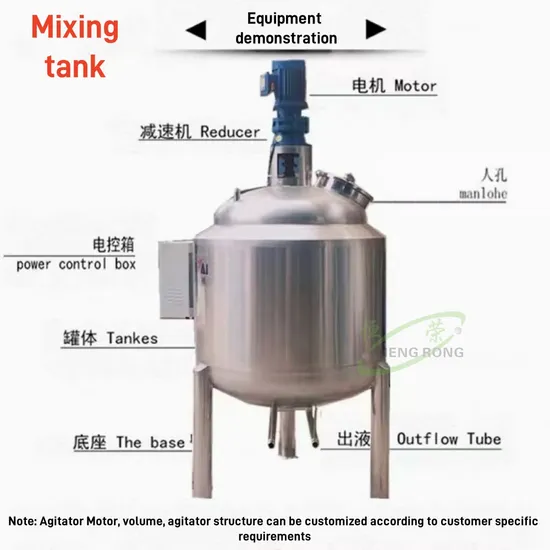

6, mixing device: top center mixing, the output shaft of the reducer is connected with the stirring propeller shaft by a looper for convenient disassembly, assembly and cleaning.
7, Mixing paddle form: frame type, anchor type, paddle type, turbine type, etc. (according to process requirements) .
8. Foot type: round tube type or hanging lug type. 9. The flanging process arc transition is adopted in the welding place of each inlet and outlet process hole and inner tank body, which is smooth, easy to clean, no dead angle and beautiful appearance.
Product Parameters

Model	Nominal capacity (L)	Diameter of the body(mm)	Height of cylinder(mm)	Motor Power(kw)	Heating power(kw)
JBG-100	100	550	500	0.75	12
JBG-200	200	650	620	0.75	12
JBG-300	300	750	700	0.75	16
JBG-500	500	900	800	0.75	18
JBG-800	800	1050	950	0.75	24
JBG-1000	1000	1050	1250	1.5	36
JBG-1200	1200	1150	1250	1.5	36
JBG-1500	1500	1250	1250	1.5	36
JBG-2000	2000	1450	1250	2.2	48
JBG-2500	2500	1500	1500	3	60
JBG-3000	3000	1600	1500	4	72
JBG-4000	4000	1700	1800	4	96
JBG-5000	5000	1800	2000	5.5	120

* stirring speed (r/min) : optional (35/60/80/120) . If you need to adjust speed, another converter can be customized according to customer needs, motor power for the standard configuration, if required, please put forward!
Detailed Photos
