Oil Country Lathe Machine Qk1319 Double Chuck Horizontal Flat Bed Automatic CNC Pipe Threading Lathe
Basic Info.
Model NO.
QK1319
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Other
Power Source
Hydraulic Pressure
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Product Name
Qk1319 for Oil Country CNC Pipe Threading Lathe
Machine Type
CNC Pipe Threading Lathe
CNC or Not
CNC
Max. Swing Over Bed Dia.
630mm
Max. Swing Over Cross Slide Dia.
330mm
Max. Length of Workpiece
1500/3000mm
Width of Bed
550mm
Spindle Bore
200mm
Power of Spindle Motor
11kw
Mode of Spindle Speed
Two Gears, Stepless in Gears
X/Z Axis Travel
X:350 Z:1250mm
X/Z Rapid Traverse Speed
4000mm/Min
Chuck
K11-500 3 Jaw Chuck
CNC Control System
GSK, Fanuc, Siemens
Net Weight
4.6t
Transport Package
Wooden Cases
Specification
3700*1755*1800mm
Trademark
HAIDI
Origin
China
HS Code
8458110090
Production Capacity
30 Sets/Month
Product Description

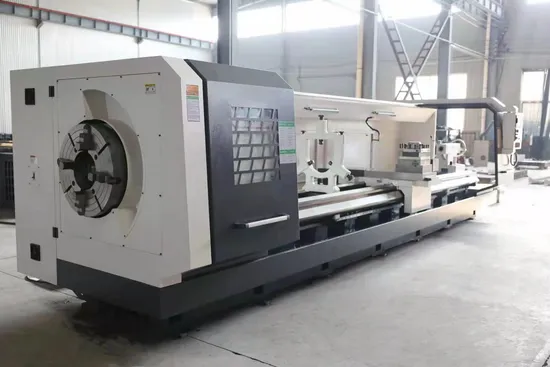

Product PictureSpecification Parameter
| Specification | Unit | QK1313 | QK1319 | QK1322 | |
| Max. swing over bed dia. | mm | 630 | 630 | 670 | |
| Max. swing over cross slide dia. | mm | 330 | 330 | 370 | |
| Max. length of workpiece | mm | 1500/3000 | |||
| Width of bed | mm | 550 | |||
| Spindle bore | mm | 135 | 200 | 225 | |
| Power of spindle motor | kw | 11 | |||
| Mode of spindle speed | / | Two gears, stepless in gears | |||
| Spindle speed range | r/min | L: 0-130 H: 130-800 | L: 25-120 H: 100-500 | L: 25-120 H: 100-500 | |
| X/Z axis travel | mm | X:350 Z:1250 | |||
| X/Z rapid traverse speed | mm/min | 4000 | |||
| X axis motor | Speed | r/min | 1500 | ||
| Torque | N.m | 10 | |||
| Power | kw | 1.5 | |||
| Z axis motor | Speed | r/min | 1500 | ||
| Torque | N.m | 15 | |||
| Power | kw | 2.3 | |||
| Tailstock quill | Diameter | mm | 100 | ||
| Travel | mm | 250 | |||
| Taper | / | Morse 5 | |||
| Turret | Type | Vertical four station | |||
| Chuck | K11-380 3 jaw chuck | K11-500 3 jaw chuck | |||
| CNC control system | GSK, FANUC, SIEMENS | ||||
| Positioning accuracy | mm | 0.02 | |||
| Repeatability | mm | 0.01 | |||
| Overall dimension | mm | 3700*1755*1800 | 3700*1755*1800 | 3700*1755*1800 | |
| Net weight | T | 4.0 | 4.6 | 5.2 | |
