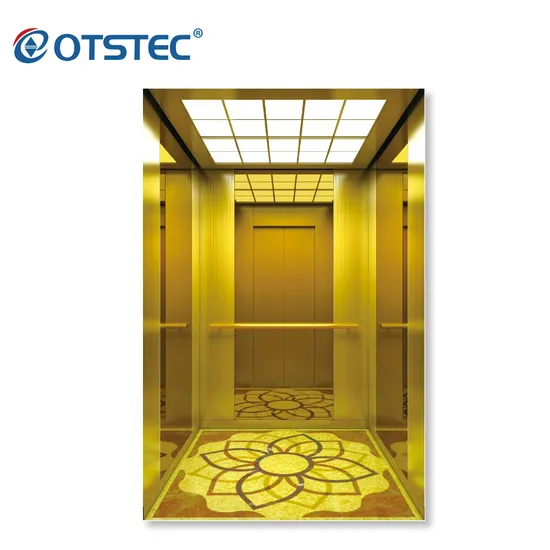

Golden Etched Mirror Residential Elevator for Home Customized 4-8 Persons Passenger Lift

Product Description

Product Description
Product Parameters

Small Machine Room
Loading Passenger	Loading Capacity	Speed	Car Size	Shaft(Min.)	Overhead Height	Rise(Max.)
Passenger	(Kg)	(m/s)	W*D*H(mm)	W*D(mm)	W*D(mm)	HQ(Max.)(m)
6	450	1.0	1100*1100*2400	1700*1800	4500	45
8	630	1.0-1.75	1400*1100*2400	2000*1800	4500	95
10	800	1.0-2.5	1400*1300*2400	2000*2000	4500	120
13	1000	1.0-3.0	1600*1500*2400	2200*2200	4500	150
16	1250	1.0-4.0	1950*1400*2400	2600*2100	4500	180
21	1600	1.0-4.0	1950*1750*2400	2600*2450	4500	180

Machine Room less
Loading Passenger	Loading Capacity	Speed	Car Size	Shaft(Min.)	Overhead Height	Rise(Max.)
Passenger	(Kg)	(m/s)	W*D*H(mm)	W*D(mm)	W*D(mm)	HQ(Max.)(m)
6	450	1.0	1100*1100*2400	1900*1500	4500	45
8	630	1.0-1.75	1400*1100*2400	2200*1500	4500	95
10	800	1.0-2.5	1400*1300*2400	2200*1700	4500	120
13	1000	1.0-2.5	1600*1500*2400	2400*1900	4500	150
16	1250	1.0-2.5	1950*1400*2400	2750*1800	4500	180
21	1600	1.0-2.5	1950*1750*2400	2750*2150	4500	180

Production Process
Packaging & Shipping
Certifications
Exhibitions
Our Advantages
What advantages your elevators have?
We use the best parts for our elevators, gearless motor from XIZI forwarder,
door operator from Shenling or Wittur, control system from Monarch or STEP etc.
All these parts from the biggest and the best suppliers in the world.
Actually, elevator is an assembled product.
And we control the design, control system, and the parts quality and delivery.
Our strict management make sure the elevator can be installed without any problem
and all parts will be fixed in the correct position,
our design make sure the elevator can run stably and efficiently.
FAQ
Q1. How to get fast reply for inquiry?
Send complete information to us, like below example.

Shaft	Not designed	Under construction or Finished
Elevator type	Tell us the capacity you need or for how many persons, also you can refer to our standard size as product parameters above	Passenger, panoramic, cargo, home, car lift
Machine room		With or without
Capacity/persons		1000kg/13persons
Floor/stop/door		6 floors 6 stops 6 doors
Speed		1.0m/s
Cabin door		one cabin door
Shaft size		(W)2200*(D)2100
Overhead height		4500mm (possible to change)
Pit depth		1500mm
Each floor height		≥2700mm
Decoration
Cabin		Stainless steel
Cabin wall		Stainless steel
Main landing door		Stainless steel
Other landing door		Painted steel
Floor		PVC /marble
Other requirements		any special reguirement, just let us know

Q2. What is your terms of packing?
A: Generally, we packed our goods by solid wood case,
If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 25 to 30 days after you confirm the elevator (escalator) specification and drawing, and receiving your advance payment.
Q5. Do you test all your goods before delivery?
A: Yes, for elevator,we will assemble the cabin,cabin frame,door operator ,for escalator,we will test to run 72 hours before delivery,at the meanwhile,we will send you many test pictures.
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
