New 7 Lines Fully Automatic Facial Tissue Paper Production Line

Product Description

New 7 lines fully automatic facial tissue paper production line
Outline:

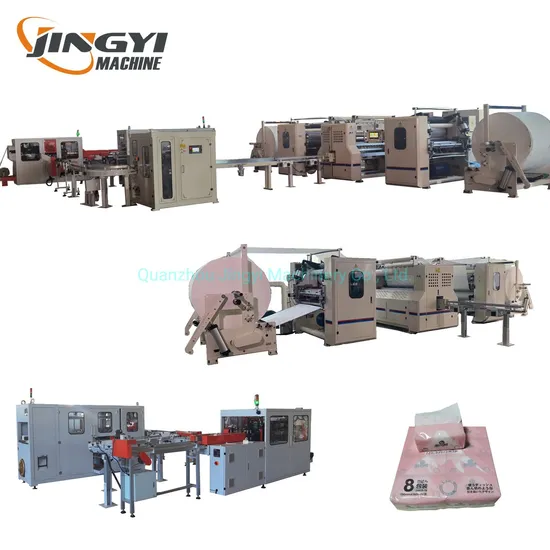

Fully Automatic facial tissue production line is consist of facial tissue folding machine,log saw, single bag packing machine and multi bags packing machine. Machine working smoothly and stable from the raw material to finished products. This production line is of high degree of automation, save labor costs, reduce labor intensity, which is the best choice of the production of tissue products.
1, JY-CS-180/7L V fold Hand towel&Facial Tissue Making Machine with Color Glue Lamination
Main function:
V folding color lamination hand towel machine process paper material after embossing,cut off,interfold become V fold,The products are widely used in hotels, office, kitchen and so on. It's convenient and health.This machine can folding,slitting,counting,with high speed,output orderliness.
Main features:
The paper-breaking knife roller adopts the structure of spiral knife roller, which effectively solves the problems of the stability of the paper-breaking and the service life of the blade.
The structure of the paper-breaking knife roller adopts the structure of the spiral knife roller. The original straight knife is a full-cut type, while the spiral knife roller is a point-cut type, which solves the problems of the instability of the paper break and the short service life of the blade caused by the original straight knife structure.
Main parameters:
Design speed:100m/min
Stable production speed:70-80m/min,or max sub-stacking speed 6-10logs/min
Common jumbo roll width:1400mm
Estimated daily output:about 7.5T/day (Note:jumbo roll is three layers, 15g/m², for 22hours production per day)
Capacity calculation (example of calculation method):
Paper gsm :15gsm, 6 layers, jumbo roll width 1400mm, efficiency coefficient: 65%, production time: 22h, production speed: 70m/min, number of machine: 1 set
Capacity:
70 (m/min)*1.4 (m) *15 (g/m2) *6 (layers) *60 (minute) *22 (hours) *1 (unit)*0.65÷1000000
=7.5 (tons)
Note:The above output calculation is for reference only. The specific capacity is related to the jumbo roll gsm,jumbo roll characteristics, product specifications and the specific conditions of each company.
Jumbo roll layer:2-3layers
Jumbo roll:Straw pulp paper, wood pulp paper, sugarcane pulp paper, bamboo pulp paper and so on.
GSM of jumbo roll:two ply, gsm of each ply is 14-18g/m2 ;three ply,gsm of each ply is 13-15g/m2.
Main machine folding unit

No.	Item	Technical parameters
1	Design speed	100 m/min
2	Stable production speed	70-80 m/min,or max separating and conveying speed 6-10logs/min
3	Finished products unfolded size	180mm(+1,-3)* paper width
4	Finished products folded size	90(+3,-1)* paper width
5	Finished products height	50mm-135mm(folded height, not height after package)
6	Whole machine structure	Wall panel frame type
7	Counting method	Using high-resolution encoder for calculation, counting is 100% accurate
8	Folding unit	Vacuum adsorption folding
9	Folding method	V-shaped staggered folding
10	Folding roller processing method	After quenching and tempering, and using high-precision deep hole processing to ensure the rigidity and strength of each roller, and all of them are processed by CNC machining center, G3.2 level dynamic balance, to ensure the precision requirements of the folding roller during high speed folding
11	Paper broken folding roller	2 paper broken folding rollers, and there are 3 to 4 paper beoken bottom knives evenly distributed on the rollers (the number will change according to different specifications) to ensure the length of each broken paper is 180 (+1, -3) mm, and there are regular vacuum suction holes arranged beside each bottom knife on the roller surface, which is used to adsorb the cut paper and attach it to the roller surface.
12		There are 3-4 paper inserting knives and 3-4 folding V grooves evenly distributed on the rollers (the number will change according to specifications), to ensure the size of paper after folding is 90mm (+3, -1), and there are regularly arranged vacuum suction holes beside each insert knife and the folded V groove on the roller surface, which are used to adsorb the cut paper and attach it to the roller surface.
13	Paper broken bottom knife	All are processed with imported materials, and the bottom knife with suction hole structure to ensure the paper not turn over when breaking at high speed, making the finished product more tidy
14	Paper broken upper knife	All are processed with imported materials, and adopts the design of spiral upper knife to ensure the durability of the upper knife
15	Paper broken method	Overall lifting. There is a spiral blade at the front and back. Spiral paper breaking structure; stable paper breaking and long blades life
16	Paper drag method	Manual
17	Vacuum pipe part	On-site vacuum duct piping and construction are handled by the buyer
18	Machine jog function	Can choose the jog function on machine
19	Machine main motor power	4KW
20	Machine vacuum pump power	22kw
21	Power supply	Three phase, 380V 50Hz
22	Controlling air pressure	24V
23	Compressed air pressure	≥0.6MPa
23	Gas consumption	1000L/shift

2, DHX-150 single Channel log saw cutting machine
The whole machine adopts servo drive technology and frequency control of motor speed and enhance the stability of paper cutting, and improves the cutting precision of tissue and to cut off the end face flat . Cutting length within the scope of the machine allows arbitrary adjustable. Fixed automatic knife grinding wheel Angle, ensure the quality of the sharpening knife. Knife grinding place often blow compressed air for cooling, and can match the special cooling fluid.
Main technical parameters

The length of the none cut off facial tissue	minimum 500mm
The Height of tissue	30~130mm
Design Speed	150cuts/min
operating speed	120cuts/min
Round blade outer diameter	Φ610mm
Finished products specification	70~300mm
Paper width	70~110mm
Cutting Length	70~300mm
Left-over Length	20~65mm
Power	11KW
power supply	380V 50Hz
Air source	0.5~0.8MPa
Machine Size	4600*1700*2500mm
weight of machine	2300~2600kg
brake	Parameter setting (auto/manual)
Stepping sharpening knife	Parameter setting (auto)
Pneumatic sharpening knife	Parameter setting (auto/manual)

3. T80SD Automatic Facial Tissue Packing Machine

Technical Specifications	Description	Remark
Scope of application	Facial tissue, hand towel,napkin tissue
Infeed	ASF Full automatic	Five sections of intelligent flexible feeding mode
Max.design mechanical speed	≤ 80 bags/min	Related to specification of packing
Max. stable speed	65 bags/min	Related to specification of packing
Tissue length range (finished product)	120 mm-210 mm	Over this size can be customized
Tissue height range(finished product)	40 mm-100 mm
Tissue width range(finished product)	90 mm-105 mm
Machine size	L*W*H= 4600 *3620 *1770 mm	Standard size
Machine weight	About 3T
Packing raw material	CPP film
Film Thickness	0.04mm-0.055mm
Max film diameter	400 mm	Over this size can be customized
Film core diameter	76mm	In accordance with international standards
Max film width	340mm	Over this size can be customized
Air pressure	Minimum air pressure 5MPA	Equipped by user
Power supply	380V/50HZ	Following China's electric power standard
Total drive power	4.8 KW	The sum of main motor, servo motor, Sum of speed regulating motor power
Total heating power	4.6 KW	Side seal, side sealing part of heating power combined
Voltage variation	+/-10%	In accordance with international standards
Packing format	Three-dimensional wrap	vertical sealing first and then two side sealing

4, JY-B20T Fully automatic facial tissue bundle packing machine
Machine main advantages TP-B20T automatic tissue bundle packing machine is suitable for automatically bundle packing soft drawn facial tissue, napkin and V fold hand towel paper. Adopt servo control for paper array, paper arrangement, paper advance, paper filling in to bag, bag pulling, bag opening and seal functions. Easy to operate and maintenance. Adopts central vacuum station management mode. Adopts up & down heating mode by heating pipe, sufficient satisfy different kind of packaging material, can ensure good look seal and stable running. Equipped with bag open detect function, air source management function, auto alarm when fault and display function, servo overload protection function. Easy for single/double rows changing, easy to operate and high efficiency. Maximum stable working speed:17 bags/min. Machine main parameter

Basic parameter	Description	Remark
Scope of product	Single film packed tissue product	Bundle packing
Paper feeding mode	ASF intelligent paper feeding
Packing style	1*3,1*4,1*5 2*3,2*4,2*5	Need to be in the total packing range
Design speed	20 bag/min
Stable working speed	16-18 bags/min	Relate to product specification
Bag film installation structure	Dual bag racks
Bag storage quantity	Less than 400 premade bags
Length range	120 mm- 480 mm
Width range	135 mm- 420 mm
Height range	90 mm- 110 mm
Machine dimension	L 3300 mm*W 1400 mm*H1900 mm
Machine weight	About 1900 KG
Premade bag material	CPP,PE film	Thickness≥0.04mm
Compressed air	Pressure≥0.6MPA/Flow≥30L/min	Buyer prepare
Power supply	380V/50HZ
Total motor power	16 KW
Total heating power	2 KW
Voltage wave range	+/-10%	National standard
I/O input(VDC)	24VDC
I/O output(VDC)	24VDC
Machine movement control mode	7 shafts servo positioning control	Servos drive
Machine main transmission mode	Servo motors drive belts
Machine color and craft	Deep grey, static spraying paint craft
Bag type	Same as manually bag with handle and hole
Gusset forming mode	Vacuum mould.
