Innovative Freeze Dryer Machine for Home and Laboratory Use

Product Description

Product Description

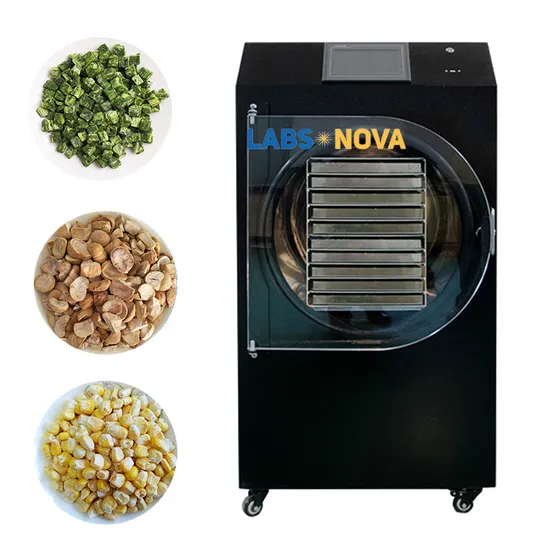

Household-type freeze dryer,
also known as
home freeze dryer, is a compact and efficient vacuum freeze dryer. It is perfect for families and small-scale online shops.
Ideal for freeze-drying a variety of items, it is widely used for preserving fruits, meat, vegetables, Chinese herbal medicines, health products,
and more, ensuring long-lasting freshness and quality.etc. freeze-drying.
Lyophilization or freeze drying is a sophisticated process where water is meticulously removed from a product after freezing.
The frozen product is then placed under a vacuum, which allows the ice to sublimate, turning directly from solid to vapor without
going through a liquid phase. This intricate process involves three essential stages: freezing, primary drying (sublimation), and secondary drying (desorption).
Each stage is unique yet interconnected, ensuring the highest quality and preservation standards.
Product Parameters

Product Model	WK-HF1	WK-HF4	WK-HF6	WK-HF8	WK-HF10
Freeze-dried Area	0.2	0.55	0.6		1.2
Cold Trap Coil Temperature	<-40ºC (no-load)
Ultimate Vacuum	15pa (no-load)
Power Supply	220V 50HZ or110V 60HZ
Power	1100W	1500W	1800W	2200W	2300W
Handling Capacity	1-2KG / batch	4-6KG / batch	6-8kg / batch	15-20kg / batch	15-20kg / batch
Weight	110KG	150KG	175KG	195KG	200KG
Tray NO.	Three layers	Four layers	Four layers	Eight layers	Ten layers
Dimension	400mm x 550mmx 700mm	600mmx 640mmx 900mm	640mm x 710mm x 1200mm	635mm x 723mm x 1300mm	635mm x 723mm x 1300mm

Integrated structure, small size, easy to use, no leakage

Materials in contact with the product meet food grade requirements

The cold trap is made of stainless steel, which is anti-corrosion and easy to clean

With sample pre-freezing function

The cold trap captures ice evenly; strong ice capture ability

International famous brand compressor, which are high efficiency, energy saving, long service life, low noise.

Well-known brand vacuum pump, which are high pumping speed and higher ultimate vacuum.

Intelligently record and export data

1.Marvel at the stylish and compact design that exudes elegance and sophistication, a perfect blend of form and function.
2.Observe the lyophilization process effortlessly through the transparent plexiglass door, ensuring precision at every stage.
3.Crafted with SUS304 stainless steel, our material plate and liner offer unparalleled safety and security.
4.The acrylic door, equipped with a flexible hinge, guarantees a perfect vacuum seal to maintain optimal conditions.
5.High-quality key components are imported to ensure low noise levels, impressive capacity, and superior performance.
6.Experience the ease of touch screen operation with one-button start for full automatic control of the freeze-drying process.
7.Set and adjust the freeze-drying process in real-time with display capabilities for freeze-drying data and curves.
curve can be displayed.
8.Benefit from an advanced system that ensures low operating current and minimizes energy consumption.
9.Enjoy the convenience of one-button fast defrosting technology and over-temperature automatic protection for added safety.
10.Our commercial-grade vacuum pump operates with low noise, and an oilless vacuum pump is also available as an option.
Product Display
Application Field
Company Profile
Zhengzhou Labsnova Technology Co., Ltd.Founded in 2023, we specialize in manufacturing cutting-edge extraction and
distillation equipment, catering to both lab-scale and production-scale needs.Our main product lineup boasts the innovative Freezer Dryer, Rotary Evaporator, Glass Reactor, Heating & Cooling Circulator, and Water
CirculatingVacuum Pump, Vacuum Drying Oven, Low Temp Cooling Liquid Circulating Pump, among many others. Our
products have successfullyreached markets across Asia, Europe, and America. Additionally, we've established a strong presence in most Chinese laboratories.Renowned for quality, Labsnova has emerged as a trusted and popular brand. As a manufacturer, we
offer customizedsolutions tailored to your specific needs. Our exceptional quality and service have led many customers to
make repeated purchases. Furthermore, a significant portion of our standardproducts are readily available in stock and are prepared for prompt shipment.
Related product
FAQ
1. The period, scope and condition of the warranty.(1) We proudly offer a 1-year warranty starting from the date of shipping from China. During this warranty period,
any manufacturing or quality issues will be promptly addressed.We provide full replacement and maintenance services.(2) Any damage caused by transportation will be covered by the seller.2. How to solve any issues with your equipment?Simply send us an email detailing the problem. Including pictures or a short video will be even more helpful.
Our team will diagnose the issue and guide you step-by-step on how to resolve it.If there is a broken part, we will send
you a new one at no cost within the warranty period.3. How are replacement parts shipped?We will choose the most suitable shipping method based on the actual situation. For smaller parts, we use Express shipping.
parts we shippin by Express.4. Do you offer customization services?As a dedicated manufacturer, we are pleased to offer a wide range of customization services tailored to your needs.
