OEM 4in/4inches/4inch/4"/4-Inch Farm Agriculture Irrigation Gasoline Water Pump Small Petrol Gas 9 HP/13 HP/15 HP Engine Power Water Pump
Basic Info.
Model NO.
TG40CX
Driving Type
Gasoline Engine
Material
Aluminum
Structure
Single-stage Pump
Assembly
Booster Pump
Power
Gasoline Engine
Start Up
Recoil/ Electric Start
Type
Blade Pump
Application
Clarified Water Pump
Industry
Agriculture
Media
Water
Performance
No Leakage Pump
Theory
Centrifugal Pump
Size
4 Inch
Gasoline Engine
Centrifugal Pump
Building
Fire Fighting Equipment
Drain
Pool Pump
Farm
Irrigation
Water
Pumps
Pressure
Jet Pump
Engine
Vertical Pump
Forest
Fire Pump
Portable
Gasoline Water Pump Set
Pond
Peripheral Pump
Marine
Bilge Pump
Air Cooled
Gasoline Water Pump
Emergency
Fire Pumps
Sanitary
Sewage Pumps
Transport Package
Carton box
Specification
CE approval
Trademark
CAG
Origin
China
HS Code
8413603990
Production Capacity
100, 000 PCS/Year
Packaging & Delivery
Package Size
65.00cm * 51.00cm * 56.00cm
Package Gross Weight
50.000kg
Product Description

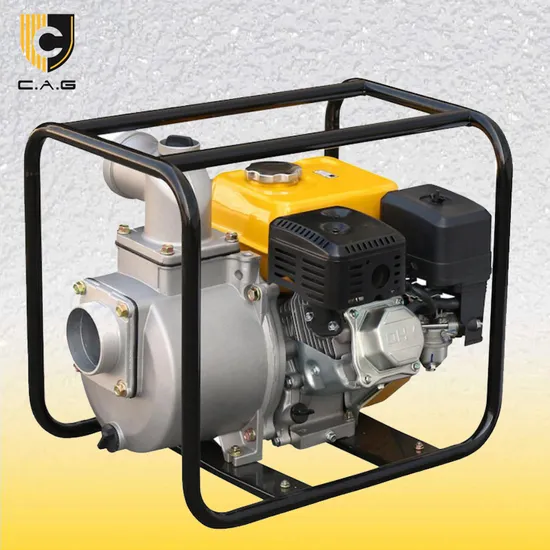

C.A.G's TP40CX 4- inch Gasoline Self-Priming Clean Water Pump is the ultimate pump for water related businesses. The petrol water pump features a C.A.G air cooled, 13HP or 15HP OHV engine powering a 4-Inch centrifugal water pump, making it ideal for remote clear water irrigation. High-end ceramic carbon mechanical seals, cast-iron impellers, and volute are especially suited for heavy-duty applications such as pumping contaminated and abrasive fluids. This C.A.G petrol water pump is ideal for general purpose use such as backyard pools, draining pools, ponds, and sumps of clear water.
Product Description
Small Gasoline Water Pump
| Data for CAG Gasoline Water Pump | |||
| Model | TP40CX | ||
| Inlet and outlet size | 100mm (4″) | ||
| Rated speed | 3,600rpm | ||
| Displacement | 80m³/h | ||
| Pump lift | 25m | ||
| Suction height | 7m | ||
| Engine model | TG390 or TG420 | ||
| Displacement | 269ml | ||
| Engine max output | 13/15@3600(Hp/rpm) | ||
| Fuel volume | 6L | ||
| Bore x stroke | 77×58(mm) | ||
| Compression ratio | 8.5:1 | ||
| Oil volume | 1.1L | ||
| Min fuel consumption | 313g/HP-hour | ||
| Ignition model | transistor magneto | ||
| Start mode | Recoil or Electric | ||
| NW/GW | 47/49(kg)) | ||
| Package dimensions | 650x510x555(mm) | ||
• Equipped with excellent CAG gasoline engine.
• 10% more efficiency,less noise and better emission.
• Optional low-oil shutdown protects the generator.
• Full tubular-frame protection with vibration-damping mounts.
• Optional wheel-kit for easy transport.
• Self-start and remoter start as an optional.
• EU, US , AU and other receptacle for choice.
• Anti-rust cast iron impeller and diffuser.
• Durable silicon carbide mechanical seal.
• Easy to maintain, wide range of applications.
