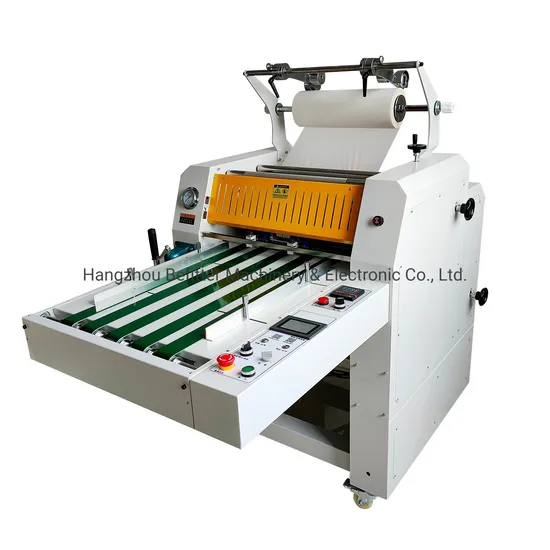

HP-520Z 520mm Semi-Automatic Hydraulic Laminating Machine with Overlap Automatic Separating

Product Description

Product Description HP-520Z 520mm semi automatic hydraulic laminating machine with overlap automatic separating
1.The HP-520Z 520mm Semi-Automatic Hydraulic Laminating Machine with Overlap Automatic Separating is a top-of-the-line laminating machine that boasts a PLC control touch screen display system for easy operation. With its convey belt, manual feed, auto separate (pneumatic separate), and overlap function (the overlap size can be set), this machine is perfect for a variety of laminating needs.
2.The speed and temperature of the machine are adjustable, allowing for customization to meet specific requirements. The hydraulic control system and shockproof pressure indicator ensure that the laminating process is smooth and efficient.
3.The HP-520Z also features a single side anti-curl, with film cutter and perforating cutter, making it a versatile machine for various laminating projects. The heavy-duty 200mm diameter steel roller, and 130mm diameter bottom silicone roller ensure that the laminating process is precise and consistent.
4.The bottom silicone roller is imported and non-sticky, making it highly resistant to high temperatures. This feature ensures that the machine can handle even the most demanding laminating projects with ease.

Product Parameters

Model	HP-520Z
Max laminating width	520mm
Laminating speed	0-15m/min
Up steel roller diameter	200mm
Bottom silicone roller diameter	130mm
Max. heating temperature	160degree
Heating method	Infrared heating by hot air
Heating power	3500W
Motor power	400W
Weight	350kg
Power supply	AC 220,110V/50,60HZ
