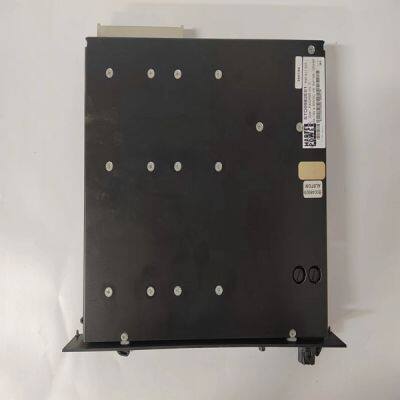

ALSTOM AL132

Product Details

Product Description

Product Description
Brand:ALSTOM
Type:AL132
Origin:the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.
Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,
Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
INPUTS/OUTPUTS BASIC CIRCUIT DIAGRAMS Digital Inputs/Outputs Voltage supply of the digital I/O 24 V DC (18-36 V DC) SELV pursuant to DIN EN 60950-1 Current consumption of the digital I/O 0.3 A in idling; all digital outputs active: 4 A 8 digital inputs and outputs Individually configurable in MACS as input or output. Inputs: type 1 (current-consuming) pursuant to IEC 61131-2 Outputs: max. 0.5 A Sustained short-circuit protection, thermal overload protection Watchdog output: “Outputs enabled“ signal Analog and digital outputs in operation In the event of a fault, the watchdog output goes to a high impedance state Analog Inputs/Outputs Voltage supply to analog I/O Via internal DC/DC converter 8 analog inputs 16 Bit; individually configurable in the MACS software as ±10 V, ±10 mA or 4–20 mA; overvoltage protection up to ±36 V 2 analog outputs 16 Bit; each ±10 V, additionally individually configurable in the MACS software as ±10 mA, ±50 mA or 4–20 mA Overvoltage protection up to ±36 V; short-circuit protected
Reference for Sensors Reference voltage output +10 V; can bear up to max. 5 mA overvoltage protection up to ±36 V; short-circuit protected Sensor Interfaces 2 Sensor interfaces each configurable as a) Incremental encoder b) SSI transmitter Signals corresponding to TIA/EIA 422 (previously RS 422) Wire fault monitoring of inputs Configurable in MACS software: a) Incremental encoder four-edge evaluation, max. pulse frequency 8 MHz b) SSI sensor master or slave data format: gray code or binary; data bits 8 to 32 Bit transmission frequency: 78 kHz to 5 MHz
