Syntec CE Certificate Double Twined Table Moving Two Tables Best 4 Axis 5 Axis Atc CNC Router Milling Engraving Machine for Mould 3D Figurine Sculptures

Product Description

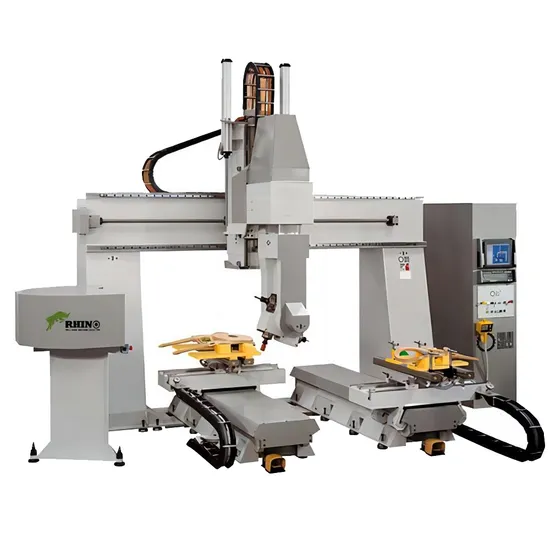

Syntec CE Certificate Table Moving Double Tables Best 5 Axis ATC CNC Router Milling Engraving Machine for Mould 3D Figurine Sculpture
Technical Parameters

Model	RSKM25-D
Double Working size	1200mmx1200mmx800mm
Table size	2580*4550mm
Body structure	Steel structure
Working table	T-SLOT working table and vacuum table for option
X/Y/Z Working accuracy	±0.1mm/±0.05mm
X/Y/Z Repositioning accuracy	±0.1mm/±0.05mm
B/C rotate accuracy	- 60/20 arc sec
Traveling speed	40m/min
Working speed	25m/min
Spindle	Italy HITECO 5 axis air cooling spindle 10KW+
5 axis Head	DEMAS 5 axis head
Spindle rotary speed	0-24000rpm
5 axis part	B axis +-135 degree/C axis +-320 degree
Control system	Taiwan PLC Syntec system 5 axis 610MA-E5
Drive and motor	Syntec brand servo motor drivers
Transmission mode	Gear wheel for XY axis HIWIN30 square rail, ball screw for Z axis HIWIN 30 square rail
Working voltage	AC380V/60HZ&50hz
Command language	G-code,*u00,*mmg,*plt
Cutters	10 pieces with diameter of 6 and 12.7
Collects	16 pieces
Dust collector	Available
Oiling system	Automatic oiling
Machine weight	5000kg-6000kg
ATC	Linear tool changer 12 pieces and 8-20 pcs for your option

Product Description
This is Rhino Syntec CE Certificate Table Moving Double Tables Best 5 Axis ATC CNC Router Milling Engraving Machine for Mould 3D Figurine Sculpture especially working in mini size moulds like aircraft, cars and woodworking products as chairs leg,furnitures etc.
High precision and fast milling speed.DEMAS 5 axis rotate head with 10kw Hiteco water cooling spindle motor professional for all kinds of hard wood,aluminum,plastic,PP,PE,Foam etc Also can make dining table,chairs,cabinets and all types of wooden furnitures.
Now RSKM25-D cnc router 5 axis price for sale.
Our Advantages
Advantages of double table 5 axis cnc milling machine machine RSKM25-D:
1. Double working table with size 1200mmx1200mmx800mm that can alternation working with pair of thread shafts and dual driving electric ball screw to make sure working more stable and milling faster speed to increase working efficiency.
2. Especially Z axis large feeding height 1500mm that allow big block material foam EPS, Wood put on table and milling moulds. More convenient and economic.
3. Our 5 axis cnc center is with RTCP function means this is a real 5 axis cnc machining machine with 5 axis combination working together
4. Our machine structure is more stronger and rigidity--X axis are with 3 rows square rail , Z axis are with 4 rows square rail and Y axis are with 2 rows square rails
5. Machines'bed is stand column and base are cast by good quality steel,and adopt high precision precessing technology. Whole machine is machined by high accurate five sided CNC processing center,keeps good stability,high precision,high tensile strength,static and dynamic rigidity. Whole machine net weight about 5000kg-13000kg
6. Machine table is steel welded T-SLOT with thickness 20mm that kind table not easy deformation for long time use and can load heavy material like aluminum easily .It is professional for metal mold milling.
7. Controlling system adopt man-machine conversation,manual optionand background edit,rich programming function, easy to learn,large capacity of internal storage,diagnostic function if complete,Famous brand Siemens alarm light information display,easy maintenance with pitch compensation, tool compensation function.
8.5 AXIS software with post processer: we offer PowerMill with pen driver together with machine package .Also offer you free training online 7x24 hours.
9. Consider machine big working distance 2000mmx3000mm or more, we have Syntec remote handle for option.
10. Double SMC brand or similar high quality penumatic piston structure in Z axis (balance weight pneumatic tank)along with Spindle motor make sure 5 axis head working more stable and strength.
11.It also are professional for all kinds of 2D,3D,4D,5D molds making like aircraft, cars,boats etc with large size .
12. Diversified processing speed can be controlled like working speed, traveling speed, dropping tool speed, lowering tool speed, greatly improve the quality and efficiency.
13.Intelligent processing cross-border protection function can prevent mechanical collision due to excessive processing of design file.
14. Z-axis travel can be heightened to 1meters(max height can be 2000mm), so that very suitable for processing large-scale three-dimensional surface.
15. The TAIWAN HIWIN PMI35/45 rails with and the Germany original TBI ball screw ensure the accuracy and strength of the mechanical
16. Pneumatic & Automatic linear tool changer magazine with tools 10-20 pcs for your choose. Also the disc tool magazine can be customized
17. HSK65 Tool holder same quantity as tool magazine tools pieces more durable and sturdy,quenched and hardened with higher precision and faster speed.
Application
Application of two tables Machining center 5 axis cnc router machine RSKM25-D:
1. Industrial design: processing design of main models of Aircraft,automobile (1:1 car model), yacht, high-speed railway Multiple unit and other products.
2. Composite materials: fiberglass molds, cutting and trimming of fiberglass products, cutting and trimming of ABS plastic products, processing of wind turbine hoods, and processing of interior components and other products.
3. Mold industry: five axis processing of various non-metallic molds such as wood mold, foam, resin, etc
4. Ceramic bathroom: processing of gypsum molds and various gypsum products
5. Other small parts moulds, molds and high precision metal machine components.

Detailed Photos
Machine detail components:
1. HIWIN/PMI TAIWAN high precision square 2.Italy Water cooled ATC 5 axis CNC Router 10kw 3.Germany Deisgned DAMES 5 Axis head with h
rails with Germany TBI ball screw for Flexibility of application to perform on any type of High precision and fast speed. Long time use
transmission: Z axis 4 row rails, X axis 3 row Materials like EPS,Foan,Fiberglass,Carbon fiber, No need service.
rails, Y axis 2 row rails Wood,Aluminum etc
4. Syntec RTCP 610MA PLC program with 5.Stable and scientific gantry part, easy to install 6. Thick aluminum T-SLOT working table and
SyntecServo motor drivers 1000w-2000w for and have high precision for customers to use Vacuum table for option. Easily to fix materials
option.11kw FULING inverter with stable at local . Like fpam and wood ,aluminum etc.
quality for long time use.
Samples:
Woodeorking products like table chair legs and other office furnitures etc
Other mini size high precision proudcts in wood,foam,metal etc

Certifications
We already gain CE /ISO certificate and get audited supplier from SGS , we all products as 5 axis cnc router, 4 axis cnc router, 3 axis cnc router, laser cutting machine, laser marking machine, laser cleaning machine, laser welding machines can be exported to Europe safely and are popular in all over the world.
Packaging & Shipping
Rhino double table 5 axis cnc router machine package and delivery will be completed under professional workers and guidance of technician, usually it will take 8-10 hours to finish the package and delivery into container.
The main process is :Gantry disassemble
- Y axis supporter disassemble
-Electronic box disassemble
Package and Loading process: We put gantry and head z axis together with Y two sides supporter, then firstly loading into container by forklift
--T-SLOT working table package one set and load into container
-- Electronic box package one set and load into container
--Dust collector package into one set load into container
--Other tools bos and small pieces package one set load into container

Company Profile
FAQ :
Q1, What is software and post processer RhinoCNC will supply together with this 5 axis cnc router ?
A: We have professional Powermill and UG software to help you make design and with their 5 axis post processer to offer to you.
The most popular 5 axis post processer is PowerMill 2017 version with its PM 5 axis post processer.
Q2,If I buy this machine what kind of service I can get:
A:Machine warranty 2 years for free and long life time serice and we have professional engineers who are responsible for service.
We offer online/telephone/email service 7x24 hours.
We have online talking group in WhatsApp and Wechat with engineers and customers
If needed our engineer will go to your factory to install and give you training for this machine
Q3,What information you need to know before I purchase from you?
A:Firstly we need to know the working size you need and what is materials you want to mill and process so that we will offer you the best solution for this 5 axis cnc router machine
Q4,What is the delivery time for this 5 axis wood cnc router RSKM25-H ?
A:Usually we can make it ready within 30 days and need 3-5 days to inspect it perfectly with high accurate and good working performance then can delivery immediately
Q5,How to use this software and can i get training from your side?
A:Yes, we have engineer who work this two softwares so you can come our factory or we send them to your company to give you training
Q6,Could you customized this 5 axis cnc router MACHINE as per our detail requirement?
A:Yes, you give us all your detail requests and we make agreement then start machine productime
Q7, Could you send your engineers to our factory for machine installation and training ?
A:Yes, that is no problem. We have professional engineers who have passport that can go to service to different countries at anytime.
You need to pay the double way ticket and engineer living room,food etc.

Welcome to send us your inquiry and any machine can be customized as per your needs!
We are expecting your news alwasy ~
